TVJ

• Rectangular VAV terminal units for use in ventilation and air conditioning systems
• For controlling, restricting, or shutting off supply and extract air flows
• Closed-loop volume flow control using an external power supply
• For variable or constant volume flow systems
• Shut-off by means of switching (equipment supplied by others)
• Can also be used for duct or room pressure control with suitable control components

• Integral effective pressure sensor with 3 mm measuring holes (resistant to dust and pollution)
• Factory set-up or programming and aerodynamic function testing
• Parameters can also later be set on the control component. Depending on the control component, an additional adjustment device may be necessary

Nominal sizes

• 39 nominal sizes from 200 × 100 to 1000 × 1000
• Not all attachments with fast-running actuators may be available or suitable for all sizes of terminal units.

• TVJ: VAV terminal unit
• TVJ-D: VAV terminal unit with acoustic cladding
• Units with acoustic cladding and/or secondary silencer Type TX for demanding acoustic requirements
• Acoustic cladding cannot be retrofitted

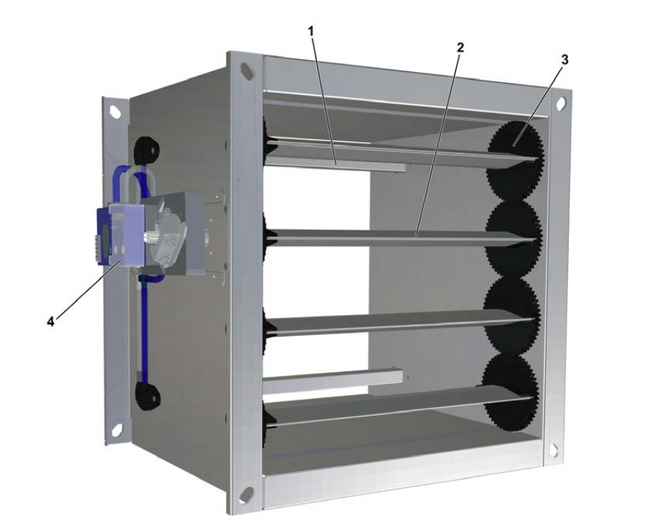

Construction

• Galvanised sheet steel
• P1: Powder-coated, silver grey (RAL 7001)

• Ready-to-commission unit which consists of mechanical parts and control components.
• Averaging effective pressure sensor for volume flow rate measurement
• Damper blades
• Factory mounted control components complete with wiring and tubing
• Aerodynamic functional testing on a special test rig before shipping of each unit
• Set-up data is given on a label or volume flow rate scale affixed to the unit
• High volume flow rate control accuracy

• EASY controller: compact unit consisting of controller with potentiometers, effective pressure transducer and actuator
• Compact controller: compact unit consisting of controller with potentiometers, effective pressure transducer and actuator
• Universal controller: controller, effective pressure transducer, and actuators for special applications
• LABCONTROL: Control components for air management systems

Useful additions

• Secondary silencer Type TX for demanding acoustic requirements
• Heat exchanger Type WT

• Rectangular casing
• Flanges on both ends, suitable for duct connection
• Opposed blade action, blades connected by internal gears at both ends
• Position of the damper blade indicated externally at shaft extension
• Bearings with ring seals

• Casing made of galvanised sheet steel
• Shafts made of galvanised steel
• Damper blades and effective pressure sensor made of aluminium
• Gears made of anti-static plastic (ABS), temperature resistant to 50 °C
• Plastic plain bearings

Powder-coated construction (P1)

• Casing made of galvanised sheet steel, powder-coated

• Acoustic cladding made of galvanised sheet steel
• Rubber seal for the insulation of structure-borne noise
• Lining is mineral wool

• To EN 13501, fire rating Class A1, non-combustible
• RAL quality mark RAL-GZ 388
• Non-hazardous to health thanks to being highly biosoluble in accordance with the Ordinance on Hazardous Substances and Note Q of the European Directive (EC) No. 1272/2008

Standards and guidelines

Casing leakage

• EN 1751, Class B

• EN 1751, Class 1 (B + H ≥ 600 mm)

Maintenance

• Maintenance-free as construction and materials are not subject to wear
