Filter medium, type FMP


FMP

For high dust concentrations or as a prefilter for fine dust filters


Filter media for the separation of coarse and fine dust in supply and extract air for simple applications

  • Filter groups ISO Coarse (coarse dust filter) and ISO ePM10 (fine dust filter)

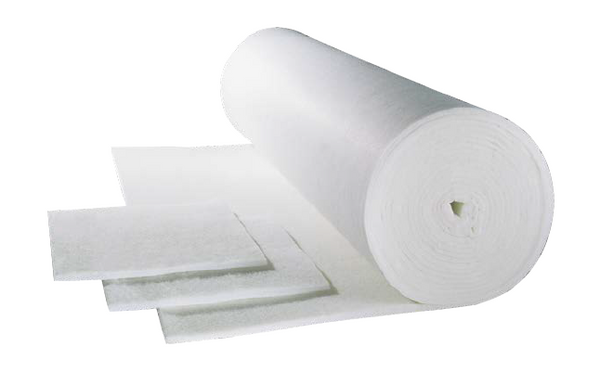

  • Roll media or cut-to-size pads
  • Performance tested to ISO 16890

General information



Application

  • Filter media type FMP for the separation of coarse and fine dust in ventilation systems


Nominal sizes

  • B × L [mm]


Filter classes

Filter groups

  • ISO Coarse acc. to ISO 16890
  • ISO ePM10 acc. to ISO 16890

Filter classes

  • Coarse 35 % (C04)
  • Coarse 45 % (C15)
  • Coarse 45 % (C58)
  • Coarse 50 % (C11)
  • Coarse 50 % (G02)
  • Coarse 60 % (C13)
  • ePM10 55 % (C06)


Media type

  • G02: Glass fibre medium (50 mm thick)
  • C13: Chemical fibre medium (8 mm thick)
  • C58: Chemical fibre medium (8 mm thick)
  • C04: Chemical fibre medium (14 mm thick)
  • C11: Chemical fibre medium (20 mm thick)
  • C15: Chemical fibre medium (20 mm thick)
  • C06: Chemical fibre medium (22 mm thick)


Construction

  • PAD: Cut-to-size filter pads
  • ROL: Roll filter media
  • ROLS: Cut-to-size filter pads


Construction features

  • Glass fibre filter media sprayed with dust binding agent, resulting in increased seperation efficiency and preventing dust carry over
  • Filter media available in standard and special sizes: roll media, cut-to-size filter pads


Material and surfaces

  • Filter media made of glass fibres or chemical fibres

Standards and guidelines

  • Tested according to ISO 16890; international standard for general ventilation and air conditioning; classification of seperation efficiency based on the measured fractional seperaftion efficiency, which is processed into a reporting system for the fine dust separation efficiency (ePM)
  • For coarse dust filters, the average separation efficiency is measured with synthetic dust
  • The filters are classified into filter group ISO Coarse depending on the tested values
  • For fine dust filters, the fractional separation efficiency of a certain size range is determined by aerosols (DEHS and KCl)
  • The filters are classified into filter groups ISO ePM10, ISO

TECHNICAL INFORMATION

TECHNICAL DATA, SPECIFICATION TEXT, ORDER CODE

  • TECHNICAL DATA
  • SPECIFICATION TEXT
  • ORDER CODE

Specification text

Cut-to-size filter pads, type FMP, for the separation of coarse and fine dust in ventilation systems. Available as roll media in special sizes or as cut-to-size pads in standard and special sizes, filter groups ISO Coarse and ISO ePM10 according to ISO 16890. Glass fibre filter media are sprayed with dust binding agent, resulting in increased arrestance and preventing dust carry over.

Materials and surfaces

  • Filter media made of glass fibres or chemical fibres


Construction

  • Filter media made of glass fibres or chemical fibres


Sizing data

  • Filter group [ISO 16890]
  • Separation efficiency [%]
  • Volume flow rate [m³/h]
  • Initial differential pressure [Pa]
  • Nominal size [mm]


FMP Coarse60%C11 /ROL/1000 × 20000
||||||
123456


1 Type
FMP
Filter medium

2 Classification
Coarse
Gravimetric separation efficiency according to ISO 16890
ePM10 Fractional efficiency ePM10 according to ISO 16890

3 Separation efficiency
Specify separation efficiency [%] according to ISO 16890

4 Media type
G02
Glass fibre medium, 50 mm thick
C04 Chemical fibre medium, 14 mm thick
C06 Chemical fibre medium, 22 mm thick
C11 Chemical fibre medium, 20 mm thick
C13 Chemical fibre medium, 8 mm thick
C15 Chemical fibre medium, 20 mm thick
C58 Chemical fibre medium, 8 mm thick

5 Construction
PAD
Cut-to-size filter pads
ROL Filter medium as roll media
ROLS Cut-to-size filter pads

6 Nominal size [mm]
Specify width × length


Order example: FMP-Coarse-50%-C11/ROL/1000×20000
TypeFMP – Filter medium
ClassificationGravimetric separation efficiency according to ISO 16890
Separation efficiency50 %
Media typeChemical fibre medium, 20 mm thick
ConstructionFilter medium as roll media
Nominal size [mm]Width 1000, length 20000

Dimensions

  • Dimensions
