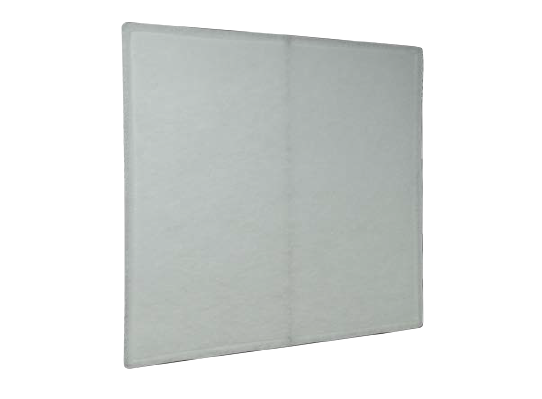

FCF

FOR THE SEPARATION OF COARSE DUST IN VENTILATION AND AIR CONDITIONING SYSTEMS

Filter for separating coarse dust ISO Coarse in ceiling and wall-mounted air conditioning units, fan coil units and air curtain systems.

Filter frame made of galvanised round steel (Ø 5 mm)
Optional stainless steel filter frame (Ø 5 mm)
Optionally with replaceable filter medium (stitched on one side)

General information

Application

For use in fan coil units and decentralised cooling units
For use in ceiling units, wall-mounted air conditioning units and air curtain systems
Filtration of the room air
Separation of coarse dust particles

Special characteristics

Filter medium made of synthetic fibre fleece
Optionally with replaceable filter medium (stitched on one side)

Nominal sizes

B × H × T [mm]

Filter classes

Filter group

ISO Coarse according to DIN EN ISO 16890

Filter classes

Coarse 40%

Construction

GAL: Filter frame made of galvanised round steel (Ø 5 mm)
STA: Stainless steel filter frame (Ø 5 mm)
1: Filter medium stitched on one side
One open side for removal
Filter medium can be detached from the filter frame and replaced
2: Filter medium stitched on both sides
Filter medium cannot be removed from the filter frame

Technical information

gravimetric separation efficiency Coarse [%]	40
Nominal inflow velocity [m/s]	0.944
Initial differential pressure [Pa]	10
maximum end pressure drop [Pa]	40
maximum temperature [°C]	90

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product

Finder design programme.

Specification text

Fan coil filter for separating coarse dust ISO Coarse in ceiling

and wall-mounted air conditioning units, fan coil units and air

curtain systems. Filter medium made of synthetic fibre fleece.

Filter frame made of round steel (Ø 5 mm), optionally made of

stainless steel (Ø 5 mm). Available in standard sizes.

Special characteristics

Filter medium made of synthetic fibre fleece
Optionally with replaceable filter medium (stitched on one side)

Construction

GAL: Filter frame made of galvanised round steel (Ø 5 mm)
STA: Stainless steel filter frame (Ø 5 mm)
1: Filter medium stitched on one side
One open side for removal
Filter medium can be detached from the filter frame and replaced
2: Filter medium stitched on both sides
Filter medium cannot be removed from the filter frame

FCF	–	Coarse	–	40%	–	GAL	/	300 × 250	/	1
\|		\|		\|		\|		\|		\|
1		2		3		4		5		6

1 Type

FCF Fan Coil Filter

2 Classification

Coarse gravimetric separation efficiency according to DIN EN

ISO 16890

3 Separation efficiency

40%

4 Construction

GAL Filter frame made of galvanised round steel

STA Stainless steel filter frame

5 Nominal size [mm]

Specify width × height

6 Filter medium

1 Filter medium stitched on one side

2 Filter medium stitched on both sides

Downloads

product information

Product data sheet FCF

FCF_PD_2025_12_17_DE_en Product data sheet 260 KB pdf
