FAM-E

Application

The Field Application Module-Ethernet (FAM-E) is part of the TROX Ox System platform and the higher-level control unit in the field for various applications. The applications are distributed in  the field. This decentralised approach increases the operational reliability of the system. FAM-E sends the data collected in the field to the central management and visualisation point - the System Controller (SC). Transmission takes place via a structured Ethernet connection with standard IP network protocols. FAM-E has 2 Ethernet interfaces for connection to the system controller. These interfaces allow daisy-chain wiring of up to 5 Ethernet-capable field devices with switch function. This reduces the wiring effort and the number of switch connections. On the field side, FAM-E has various communicative, analogue and digital interfaces to fulfil its control and regulation tasks. Numerous components certified by TROX can be connected to it. These include volume flow controllers, sensors, heating and cooling valves, fire and smoke protection modules and a room control unit. FAM-E processes the applications that can be selected to fulfil its control and regulation tasks. The applications required for the project requirements can be customised from a list of all available applications.

Variants

• FAM-E TUH, in TROX UNIVERSAL housing

Parts and characteristics

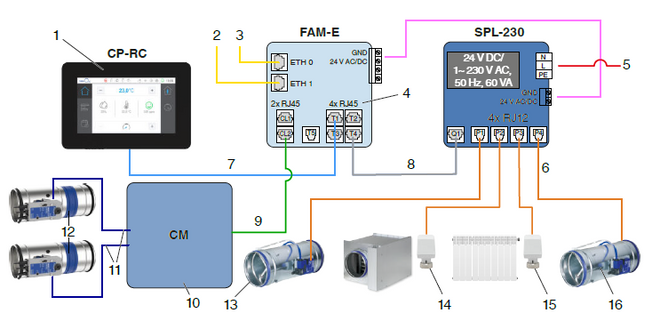

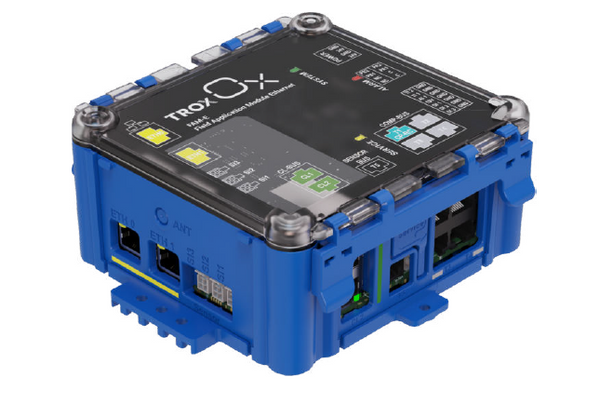

TROX UNIVERSAL enclosure

• Plastic housing for attachment to the duct or for wall mounting
• Removable cover for easy access to internal connections and components
• Transparent cover: direct visibility of the status LEDs in the housing for quick, easy visual diagnostics

General characteristics

• 2 RJ45 connection sockets with switch function for
• Ethernet connection:
• Transmission rate 100 Mbit
• For 5 FAM-E in daisy-chain wiring
• With RJ45 connection socket for a service tool and the CP RC room control panel
• Direct access from outside:
• With service tool via service socket
• Or via connected CP-RC control panel
• 4 communication interfaces:
• 3 × RJ45 connection socket for TROX actuators and sensors with TROX-xxx
• 1 × RJ45 connection socket for supply voltage and service access as well as for TROX actuators and sensors with TROX-xxx
• Communication interfaces including plug-and-play detection of the connected components (xxx brand name for our RS485 interface, to which only TROXcertified components can be connected?)
• 1 × communication input on RJ12 connection socket for connecting TROX sensors with RJ12 plug
• 2 × input communication line (CL) for internal modules such as CM or FAM on RJ45 connection socket including plug-and-play detection of the connected components
• 2 × temperature measurement input PT1000
• 2 × PWM output (pulse width modulation) for thermoelectric actuators
• 3 × potential-free digital input
• 2 × analogue input 0 - 10 V DC
• 1 × voltage output 10 V DC
• 1 × potential-free changeover contact

Useful additions

• Ethernet Switch
• Splitter 24 V DC
• Splitter 230 V AC
• Actuators
• Sensors
• VAV controllers
• Control signals such as window contact, PIR sensor

Further information on approved components TROX Ox

Construction features

• Simple connection of the components using plug-in connections without opening the casing, can be connected from the outside
• Easy access to the service socket from the outside of the casing

Material and surfaces

• Casing made of ABS plastic UL-V0
• Blue casing (RAL 5002), cover colourless, transparent
