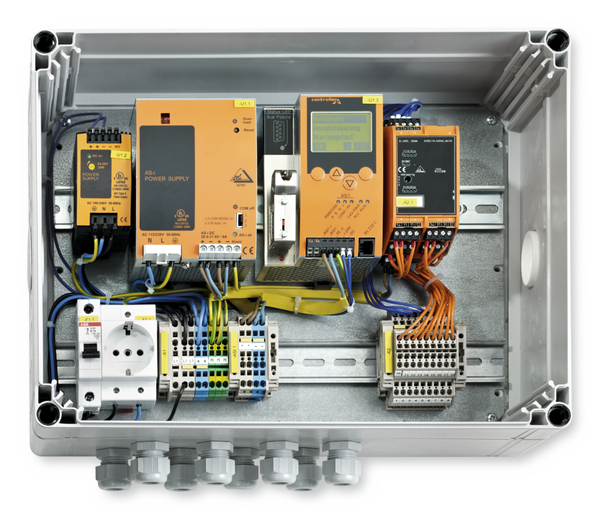

TNC-SVC02DPR (Example)
00133489_0

TNC-SVC0*MB*

Pre-configured modular base station for the rapid implementation and adjustment of control systems

Pre-configured modular base station with power supply units, relays and controllers, for the rapid implementation and adjustment of control systems

  • Space saving, compact design
  • All components are already wired to rail mount terminals
  • Quick, error free assembly and installation
  • Robust design
  • With TROXNETCOM Basic User Software for rapid and safe commissioning and configuration
  • Integral display, also for operation

Application

Application

  • Pre-configured AS-i base stations for controllers with a master for 31 AS-i participants (TNC-A1353), an AS-i power supply unit TNC-A1256 = 2.8 A or TNC-A1258 = 8 A and switching power supply unit (TNC-D1020), and one or two additional relay modules (TNC-Z0094)
  • Installed and wired to rail mount terminals
  • Plastic casing, free of halogens, with transparent cover
  • Communication interface to higher level systems (Modbus)
  • With TNC Basic User Software for fire and smoke protection

Technical information

  • Function
  • Technology
  • Specification text
  • Order code

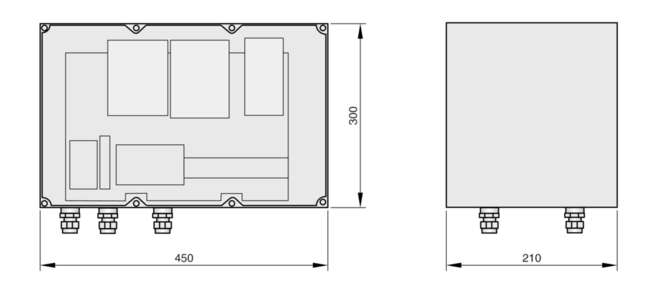

AS-i pre-configured switch boxes TNC 00134233_0

DescriptionTNC-SVC01MB, -02MB, -01MBR, -02MBR, -01MBRR, -02MBRR
Casing dimensions (B × H × T)450 × 300 × 210 mm
Casing materialPlastic, free of halogens, with transparent cover
Wired componentsTNC-SVC01MB: 1 × TNC-A1353; 1 × TNC-A1256, 1 × TNC-D1020; TNC-SVC02MB: 1 × TNC-A1353; 1 × TNC-A1258, 1 × TNC-D1020; TNC-SVC01MBR: 1 × TNC-A1353; 1 × TNC-A1256, 1 × TNC-D1020, 1 × Z0094; TNC-SVC02MBPR: 1 × TNC-A1353; 1 × TNC-A1258, 1 × TNC-D1020, 1 × Z0094; TNC-SVC01MBRR: 1 × TNC-A1353; 1 × TNC-A1256, 1 × TNC-D1020, 2 × Z0094; TNC-SVC02MBRR: 1 × TNC-A1353; 1 × TNC-A1258, 1 × TNC-D1020, 2 × Z0094
Mains supply230 V AC, 50 Hz
Max. power consumptionTNC-SVC01MB, -01MBR, -01MBRR: 0.15 KW; TNC-SVC02MB, -02MBR, -02MBRR: 0.3 KW
Pre fuse20 A
Protection levelIP 65


Standard description (characteristics)

Switch box 'Controller and power unit'

  • Dimensions: 450 × 300 × 210 mm
  • Casing materials: Plastic, free of halogens, with transparent cover
  • Components: installed and wired to rail mount terminals
  • Cable glands: M20 with clamping bracket for mains cable, AS-i bus cable and network cable
  • PROFIBUS DP connector
  • European 'Schuko' socket for programming device
  • Circuit breaker: 16 A
  • Mains supply: 230 V AC, 50 Hz
  • Pre fuse: 20 A
  • Controller: TNC-A1353 Modbus with Basic User Software, 1 master
  • Switching power supply unit: TNC-D1020 = 1.3 A
  • Power supply unit: TNC-A1256 = 2.8 A (TNC-SVC01MB, - 01MBR*, -01MBRR*) or TNC-A1258 = 8 A (TNC-SVC02MB, -02MBR*, -02MBRR*) (*no. of relay modules)
  • Make: TROX GmbH or equivalent
  • Type: TNC-SVC0*MB*

00224513_0

 Type
TNC-SV       Configured switch cabinet

 Type of base station
R       Repeater
C       Controller
D       Display



 Components
       Repeater (R)
01       1×TNC-A2225, 1×TNC-A1256
02       1×TNC-A2225, 1×TNC-A1258
       Controller (C)
01DP       1×TNC-A1305, 1×TNC-A1256, 1×TNC-D1020
02DP       1×TNC-A1305, 1×TNC-A1258, 1×TNC-D1020
03DP       1×TNC-A1306, 2×TNC-A1256, 1×TNC-D1020
04DP       1×TNC-A1306, 2×TNC-A1258, 1×TNC-D1020
01MB       1×TNC-A1353, 1×TNC-A1256, 1×TNC-D1020
02MB       1×TNC-A1353, 1×TNC-A1258, 1×TNC-D1020
03MB       1×TNC-A1354, 2×TNC-A1256, 1×TNC-D1020
04MB       1×TNC-A1354, 2×TNC-A1258, 1×TNC-D1020
       Display (D)
TP043       1×TP043N, 1×TNC-D1030
TP057       1×TP057N, 1×TNC-D1030
TP104       1×TP104N, 1×TNC-D1030
TP121       1×TP121N, 1×TNC-D1030

 Relay module
       For controllers only (C)
       No entry: no relay module
R       1×TNC-Z0094
RR       2×TNC-Z0094



Downloads

product information
