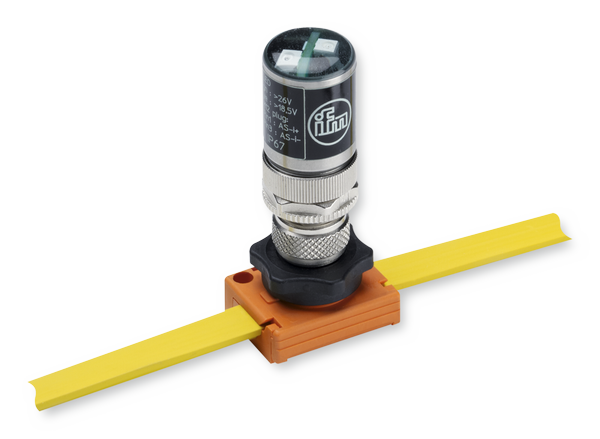

Passive bus termination with flat cable connector to make a connection to the AS-i flat cable. Bus termination to improve the signal quality and to extend the AS-i cable network Cable extension up to 200 m

Controller for controlling actuators and for monitoring the damper blade position and duct smoke detectors

  • Controller with TROXNETCOM Basic User Software
  • Easy and safe commissioning without programming
  • Controller with master function for stand-alone operation
  • System monitoring
  • Automatic recognition of components and their status
  • Menu-driven user interface (controller display) for system configuration
  • Peripheral equipment can be tested without additional auxiliary equipment

Application

Application

  • Passive bus termination
  • Cable extension up to 200 m without additional repeater
  • Improved signal quality
  • Supply voltage monitoring with 2 LEDs
  • Connection to AS-i cable with flat cable connector
  • Can only be used when actuators have a separate voltage supply

Technical information

  • Function
  • Technology
  • Specification text
  • Order code

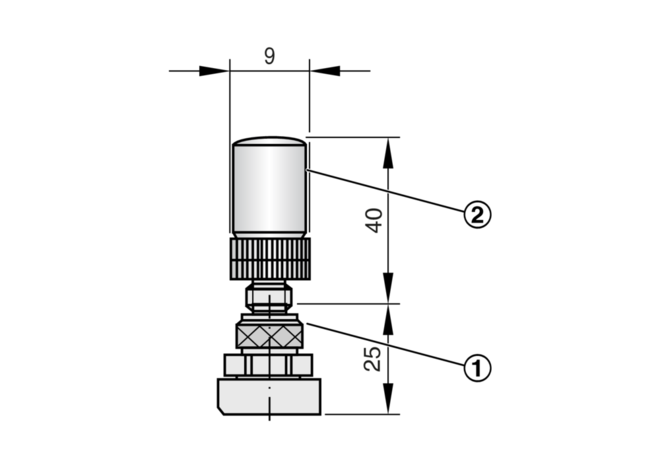

AS-i passive bus termination TNC-Z0119 00132721_0

① TNC-70096
② TNC-A1147

DescriptionTNC-Z0119 (TNC-A1147 + TNC-70096)
TypeTNC-A1147
Supply voltage26.5 – 31.6 V DC
Current consumption< 10 mA
Galvanically isolatedYes
Status LEDYellow = AS-i voltage > 18.5 V; green = AS-i voltage > 26 V
Ambient temperature–25 to 70 °C
Protection levelIP 67
MTTF550 years
ConnectionFlat cable insulation displacement connector
NoteNo addressing required
TypeTNC-70096
Max. current load2 A
Ambient temperature–25 to 75 °C
Protection levelIP 67
Casing materialPA
NoteNo addressing required


Standard description (characteristics)

Passive bus termination (TNC-A1147) with flat cable connector (TNC-70096) to make a connection to the AS-i flat cable. Bus termination to improve the signal quality and to extend the AS-i cable network Cable extension up to 200 m.

  • Supply voltage: 26.5 – 31.6 V DC
  • Current consumption: < 10 mA
  • Max. current load: 2 A
  • Ambient temperature: –25 to 70 C°
  • Protection level: IP 67
  • Make: TROX GmbH or equivalent
  • Type: TNC-Z0019

00131013_0


 Component
TNC-A1305       Controller with PROFIBUS DP interface; 1 master
TNC-A1306       Controller with PROFIBUS DP interface; 2 masters
TNC-A1353       Controller with Modbus/TCP interface; 1 master
TNC-A1354       Controller with Modbus/TCP interface; 2 masters
TNC-A1375       Gateway with PROFIBUS DP interface; 1 master
TNC-A2225       Repeater
TNC-ZB0252       AS-i safety gateway
TNC-Z0119       Passive bus termination
TNC-A1146       AS-i tuner (diagnosis module)
