00133076_0
TNC-A1145
00133076_0

TNC-A1145

LOCAL DIAGNOSIS OF THE AS-I NETWORK, CREATION OF TEST REPORTS FOR AS-I NETWORKS, DIAGNOSIS AND EVALUATION USING THE CONNECTED PC

Compact device for addressing slaves and writing slave parameters

  • Display of all slaves on a bus
  • Reading and writing slave data and slave parameters
  • Reading of safety codes (AS-i Safety at Work)
  • Connection of different modules using a universal adapter

Application

Application

  • Passive AS-i participant as an interface for AS-i system analysis with a PC
  • Slave lists as system overview
  • Slave data (inputs and outputs)
  • Configuration data for the connected slaves
  • Communication error statistics
  • Complete message evaluation in expert mode

Technical information

  • Function
  • Technology
  • Specification text
  • Order code
AS-i adjustment and diagnosis device TNC-A1145 00106543_0..

DescriptionTNC-A1145
Rated operating current70 mA
Ambient temperature0 – 55 °C
MTTF280 years
EMCEN 50081-2; EN 61000-6-2
AS-i version2.1
ControlsLED green (power): Supply voltage OK; LED green (serial active): RS232 interface being used; LED green/red (test): test mode
InterfacesAS-i; RS-232 (PC connection); trigger input (24 V); trigger output (TTL)
System requirementsIBM-compatible PC with Pentium processor or higher; Windows version 95/98/ME/NT4/2000/XP


Standard description (characteristics)

  • Local diagnosis of the AS-i network
  • Creation of test reports for AS-i networks
  • User-friendly diagnosis and evaluation using the connected PC
  • Rated operating current: 70 mA
  • Ambient temperature: 0 – 55 °C
  • Make: TROX GmbH or equivalent
  • Type: TNC-A1145

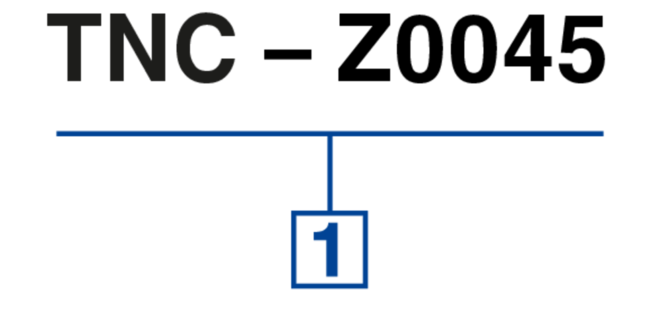

00137444_0


 Component
TNC-Z0045 Addressing device
TNC-A1145       AS-i system tester
