Plenum box shorter than diffuser face, central position, with horizontal spigot


New design possibilities with white, grey and black air control blades

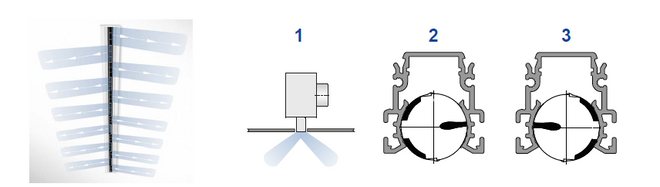

Alternating horizontal air discharge

Horizontal air discharge






Angled airflow

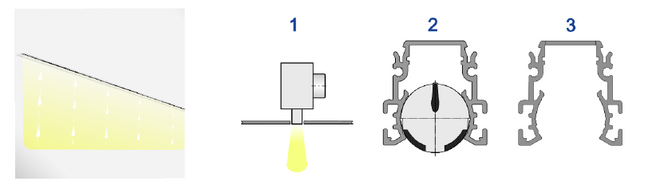

Vertical airflow


PURELINE35

THE CLEAN SOLUTION FOR SIGNIFICANTLY LESS CEILING CONTAMINATION

Perfectly integrable slot diffuser with sleek appearance – for discreet installation

in the suspended ceiling

  •  Very high comfort due to lower sound power levels and improved temperature and speed reduction
  •  Improved energy efficiency due to lower pressure losses
  • Simple and fast installation – tool-free fastening of the front rail
  • New areas of application – including as air curtains for food counters
  • High flexibility thanks to numerous standard variants


Updating order code
Save configuration
Calculate price
Updating technical data
  • Media
Specification text:
Updating specification text
Show complete text Hide complete text
Initialize order code

General information

Application

  • Type PURELINE35 slot diffusers are used as supply air or extract air devices in comfort zones




  • The many variants allow for flexible use as mixed ventilation systems and make them suitable for various applications




  • Unobtrusive integration into suspended ceilings




  • For room heights up to 4 m (lower edge of suspended ceiling)




  • Suitable for large volume flow rates. Thanks to the option of 1-4 slots, the scope of application is wide-ranging.




  • One-way or alternating air discharge can be adjusted on site to meet local requirements




  • High induction results in a rapid reduction of the temperature difference and airflow velocity (supply air variant)




  • For variable and constant volume flows




  • For supply air to room air temperature differences from –10 to +10 K



Special features

  • Uniform air pattern reduces contamination of the ceiling due to induced room air




  • Comfortable indoor climate due to high induction and rapid reduction of temperature differences and airflow velocities




  • Attractive appearance due to extruded aluminium sections with anodised finish or powder coating (RAL CLASSIC colour)




  • Diffuser face has been optimised for maximum volume flow rate at low sound power levels




  • Suitable for continuous linear arrangement



Nominal sizes

  • LN: 600, 750, 900, 1050, 1200, 1350, 1500, 1650, 1800, 1950 mm




  • Diffuser face can be ordered in mm increments, also in intermediate lengths



Variants

PL35-... :





  • -*: 1 to 4 slots




  • -PF: Combination of diffuser face and plenum box with fixed connection




  • -SF: Combination of diffuser face and plenum box with detachable screw fixing




  • -PB: Plenum box only (for combination with DS)




  • -DS: Only diffuser face with extended border and screw fixing




  • -DF: Only diffuser face with extended border and spring clip




  • -CD: Air transfer section that can be integrated into linear runs. On the reverse side of the diffuser face, there are openings for the air to flow through. The air transfer section has to be fastened by others. The connectors supplied are only used to position and align the air transfer sections.




  • -BD: Non-active section that can be integrated into linear runs. The diffuser face is connected on the reverse side so that air is prevented from flowing through the non-active section. The non-active section has to be fastened by others. The connectors supplied are only used to position and align the air transfer sections.




  • -CS: Corner section




Position of the plenum box on the diffuser face, if the plenum box is shorter than the diffuser face





  • Central position of plenum box




  • Plenum box on the left (LE)




  • Plenum box on the right (RI)




Plenum box variant





  • Symmetrical plenum box with horizontal connection (HS)




  • Symmetrical plenum box with vertical connection (VS)




  • Asymmetrical plenum box with horizontal connection (HA)



Construction



Diffuser face finish





  • With anodised finish, E6-C-0, natural colour




  • P1: Powder-coated RAL 9010, pure white, GE50




  • P1: Powder-coated RAL 9006, white aluminium, GE30




  • P1: Powder-coated in other RAL CLASSIC colours, GE70 (no luminous colours)



Accessories



****not referenced, see below




Accessories

  • EP: Two end plates




  • EA: Two end angles




For a continuous linear arrangement, the end plates or end angles have to be ordered separately and fitted by others. 2 alignment plates for connecting the slot diffusers to each other are supplied separately with each slot diffuser without a factory-fitted end piece.




Materials and surfaces



  • Diffuser face made from extruded aluminium sections




  • Air control elements made of ABS plastic, UL 94, V-0, flame retardant




  • Plenum box made of galvanised sheet steel




  • End plates and end angles made of aluminium




  • Lip seal made of Evoprene




  • Lining of mineral wool and closed cell vinyl foam




  • Diffuser face with anodised finish, E6-C-0, natural colour




  • P1: Powder-coated, RAL CLASSIC colour




  • Air control elements similar to RAL 9005, black




  • G: Air control elements similar to RAL 9006, grey




  • W: Air control elements similar to RAL 9010, white




  • Mineral wool




  • Mineral wool faced with glass fibre fabric on the surfaces in contact with the air, abrasion-resistant up to 20 m/s




  • To EN 13501, fire rating class A1, non-combustible




  • RAL quality mark RAL-GZ 388




  • Non-hazardous to health thanks to being highly biosoluble in accordance with the Ordinance on Hazardous Substances and Note Q of the European Directive (EC) No. 1272/2008




  • Inert to fungal and bacterial growth



Standards and guidelines

  • Sound power level of the air-regenerated noise measured according to EN ISO 5135




  • Compliant with VDI 6022



Maintenance



  • Maintenance-free as construction and materials are not subject to wear




  • Inspection and cleaning to VDI 6022


Description

Variants

  • PL35-*: 1 to 4 slots
  • PL35-*-DF: Diffuser face only
  • PL35-*-DS: Diffuser face with extended border (B00) and screw fixing
  • PL35-*-PB: Plenum box only
  • PL35-*-PF: Diffuser face and plenum box, non-detachable fixing
  • PL35-*-SF: Diffuser face and plenum box, detachable fixing
  • PL35-*-CS: 90° corner section

Position of plenum box if combined with a slot diffuser

  • Central position
  • On the left (LE)
  • On the right (RI)

Plenum box variant

  • Symmetric position of plenum box, side entry spigot (HS)
  • Symmetric position of plenum box, top entry spigot (VS)
  • Asymmetric position of plenum box, side entry spigot (HA)


Attachments

  • D: Damper blade for volume flow rate balancing




  • LS: Lip seal




  • L: Internal lining




  • EP: Two end plates




  • EA: Two end angles




Single diffusers are factory fitted with end plates or end angles. Either end plates or end angles can be used as the end piece.




Attachments

  • D: Damper blade for volume flow rate balancing
  • LS: Lip seal
  • L: Internal insulation
  • EP: Two end plates
  • EA: Two end angles

Single diffusers are factory fitted with end plates or end angles.


Construction features

  • Spigot suitable for circular ducts to EN 1506 or EN 13179
  • 4 suspension points for on-site installation (by others)
  • The manually adjustable air control elements have grooves that make it easier to adjust the elements and lock them in the required position
  • Spigot with groove for lip seal (if accessory with lip seal has been ordered)
  • Diffuser face sizes from 600 to 1950 mm, in increments of 1 mm
  • Plenum boxes are only available in nominal lengths


Materials and surfaces

  • Diffuser face made from extruded aluminium sections
  • Air control elements made of ABS plastic, UL 94, V-0, flame retardant
  • Plenum box made of galvanised sheet steel
  • End plates and end angles made of aluminium
  • Lip seal made of rubber
  • Lining is mineral wool with vinyl closed cell foam
  • Diffuser face with anodised finish, E6-C-0, natural colour
  • P1: Powder-coated, RAL CLASSIC colour
  • Air control elements similar to RAL 9005, black
  • G: Air control elements similar to RAL 9006, grey
  • W: Air control elements similar to RAL 9010, white

Mineral wool

  • Where the mineral wool comes into contact with air, it is faced with glass fibre fabric as a pection against abrasion due to airflow velocities up to 20 m/s
  • To EN 13501, fire rating class A1, non-combustible
  • RAL quality mark RAL-GZ 388
  • Biosoluble and hence hygienically safe according to the German TRGS 905 (Technical Rules for Hazardous Substances) and EU directive 97/69/EC
  • Inert to fungal and bacterial growth


Standards and guidelines

  • Sound power level of the air-regenerated noise measured according to EN ISO 5135


Nominal sizes

  • LN: 600, 750, 900, 1050, 1200, 1350, 1500, 1650, 1800, 1950 mm
  • Diffuser face also available in intermediate sizes


Technical information

Funktion, Technical data, Quick sizing, Specification text, Order Code

  • FUNCTION
  • TECHNICAL DATA
  • QUICK SIZING
  • SPECIFICATION TEXT
  • ORDER CODE
Schematic illustration of PL35-*-SF PL35_gc_20ai.png

① Diffuser face, with 1, 2, 3 or 4 slots

② Adjustable air control element

③ Screw fixing

⑥ Neck

⑦ Plenum box

⑧ Suspension bracket

⑨ Spigot





Optional

④ End plate

⑤ End angle

⑩ Lip seal

⑪ Damper blade for volume flow rate balancing

Functional description

Slot diffusers direct the air from air conditioning systems into the room, either horizontally, at an angle or vertically.

The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air.

The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.

Type PureLine35 slot diffusers are factory fitted with manually adjustable air control elements.

The air pattern can be adjusted to meet different local requirements.

Air discharge is one-way or alternating horizontal.

Other patterns: heating mode with vertical air discharge; angled air discharge.

The supply air to room air temperature difference may range from –10 to +10 K.

A damper blade (optional) simplifies volume flow rate balancing for commissioning.

To give rooms an aesthetic, uniform look, PureLine35 diffusers may also be used for extract air.

Nominal length600 – 1950 mm, in increments of 150 mm
Number of slots1, 2, 3 or 4
Neck extension30, 55, 80, 105, 129
Minimum volume flow rate, with ∆tz = –10 K7 l/s or 27 m³ /h
Maximum volume flow rate, with LWA ≅ 50 dB(A)197 l/s or 709 m³ /h
Supply air to room air temperature difference–10 to +10 K

Quick sizing tables provide a good overview of the volume flow rates and corresponding sound power levels and differential pressures.

Exact values for all parameters can be determined with our Easy Product Finder design programme.

Up to nominal length 1500 mm, sizing includes one spigot; from length 1650 mm, two spigots are required.

PL35-1, supply air, alternating horizontal air discharge, sound power level and total differential pressure
Nominal lengthqᵥqᵥDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade position
Nominal lengthqᵥqᵥ45°45°45°45°90°90°90°90°
Nominal lengthqᵥqᵥD = 98D = 98D = 123D = 123D = 98D = 98D = 123D = 123D = 98D = 98D = 123D = 123
Nominal lengthqᵥqᵥΔptLWAΔptLWAΔptLWAΔptLWAΔptLWAΔptLWA
Nominal lengthl/sm³ /hPadB(A)PadB(A)PadB(A)PadB(A)PadB(A)PadB(A)
6007273<153<154<153<157<154<15
6001760142812252128152632291926
6002693334029374940353876414638
600351266148524690486446139498446
7509334<153<156<154<159<155<15
7501970142811262329152638302127
75029106313925375240333787414838
750391425647454592486045156498646
90011404<153<157<154<1512<156<15
9002279142911262529152745302327
900331183139243756403438100415138
900441575547414599485945177499046
105013475<153<158<155<1515<158<15
10502488152911262930162753312628
1050361293139223761403438113415538
10504717054473944106485945197499646
120015535<154<1510<156<1519159<15
12002796162911273231172862322928
1200391403240223767413638129426138
120051183554737441154861452214910446
135017606<154<1512166<15241711<15
135029105173011273731192871323329
1350421503440223774413838145426639
135054195574736441254864452454911246
150018677164<1515177<15281813<15
150031113183011284132202881333729
1500441603640223781414038161427239
150057206594736441354866452684912046
165020734<153<156<154<1510<156<15
16503813612309272030132835311828
165055198254019374241263873423939
1650732614247334573484545126496746
180022804<153<157<154<1512156<15
18004014412309272131132838321929
180058209244019374441263878424039
1800762734247314575484545134496846
195024864<153<158165<1513167<15
19504215312309282331132841322129
195061219254018374641273884424239
1950792854147304578484545142497146
PL35-2, supply air, alternating horizontal air discharge, sound power level and total differential pressure
Nominal lengthqᵥqᵥDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade position
Nominal lengthqᵥqᵥ45°45°45°45°90°90°90°90°
Nominal lengthqᵥqᵥD = 123D = 123D = 138D = 138D = 123D = 123D = 138D = 138D = 123D = 123D = 138D = 138
Nominal lengthqᵥqᵥΔptLWAΔptLWAΔptLWAΔptLWAΔptLWAΔptLWA
Nominal lengthl/sm³ /hPadB(A)PadB(A)PadB(A)PadB(A)PadB(A)PadB(A)
60015534<154<156<155<1511<158<15
60028102132812272129172739302928
60042150283927384440373885416239
6005519949474645774864461484910947
75018674<154<157<156<1515<1511<15
75033118122911272230182847313329
75047170253923374540363897416839
7506122142473945774860461654911647
90022805<154<159167<1521181415
90037134123011282531192957323930
900521882339213749403738112427740
9006724239463445804861461864912747
10502693517415111881627201818
105041149123011282832213068334631
1050572042339203752413839127428640
10507226036463144844762452064913847
1200301066195171420101834222320
120045163123111293132233079345332
1200612202239193757414139144439640
12007727735463044904764452284915147
1350331206205181622122042242821
135049177133111293533253192356033
13506523522391837614143391604310641
13508129234452844954766452484916347
1500371337226201924142151253423
1500531911432113039342732105366933
15006924923391838674146391784311641
150085307344527431014770452714917747
16504114641741681961718201318
165065233113110292032163045333131
165089320194018383841293984425840
16501134073146284560484746135499447
18004416051941792071821211419
18006924811319292132163049343432
180093337194017383941303990426240
18001184253046274562484746143499847
195048173520418102181924221620
19507326211319302333173154343732
195098352184016384041303996436540
195012344129462544634747451514910247
PL35-3, supply air, alternating horizontal air discharge, sound power level and total differential pressure
Nominal lengthqᵥqᵥDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade position
Nominal lengthqᵥqᵥ45°45°45°45°90°90°90°90°
Nominal lengthqᵥqᵥD = 138D = 138D = 158D = 158D = 138D = 138D = 158D = 158D = 138D = 138D = 158D = 158
Nominal lengthqᵥqᵥΔptLWAΔptLWAΔptLWAΔptLWAΔptLWAΔptLWA
Nominal lengthl/sm³ /hPadB(A)PadB(A)PadB(A)PadB(A)PadB(A)PadB(A)
60022805<155<158<156<15151610<15
60039140152813262430192744323129
60055199293827364840383789426239
6007225949464544814763451514910446
750281006165<15101881521201417
75044160142912272631192853333530
750612212638233649403637100426639
7507828142453743794758441614910646
90033120619516132191828231820
90050180143012282932213063354032
900662392438203651403638111437140
9008329938443142804756441734911046
1050391407216191624112137262323
105055198143112293333223174364633
1050712572338193655413738123437740
10508831635442842824756441864911646
1200441608237212026142347282925
120060216153212293735243285375334
1200762732338183658413938136448441
12009233034442641854656441984912246
1350501809257232528162558313628
135065234163312304136273399386035
1350802892339183663424139150449141
13509634433432541894657432124912946
15005520011278242930192771334329
1500702521633123146373034112396836
1500843042439183667424339163459941
15009935632432441924659432244913546
165061220622520122492224261623
165086309123210302334173148363133
1650111399193916373841273879435140
16501364892845244256474144118497746
180067240623521132692328281825
180091328123210302435173252373334
1800116417183916373941273984445441
18001405052744234257474044123497946
1950722597256221527102432292026
195096346123310312635183257383635
1950120432183915374041283989445641
19501445192644214258474044128498146
PL35-4, supply air, alternating horizontal air discharge, sound power level and total differential pressure
Nominal lengthqᵥqᵥDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade positionDamper blade position
Nominal lengthqᵥqᵥ45°45°45°45°90°90°90°90°
Nominal lengthqᵥqᵥD = 158D = 158D = 198D = 198D = 158D = 158D = 198D = 198D = 158D = 158D = 198D = 198
Nominal lengthqᵥqᵥΔptLWAΔptLWAΔptLWAΔptLWAΔptLWAΔptLWA
Nominal lengthl/sm³ /hPadB(A)PadB(A)PadB(A)PadB(A)PadB(A)PadB(A)
600301064164<158175<1514188<15
6004817311309262031122737321928
60067240204016363741233670423637
600853073347264360483743114495944
750371335194<15102061620221017
7505620311318272333132846342329
75076272204015364141233683424137
750953423147234265483743131496444
90044160622417132371828241319
9006423112328282834152958352730
90084303214014364742253799434638
9001043743146214272483843151497044
105052186724519172592037271722
10507225813339293335163070363231
1050923302240143653422737115435238
10501124023246204278483943170497644
1200592138265212227112247292124
12007928515349303836183184373732
1200993562341143659422937131445839
12001194283346204185484143189498344
13506724010276232629132459312625
13508631016359304437213299384333
13501063812441143666433138148446439
13501264523446204193484343208499044
15007426612296243231152672323127
1500933361836103150382332114394934
15001134052641143673433438166447139
150013247536462041101484642228499844
165081293623419122472024261221
165011541311338292334133047362231
1650148534184112363842213779433738
16501826552646194257483143118495644
180089319624420132672128271322
180012244111348292535133053362531
1800156562184112364142213785434038
18001906832646184260483143126495844
195096346725521152782232281523
195013046712348302736143158372732
1950163588184112364342223792444238
19501977092646174262483243134496144

{1298)


PL35-1, Zuluft, horizontale, wechselseitige Strömung, Schallleistungspegel und Gesamtdruckdifferenz


D = 98

123
LNqᵥ [l/s]qᵥ [m³/h]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]
6007273<154<157<15
6001760142821283229
6002693334049407641
600351266148904813949
7509334<156<159<15
7501970142823293830
75029106313952408741
750391425647924815649
90011404<157<1512<15
9002279142925294530
900331183139564010041
900441575547994817749
105013475<158<1515<15
10502488152929305331
1050361293139614011341
10504717054471064819749
120015535<1510<151915
12002796162932316232
1200391403240674112942
12005118355471154822149
135017606<1512162417
135029105173037317132
1350421503440744114542
13505419557471254824549
1500186771615172818
150031113183041328133
1500441603640814116142
15005720659471354826849
165020734<156<1510<15
165038136123020303531
165055198254042417342
1650732614247734812649
180022804<157<151215
180040144123021313832
180058209244044417842
1800762734247754813449
195024864<158161316
195042153123023314132
195061219254046418442
1950792854147784814249

1 Drosselklappenstellung 0°
2 Drosselklappenstellung 45°
3 Drosselklappenstellung 90°


PL35-1, Zuluft, horizontale, wechselseitige Strömung, Schallleistungspegel und Gesamtdruckdifferenz
D = 123

123
LNqᵥ [l/s]qᵥ [m³/h]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]
6007273<153<154<15
6001760122515261926
6002693293735384638
60035126524664468446
7509333<154<155<15
7501970112615262127
75029106253733374838
75039142454560458646
90011403<154<156<15
9002279112615272327
90033118243734385138
90044157414559459046
105013473<155<158<15
10502488112616272628
105036129223734385538
105047170394459459646
120015534<156<159<15
12002796112717282928
120039140223736386138
1200511833744614510446
135017604<156<1511<15
135029105112719283329
135042150223738386639
1350541953644644511246
150018674<157<1513<15
150031113112820283729
150044160223740387239
1500572063644664512046
165020733<154<156<15
16503813692713281828
165055198193726383939
165073261334545456746
180022803<154<156<15
18004014492713281929
180058209193726384039
180076273314545456846
195024863<155<157<15
19504215392813282129
195061219183727384239
195079285304545457146

1 Drosselklappenstellung 0°
2 Drosselklappenstellung 45°
3 Drosselklappenstellung 90°


PL35-1, Zuluft, horizontale, wechselseitige Strömung, Schallleistungspegel und Gesamtdruckdifferenz


D = 123

123
LNqᵥ [l/s]qᵥ [m³/h]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]
60015534<156<1511<15
60028102132821293930
60042150283944408541
600551994947774814849
75018674<157<1515<15
75033118122922304731
75047170253945409741
750612214247774816549
90022805<159162118
90037134123025315732
900521882339494011242
900672423946804818649
1050269351711182720
105041149123028326833
1050572042339524112742
1050722603646844720649
12003010661914203422
120045163123131327934
1200612202239574114443
1200772773546904722849
13503312062016224224
135049177133135339235
1350652352239614116043
1350812923445954724849
15003713372219245125
1500531911432393410536
1500692492339674117843
15008530734451014727149
1650411464178191820
165065233113120324533
165089320194038418442
16501134073146604813549
1800441605199202121
180069248113121324934
180093337194039419042
18001184253046624814349
19504817352010212422
195073262113123335434
195098352184040419643
19501234412946634715149

1 Drosselklappenstellung 0°
2 Drosselklappenstellung 45°
3 Drosselklappenstellung 90°


PL35-1, Zuluft, horizontale, wechselseitige Strömung, Schallleistungspegel und Gesamtdruckdifferenz


D = 138

123
LNqᵥ [l/s]qᵥ [m³/h]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]
60015534<155<158<15
60028102122717272928
60042150273837386239
600551994645644610947
75018674<156<1511<15
75033118112718283329
75047170233736386839
750612213945604611647
90022804<157<151415
90037134112819293930
90052188213737387740
900672423445614612747
105026934158161818
105041149112821304631
105057204203738398640
1050722603144624513847
12003010651710182320
120045163112923305332
120061220193741399640
1200772773044644515147
13503312051812202821
135049177112925316033
1350652351837433910641
1350812922844664516347
15003713362014213423
150053191113027326933
1500692491838463911641
1500853072743704517747
1650411464166171318
165065233102916303131
165089320183829395840
1650113407284547469447
1800441604177181419
18006924892916303432
180093337173830396240
1800118425274547469847
1950481734188191620
19507326293017313732
195098352163830396540
19501234412544474510247

1 Drosselklappenstellung 0°
2 Drosselklappenstellung 45°
3 Drosselklappenstellung 90°


PL35-1, Zuluft, horizontale, wechselseitige Strömung, Schallleistungspegel und Gesamtdruckdifferenz


D = 138

123
LNqᵥ [l/s]qᵥ [m³/h]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]
60022805<158<151516
60039140152824304432
60055199293848408942
600722594946814715149
7502810061610182120
75044160142926315333
750612212638494010042
750782814245794716149
9003312061913212823
90050180143029326335
900662392438514011143
900832993844804717349
10503914072116243726
105055198143133337436
1050712572338554112343
1050883163544824718649
12004416082320264728
120060216153237358537
1200762732338584113644
1200923303444854619849
13505018092525285831
135065234163341369938
1350802892339634215044
1350963443343894621249
150055200112729307133
1500702521633463711239
1500843042439674216345
1500993563243924622449
16506122062212242426
165086309123223344836
1650111399193938417943
16501364892845564711849
18006724062313262828
180091328123224355237
1800116417183939418444
18001405052744574712349
19507225972515273229
195096346123326355738
1950120432183940418944
19501445192644584712849

1 Drosselklappenstellung 0°
2 Drosselklappenstellung 45°
3 Drosselklappenstellung 90°


PL35-3, Zuluft, horizontale, wechselseitige Strömung, Schallleistungspegel und Gesamtdruckdifferenz


D = 158

123
LNqᵥ [l/s]qᵥ [m³/h]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]
60022805<156<1510<15
60039140132619273129
60055199273638376239
600722594544634510446
750281005<158151417
75044160122719283530
75061221233636376639
750782813743584410646
900331205169181820
90050180122821304032
90066239203636387140
900832993142564411046
10503914061911212323
105055198122922314633
105071257193637387740
1050883162842564411646
12004416072114232925
120060216122924325334
120076273183639388441
1200923302641564412246
13505018072316253628
135065234123027336035
135080289183641399141
1350963442541574312946
15005520082419274329
150070252123130346836
150084304183643399941
1500993562441594313546
1650612205209221623
165086309103017313133
1650111399163727385140
1650136489244241447746
1800672405219231825
180091328103017323334
1800116417163727395441
1800140505234240447946
19507225962210242026
195096346103118323635
1950120432153728395641
1950144519214240448146

1 Drosselklappenstellung 0°
2 Drosselklappenstellung 45°
3 Drosselklappenstellung 90°


PL35-3, Zuluft, horizontale, wechselseitige Strömung, Schallleistungspegel und Gesamtdruckdifferenz


D = 158

123
LNqᵥ [l/s]qᵥ [m³/h]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]
600301064168171418
60048173113020313732
60067240204037417042
600853073347604811449
7503713351910202022
75056203113123334634
75076272204041418342
750953423147654813149
9004416062213232824
90064231123228345835
90084303214047429943
9001043743146724815149
10505218672417253727
105072258133333357036
1050923302240534211543
10501124023246784817049
12005921382622274729
120079285153438368437
1200993562341594213144
12001194283346854818949
135067240102726295931
135086310163544379938
13501063812441664314844
13501264523446934820849
150074266122932317232
1500933361836503811439
15001134052641734316644
150013247536461014822849
16508129362312242426
1650115413113323344736
1650148534184138427943
16501826552646574811849
18008931962413262827
1800122441113425355336
1800156562184141428543
18001906832646604812649
19509634672515273228
1950130467123427365837
1950163588184143429244
19501977092646624813449

1 Drosselklappenstellung 0°
2 Drosselklappenstellung 45°
3 Drosselklappenstellung 90°


PL35-3, Zuluft, horizontale, wechselseitige Strömung, Schallleistungspegel und Gesamtdruckdifferenz


D = 198

123
LNqᵥ [l/s]qᵥ [m³/h]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]Δpₜ [Pa]LWA [dB(A)]
600301064<155<158<15
6004817392612271928
60067240163623363637
60085307264337435944
750371334<156161017
7505620382713282329
75076272153623364137
75095342234237436444
900441604177181319
9006423182815292730
90084303143625374638
900104374214238437044
1050521865199201722
10507225892916303231
105092330143627375238
1050112402204239437644
12005921352111222124
12007928593018313732
120099356143629375839
1200119428204141438344
13506724062313242625
13508631093021324333
1350106381143631386439
1350126452204143439044
15007426662415263127
150093336103123324934
1500113405143634387139
1500132475204146429844
1650812934197201221
165011541382913302231
1650148534123621373738
1650182655194231435644
1800893194207211322
180012244182913302531
1800156562123621374038
1800190683184231435844
1950963465218221523
195013046783014312732
1950163588123622374238
1950197709174232436144

1 Drosselklappenstellung 0°
2 Drosselklappenstellung 45°
3 Drosselklappenstellung 90°



Slot diffusers of Type PURELINE35 with individually, manually adjustable air control blades and 1, 2, 3 or 4 slots..

Air distribution can be alternating horizontal, alternating angled, vertical, one-way horizontal to the left or one-way horizontal to the right.

The slot diffusers are intended to be installed in suspended ceilings and are suitable for supply air and extract air. Ready-to-install component which consists of a diffuser face with a choice of black, grey or white air control elements.


Variants with plenum boxes have 1 or 2 spigots which are arranged horizontally or vertically for symmetrical plenum boxes and horizontally for asymmetrical plenum boxes.

The plenum boxes are fitted with 4 suspension lugs.

The connection between the diffuser face and the plenum box can be fixed or detachable.

Spigots are suitable for circular ducts according to EN 1506 or EN 13180. The sound power level of air-regenerated noise is measured according to EN ISO 5135.



Special features

  • Uniform air pattern reduces contamination of the ceiling due to induced room air
  • Horizontal, angled or vertical air discharge by means of manually adjustable air control elements
  • Comfortable indoor climate due to high induction and rapid reduction of temperature differences and airflow velocities
  • Attractive appearance due to extruded aluminium sections with anodised finish or powder coating (RAL CLASSIC colour)
  • Diffuser face has been optimised for maximum volume flow rate at low sound power levels
  • Suitable for continuous linear arrangement



Materials and surfaces

  • Diffuser face made from extruded aluminium sections
  • Air control elements made of ABS plastic, UL 94, V-0, flame retardant
  • Plenum box made of galvanised sheet steel
  • End plates and end angles made of aluminium
  • Lip seal made of Evoprene
  • Lining of mineral wool and closed cell vinyl foam
  • Diffuser face with anodised finish, E6-C-0, natural colour
  • P1: Powder-coated, RAL CLASSIC colour
  • Air control elements similar to RAL 9005, black
  • G: Air control elements similar to RAL 9006, grey
  • W: Air control elements similar to RAL 9010, white



Mineral wool

  • Mineral wool faced with glass fibre fabric on the surfaces in contact with the air, abrasion-resistant up to 20 m/s
  • To EN 13501, fire rating class A1, non-combustible
  • RAL quality mark RAL-GZ 388
  • Hygienically safe due to high biosolubility, according to TRGS 905 and EU Directive 97/69/EC

  • Inert to fungal and bacterial growth



Construction

Diffuser face finish

  • With anodised finish, E6-C-0, natural colour
  • P1: Powder-coated RAL 9010, pure white, GE50
  • P1: Powder-coated RAL 9006, white aluminium, GE30
  • P1: Powder-coated in other RAL CLASSIC colours, GE70 (no luminous colours)


Technical data

  • Nominal lengths: 600 – 1950 mm, in increments of 150 mm
  • Number of slots: 1, 2, 3 or 4
  • Minimum volume flow rate with Δtz = –10 K: 7 l/s or 24 m³/h
  • Maximum volume flow rate, at LWA ≅ 50 dB(A): ​225 l/s or 808 m³/h
  • Supply air to room air temperature difference: –10 to +10 K



Sizing data



  • V____________________________________[m³/h]


  • Δpt___________________________________[Pa] air-regenerated noise




  • LWA__________________________________[dB(A)]


PL351SSFHS / 1200 × 1050 × 123 × 30 / 2D LSL RI / AS / B00 / EA / P1 – RAL 9016 / W
||||||||||||||||
12345678910111213141516

1 Type
PURELINE35 Slot diffuser


2 Number of air slots
1 1 air slot
2 2 air slots
3 3 air slots
4 4 air slots

3 System
Supply air
E Extract air (standard with air control blades, optional without air control blades)

4 Connection
DF Diffuser face with extended border and spring clip
DS Diffuser face with extended border and fixing screws
CD Air transfer sectionBD Non-active section Plenum box

PB only plenum box (for combination with DS)
PF with fixed connection between plenum box and diffuser face

SF  with detachable connection between plenum box and diffuser face (only with B00)

5 Plenum box variant

HS symmetrical plenum box with horizontal connection

VS symmetrical plenum box with vertical connection
HA asymmetrical plenum box with horizontal connection

6 Nominal size [mm]
Diffuser face × plenum box × ​spigot diameter × neck extension

Nominal length LN
600, 750, 900, 1050, 1200, 1350, 1500, 1650, 1800, 1950


Plenum box LN

600, 750, 900, 1050, 1200, 1350, 1500, 1650, 1800, 1950


Spigot diameter ØD

98 1 air slot

123 1 and 2 air slot(s)
138 2 and 3 air slots

158 3 and 4 air slots
198 4 air slots Neck extension Y No entry required: 0

30, 55, 80, 105, 129

7 No. of spigots
1 1 spigot (up to length 1200 ​mm)

2 2 spigots (from length 900 ​mm)

8 Damper blade for volume flow rate balancing

No entry required: None

D With damper blade

9 Accessories

No entry required: None

LS With lip seal

10 Lining
No entry required: None

L With

11 Position of plenum box
No entry required: Centre

LE Left side

Rl Right side

12 Air pattern (length of air control elements 150 ​mm)

No entry required: Alternating horizontal
AS Alternating angled
HL Horizontal left
HR Horizontal right

V Vertical

13 Diffuser face with extended border

No entry required: None
B00 With extended border

14 End pieces

No entry required: None
EP End plate

EA End angleTo be ordered separately for linear runs

15 Surface
No entry required: with anodised finish, E6-C-0, natural colour

P1 Powder-coated, specify RAL CLASSIC colour


Gloss level
RAL 9010 50 %
RAL 9006 30 %
all other RAL CLASSIC colours 70 %

16 Colour of air control elements
No entry required: similar to RAL 9005, black
W similar to RAL 9010, white

G similar to RAL 9006, grey


Order example: PL35-1-S-PF-HS/1200x1200x98/1
Number of slots1
SystemSupply air
VariantDiffuser face fixed to the plenum box, non-detachable
Plenum box variantStandard plenum box with horizontal connection
Nominal sizeDiffuser face 1200 mm, plenum box 1200 mm, spigot diameter 98 mm
No. of spigots1
Damper unit for volume flow rate balancingWithout
Lip sealWithout
LiningWithout
Position of plenum boxCentral position
Air patternAlternating horizontal
Extended borderWithout
End piecesWithout
SurfaceAnodised, E6-C-0, natural colour
Colour of air control elementsblack



PL351SCS / 100 × 100 × 90 / B00 / P1 – RAL 9016 / W
||||||||
12345678

1 Type

PURELINE35 Slot diffuser

2 Number of air slots

1 1 air slot

2 2 air slots

3 3 air slots

4 4 air slots

3 System

S Supply air

E extract air

4 Variant
CS Corner section

5 Dimensions [mm]
E 100 to 300 mm (in mm increments)

F 100 to 300 mm (in mm increments)

W 45° to 175° (in increments of 1°)

6 Diffuser face with extended border
No entry required: None

B00  with section B00

7 Surface
No entry required: with anodised finish, E6-C-0, natural colour

P1 Powder-coated, specify RAL CLASSIC colour

Gloss level
RAL 9010 50 %

RAL 9006 30 %

All other RAL colours 70 %

8 Colour of air control elements
No entry required: similar to RAL 9005, black
W similar to RAL 9010, white

G similar to RAL 9006, grey

E0 Without air control blades


Order example: PL35-1- -CS/100x100x90
Number of slots1
VariantCorner section
DimensionsLeg dimension E: 100 mm Leg dimension F: 100 mm Angle: 90°
Extended borderWithout
SurfaceAnodised, E6-C-0, natural colour
Colour of air control elementsBlack, similar to RAL 9005


PL35ACCEA /2B00 / P1 – RAL 9016
||||||
123456
1 Type
PURELINE35 Slot diffuser

2 Type
ACC Accessories and replacement parts
3 Variant
EP 1 pair of end plates exhaust air
EA 1 pair of end angles
CL Connector diffuser face
SF Replacement screw fixing
DF1 Clamp fixing 1-slots
DF2 Clamp fixing 2-slots
DF3 Clamp fixing 3-slots
DF4 Clamp fixing 4-slots

4 Number of slots
1 1 slot
2 1 slot
3 3 slot
4 4 slot

5 Extended border
No entry: none
B00 With section B00

Surface
No entry: anodised, E6-C-0, natural colour
P1 Powder-coated, specify RAL CLASSIC colour

Gloss level
RAL 9010 GE50
RAL 9006 GE30
all RAL-Classic colours (except luminous colours) GE70

Variants, Dimensions and weight, Installation details

  • VARIANTS
  • DIMENSIONS AND WEIGHT
  • INSTALLATION DETAILS


LNL₁
600600
750750
900900
10501050
12001200
13501350
15001500
16501650
18001800
19501950

,
1LNL₁L₃
1600600595
1750750745
1900900895
1105010501045
1/2120012001195
1/2135013501345
1/2150015001495
2165016501645
2180018001795
2195019501945
,
B3H4RAO
 12121234
PL35-1100138150150126 + Y1401787264
PL35-2138160180150141 + Y1782008375
PL35-3176176198150150 + Y2162169486
PL35-4214214230150166 + Y25425410697
,
 ∅DC
PL35-198/12350/48
PL35-2123/13848/42
PL35-3138/15842/50
PL35-4158/19850/50
,
 1kg/m
Diffuser face1-/2-/3-/4-schlitzig0,8 / 1,2 / 1,6 / 2,1
Plenum box HS/HA3,3 / 3,9 / 4,6 / 5,2
Plenum box HS/HA+L4,0 / 4,7 / 5,5 / 6,2
Plenum box VS3,7 / 3,9 / 4,1 / 4,3
Plenum box  VS+L4,5 / 4,7 / 4,9 / 5,2
,
 12
PL35-13555
PL35-26282
PL35-389109
PL35-4116136
,
 EFW [°]
Minimaler Eingabewert10010045
Maximaler Eingabewert300300175
,
 12
PL35-13555
PL35-26282
PL35-389109
PL35-4116136

Installation and commissioning

  • Preferably for rooms with a clear height up to 4.0 m
  • Flush ceiling installation
  • Horizontal duct connection
  • Diffusers with a shorter plenum box as well as non-active diffusers require a rear blanking plate; length of blanking plate = L1 – L3
  • For a continuous linear arrangement connect the diffusers with connecting pins and alignment plates
  • If necessary, carry out volume flow rate balancing with the damper blade

These are only schematic diagrams to illustrate installation details.

Air patterns

  • Air patterns

Downloads

product information

certificates

operation manuals

production {"X-Frame-Options"=>"SAMEORIGIN", "X-XSS-Protection"=>"1; mode=block", "X-Content-Type-Options"=>"nosniff", "X-Download-Options"=>"noopen", "X-Permitted-Cross-Domain-Policies"=>"none", "Referrer-Policy"=>"strict-origin-when-cross-origin", "Content-Security-Policy"=>"frame-ancestors 'self' https://*.scrivito.com https://punchoutcommerce.com https://www.trox.de https://trox-extern.com https://*.onventis.com http://localhost:63342 http://cerebrum.local", "Strict-Transport-Security"=>"max-age=31536000; includeSubDomains", "Content-Type"=>"text/html; charset=utf-8"}

Share page

Recommend this page

Recommend this page by sending a link by mail.

Fields marked with an (*) are required fields.

Share page

Thank you for your recommendation!

Your recommendation has been sent and should arrive shortly.

Contact

We are here for you

Please specify your message and type of request
Tel.: +49 (0)2845 / 202-0 | Fax: +49 (0)2845/202-265

Fields marked with an (*) are required fields.

Contact

Thank you for your message!

Your message is send and will be processed shortly.
Our department for Service-Requests will contact you asap.
For general question regarding products or services you can also call:
Tel.: +49 (0)2845 / 202-0 | Fax: +49 (0)2845/202-265

Contact

We are here for you

Please specify your message and type of request
Tel.: +49 (0)2845 / 202-0 | Fax: +49 (0)2845/202-265

Attachment (max. 10MB)

Fields marked with an (*) are required fields.

Contact

Thank you for your message!

Your message is send and will be processed shortly.
Our department for Service-Requests will contact you asap.
For general question regarding products or services you can also call:
Tel.: +49 (0)2845 / 202-0 | Fax: +49 (0)2845/202-265
