Type FKR-EU

FKR-EU with fusible link for 72 °C or 95 °C

With TROXNETCOM as an option

CE compliant according to European regulations

ATEX certification

Tested to VDI 6022

Type FKR-EU

For large diameters, with or without a flange

Large circular fire damper for the isolation of duct penetrations between 2 fire compartments, available in 9 nominal sizes

Nominal sizes: 315 – 800 mm
Low differential pressure and sound power level
Flanges as an option
Explosion-proof construction (ATEX) as an option
Optionally available as an upstream shutter of an air transfer unit
Optional stainless steel casing or powder-coated casing for increased corrosion protection
Optionally available with thermal insulation to prevent condensation
Integration into the central BMS with TROXNETCOM

Optional equipment and accessories

Electric actuator 24 V/230 V
Release temperature 72/95 °C

Useful additions

Duct smoke detectors

Initialize order code

General Information

Application

Fire dampers with CE marking and declaration of performance, for the isolation of duct penetrations between two fire compartments in the event of a fire
To prevent the propagation of fire and smoke through ductwork to adjacent designated fire compartments

Special features

Declaration of performance in accordance with European Construction Products Regulation
Classification according to EN 13501-3 up to EI 120 (v_e, h_o, i ↔ o) S
Complies with the requirements of EN 15650
Tested for fire resistance properties in accordance with EN 1366-2 (300 Pa negative pressure)
Certified mortar-based installation with reduced distances of 40 mm to supporting components or 40 mm between two fire dampers (flange to flange)
Surrounding gap dimensions in the mortar-based installation with mortar up to 225 mm permitted
Hygienic requirements are fulfilled in accordance with VDI 6022-1, VDI 3803-1, DIN 1946-4 and EN 13779, as well as Önorm H 6020 and H 6021 and SWKI
Corrosion protection according to EN 15650 in connection with EN 60068-2-52
Closed blade air leakage to EN 1751, class 4
Casing air leakage to EN 1751, class C
Low differential pressure and sound power level
Any airflow direction
Integration into the central building management system with the international standard fire damper system in accordance with IEC 62026-2 with AS interface is possible

Classification

Class of performance up to EI 120 (v_e, h_o, i ↔ o) S according to EN 13501-3

Nominal sizes

315, 355, 400, 450, 500, 560, 630, 710, 800 mm
L: 495 mm or 550 mm (depending on casing construction)

Variants

With fusible link
With fusible link for use in potentially explosive atmospheres
With spring return actuator
With spring return actuator for use in potentially explosive atmospheres
With cover grille on both sides as an upstream shutter of an air transfer unit

The following applies to Germany:

If fire dampers with a purely mechanical shut-off element are to be used as an upstream shutter of an air transfer unit, the local building regulations must be observed. Usually the use of such upstream shutters of air transfer units is restricted to pressure differential systems.

Parts and characteristics

Release temperature 72 °C or 95 °C (for use in warm air ventilation systems)
Single-handed operation
Approved installation orientation from 0° to 360°
Explosion-proof constructions for zones 1, 2, 21, 22

Attachments

Limit switch for damper blade position indication
Spring return actuator for 24 V AC/DC or 230 V AC supply voltage
Limit switch for damper blade position indication for use in potentially explosive atmospheres
Spring return actuator for 24 – 230 V supply voltage, for use in potentially explosive atmospheres
Network module for the integration with AS-i or LON networks
All attachments can be retrofitted

Accessories

Installation block TQ for dry mortarless installation into lightweight partition walls / fire walls with metal support structure and cladding on both sides, as well as timber stud walls, half-timbered and solid wood wall, as well as solid wood and wood beam ceilings
Cover grilles
Flexible connectors
Extension piece

Useful additions

Duct smoke detector RM-O-3-D
Duct smoke detector with airflow monitor RM-O-VS-D

Construction features

Rigid, circular casing with spigot connections suitable for circular ducts. Spigots with lip seal on both ends, suitable for commercially available circular ducts to EN 1506 or EN 13180; alternatively with flanges on both ends. Flanges, to EN 12220
Suitable for the connection of ducts, cover grilles or flexible connectors

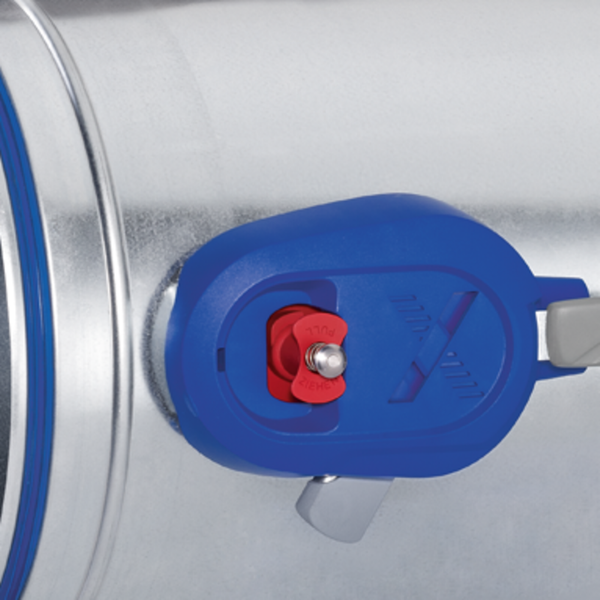

The release mechanism is accessible and can be tested from the outside

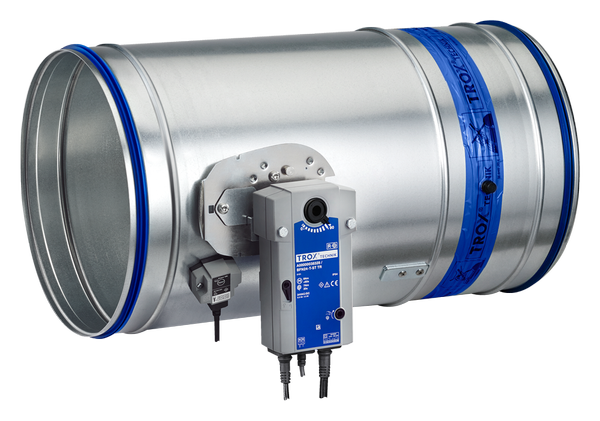

Remote control with spring return actuator

Materials and surfaces

Casing:

Galvanised sheet steel
Galvanised sheet steel, powder-coated RAL 7001
Stainless steel 1.4301

Damper blade:

Special insulation material
Special insulation material with impregnation

ODA construction:

Damper casing made of galvanised sheet steel with powder coating and thermal insulation, damper blade made of special insulating material with impregnation (only in conjunction with spring return actuator)

Other components:

Damper blade shaft in stainless steel
Plastic plain bearings
Seals of elastomer

The design variants with a stainless steel or powder-coated casing fulfil increased requirements in terms of corrosion protection. Detailed listing on request.

Standards and guidelines

Construction Products Regulation
EN 15650 Ventilation for buildings – Fire dampers
EN 1366-2 Fire resistance tests for service installations – Fire dampers
EN 13501-3 Fire classification of construction products and building elements
EN 1751 Ventilation for buildings – Air terminal devices
2006/42/EC – Machinery Directive

Supply package

If attachments and accessories are supplied from the factory with the fire dampers, they are already taken into account in the order code. Depending on the installation situation, supplementary materials for assembly and fixing may be needed to ensure proper installation, e.g. mortar, screws, mineral wool, etc. Such materials are not included in the supply package, unless they are expressly described as included in the supply package. The selection of additional attachments or accessories as well as the identification and provision of materials for assembly and fixing is the responsibility of those involved in the building project and must be done taking into account the required classification.

Maintenance

The functional reliability of the fire damper must be tested at least every six months; this has to be arranged by the owner of the ventilation system; functional tests must be carried out in compliance with the basic maintenance principles stated in EN 13306 and DIN 31051. If 2 consecutive tests, one 6 months after the other, are successful, the next test on the fire damper can be conducted one year later.
A functional test involves closing the damper blade and opening it again; with a spring return actuator this can be done via remote control
Fire dampers must be included in the regular cleaning schedule for the ventilation system
For details on functional tests, maintenance and inspection refer to the installation and operating manual

Technical data

Nominal sizes: 315 to 800 mm
Casing lengths: 495 and 550 mm
Volume flow rate range: up to 6000 l/s / up to 21600 m³/h
Differential pressure range: up to 2000 Pa
Temperature range: -20 – 50 °C
Upstream velocity*: Standard construction ≤ 8 m/s, construction with spring return actuator ≤ 12 m/s, construction with explosion-proof actuator ExMax/RedMax-15-BF TR ≤ 10 m/s

* Data applies to uniform upstream and downstream conditions for the fire damper

Incorrect use

without specially approved attachments in areas with potentially explosive atmospheres
as a smoke control damper
outdoors without sufficient protection against the effects of weather
in atmospheres where chemical reactions, whether planned or unplanned, may cause damage to the fire damper or lead to corrosion

The following applies to Germany

Do not use it in extract air systems in commercial kitchens
Do not use it as an air transfer damper
Do not use in combined penetration seal
Do not use in fire protection block bulkhead.
Approvals under building regulations may be required for the use of upstream shutters of air transfer units. This must be checked and applied for by others.
Flame-resistant, non-dripping building materials (elastomeric foams) must at least correspond to fire rating class C - s2, d0 according to the specifications of MVV TB (since 2019/01). The applicable national building regulations must be adhered to

Technical information

Function, Technical data, Quick sizing, Specification text, Order code

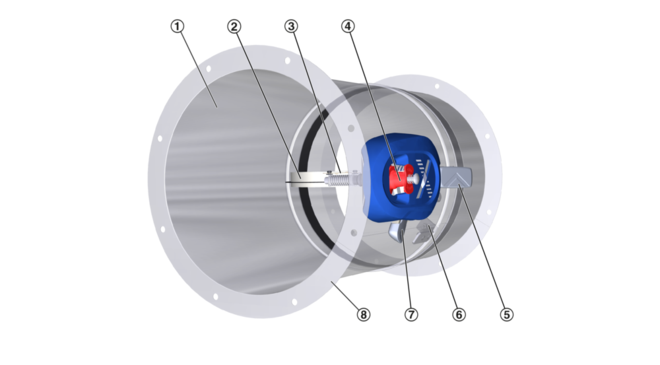

Functional descriptionConstruction with fusible link

① Casing
② Damper blade with seal
③ Travel stop for CLOSED position
④ Handle
⑤ Release tab
⑥ Thermal release mechanism with fusible link
⑦ Lip seal

In the event of a fire, fire dampers shut automatically to prevent the propagation of fire and smoke through ductwork to adjacent designated fire compartments.
In the event of a fire, the damper is triggered at 72°C or at 95°C (use in warm air ventilation systems) by a fusible link. The release mechanism is accessible and can be tested from the outside. One or two limit switches (optional attachment) can be used to indicate the damper blade position.

Nominal sizes	315 – 800 mm
Casing lengths	495 and 550 mm
Volume flow rate range	Up to 6000 l/s or 21600 m³/h
Differential pressure range	Up to 2000 Pa
Temperature range ^{1, 3}	-20 to 50 °C
Release temperature	72 °C or 95 °C (for warm air ventilation systems)
Upstream velocity ²	Standard construction ≤ 8 m/s, Construction with spring return actuator ≤ 12 m/s, Construction with explosion-proof actuator ExMax/RedMax-15-BF TR ≤ 10 m/s

¹ Temperatures may differ for units with attachments. Details for other applications are available on request.
² Data applies to uniform upstream and downstream conditions for the fire dampers.
³ Condensation and the intake of humid fresh air have to be avoided as otherwise operation will be impaired or not be possible.

Free area and resistance coefficient

NG	(1)	(2)
315	0.069	0,44
355	0.089	0,34
400	0.114	0,26
450	0.140	0,21
500	0.175	0,17
560	0.222	0,13
630	0.285	0,10
710	0.365	0,08
800	0.468	0,06

(1) A [m²]
(2) ζ

Quick sizing tables provide a good overview of the volume flow rates with different sound power levels as well as of differential pressures of up to 35 Pa. Approximate intermediate values can be interpolated. Precise intermediate values can be calculated with our Easy Product Finder design program.

Volume flow rate q_v for differential pressure Δp_st < 35 Pa

NG	(1)	(2)	(3)	(4)
315	460	670	1660	2400
355	570	820	2040	2940
400	700	1000	2500	3610
450	820	1180	2940	4240
500	980	1410	3530	5080
560	1190	1710	4280	6160
630	1450	2090	5230	7520
710	1780	2560	6400	9210
800	2170	3130	7810	11250

(1) 35 L_WA [dB(A)] in l/s
(2) 45 L_WA [dB(A)] in l/s
(3) 35 L_WA [dB(A)] in m³/h
(4) 45 L_WA [dB(A)] in m³/h

The Easy Product Finder allows you to size products using your project-specific data. You will find the Easy Product Finder on our website.

Sizing example

Given data:
Volume flow rate: 3600 m³/h
Sound power level: ≤ 45 dB(A)

Quick sizing
FKR-EU/400

Specification text

Fire damper according to the European product standard EN 15650 in circular construction style. Tested for fire resistance properties according to EN 1366-2, with CE label. The fire damper manufacturer's declaration of performance (DoP) provides proof of the respective installation conditions, e.g., in walls or ceilings, along with the basic characteristics such as size, support structure, design and installation type and the respective classes of performance in accordance with the classification standard EN 13501-3.

Ready-to-use units contain a release mechanism and an interchangeable, fire-resistant damper blade that can be arranged horizontally or vertically and in all intermediate positions (0 - 360°) depending on the use.

Depending on application, classified from:

EI 30 (v_e, h_o i ↔ o) S to EI 120 (v_e, h_o i ↔ o) S

Suitable for:

Mortar-based installation

In solid walls, walls made from gypsum wall boards, lightweight partition walls, compartment walls, safety partition walls and walls to provide radiation protection
In shaft walls with metal support structures or steel support structures
In timber stud walls and timber frame walls, as well as solid wood and cross laminated timber walls
In and on solid walls and in combination with timber beam, solid wood and modular ceilings (System Cadolto)
In solid wood, wooden beam and historical wooden beam ceilings
If several fire dampers are installed in a solid wall, ceiling slab, lightweight partition wall, timber stud wall and half-timbered wall, their combined area must not exceed 4.8 m²
Can be installed together with FK2-EU in solid walls and ceiling slabs, lightweight partition walls, timber stud walls, half-timbered walls and shaft walls

Dry mortarless installation

In lightweight partition walls and compartment walls with metal support structure and cladding on both sides: with installation kit TQ
In timber stud walls and timber frame walls, as well as solid wood and cross laminated timber walls with installation kit TQ
In solid wood and wooden beam ceilings with installation kit TQ

Fire batt installation

In solid walls and ceiling slabs
In lightweight partition walls, compartment walls, safety partition walls and walls to provide radiation protection, with metal support structure or steel support structure
In timber stud walls, half-timbered constructions, solid wood walls and CLT walls

Sizes from nominal size 315 mm – 800 mm.

Optimised low-leakage casing, up to leakage class C to EN 1751 with low differential pressure and low sound power level.

Fire damper casing made of galvanised sheet steel, optionally galvanised sheet steel with powder coating RAL 7001 or stainless steel 1.4301.

Damper blade made of special insulation material, optionally with coating.

Corrosion protection according to EN 15650 in connection with EN 60068-2-52. Hygienic requirements are fulfilled in accordance with VDI 6022-1, VDI 3803-1, DIN 1946-4, DIN EN 13779 as well as the Önorm H 6020 and H 6021 and the SWKI. Casing in spigot design (length 550 mm) or flange design (length 495 mm) for connection to ducts made of non-combustible or combustible building materials.

Thermal release for 72°C or 95°C

(warm air ventilation systems) with a fusible link or thermoelectrically with a spring return actuator, push button and indicator light (LED). Constructions with a brushless actuator for opening and closing the fire damper, also when the ventilation system is running and independent of the nominal size, are particularly suitable for functional checks and for shutting off sections of the duct system. Retrofit of spring return actuators without modification of the rod is possible from the outside.

Explosion-proof constructions for zones 1, 2, 21 and 22 available with limit switch or spring return actuator.

In the version with thermal insulation made of 32 mm synthetic cellular rubber, fire rating class: B-s2-d0, spring return actuator and perimeter mortar infill, suitable for reducing condensation in the case of outdoor air intake (ODA Outdoor air).

Special features

Declaration of performance in accordance with European Construction Products Regulation
Classification according to EN 13501-3 up to EI 120 (v_e, h_o, i ↔ o) S
Complies with the requirements of EN 15650
Tested for fire resistance properties in accordance with EN 1366-2 (300 Pa negative pressure)
Certified mortar-based installation with reduced distances of 40 mm to supporting components or 40 mm between two fire dampers (flange to flange)
Surrounding gap dimensions in the mortar-based installation with mortar up to 225 mm permitted
Hygienic requirements are fulfilled in accordance with VDI 6022-1, VDI 3803-1, DIN 1946-4 and EN 13779, as well as Önorm H 6020 and H 6021 and SWKI
Corrosion protection according to EN 15650 in connection with EN 60068-2-52
Closed blade air leakage to EN 1751, class 4
Casing air leakage to EN 1751, class C
Low differential pressure and sound power level
Any airflow direction
Integration into the central building management system with the international standard fire damper system in accordance with IEC 62026-2 with AS interface is possible

Materials and surfaces

Casing:

Galvanised sheet steel
Galvanised sheet steel, powder-coated RAL 7001
Stainless steel 1.4301

Damper blade:

Special insulation material
Special insulation material with impregnation

ODA construction:

Damper casing made of galvanised sheet steel with powder coating and thermal insulation, damper blade made of special insulating material with impregnation (only in conjunction with spring return actuator)

Other components:

Damper blade shaft in stainless steel
Plastic plain bearings
Seals of elastomer

The design variants with a stainless steel or powder-coated casing fulfil increased requirements in terms of corrosion protection. Detailed listing on request.

Technical data

Nominal sizes: 315 to 800 mm
Casing lengths: 495 and 550 mm
Volume flow rate range: up to 6000 l/s / up to 21600 m³/h
Differential pressure range: up to 2000 Pa
Temperature range: -20 – 50 °C
Upstream velocity*: Standard construction ≤ 8 m/s, construction with spring return actuator ≤ 12 m/s, construction with explosion-proof actuator ExMax/RedMax-15-BF TR ≤ 10 m/s

* Data applies to uniform upstream and downstream conditions for the fire damper

Equivalence criteria

The declaration of performance according to the Construction Products Regulation describes all CE-certified installation types including the performance class up to EI 120 S according to EN 13501-3 as well as the essential characteristics of at least the permissible size and supporting structure
Hygienic requirements are fulfilled in accordance with VDI 6022-1, VDI 3803-1, DIN 1946-4 and EN 13779, as well as the Önorm H 6020 and H 6021 and the SWKI.
CE-marked and thus tested for fire resistance properties according to EU regulation 305/2011 and evaluated according to machinery directive 2006/42/EC
CE-certified mortar-based installation at a distance ≥ 40mm between 2 fire dampers (flange to flange)
Combined mortar-based installation with fire dampers of the FK2-EU type in solid walls, lightweight partition walls with cladding on both sides, timber stud walls and half-timbered walls, shaft walls with metal studs with cladding on one side, and solid ceiling slabs
Pressure loss < 10 Pa at reference size 400 mm and 6 m/s upstream velocity
Sound power < 38 dB(A) at reference size 400 mm and 6 m/s upstream velocity

Order code FKR-EU

FKR-EU

–

…

–

315

Z43

1 Type
FKR-EU Fire damper

2 Flange
No entry: none (construction with spigots)
FL²Flanges on both ends

3 Construction
No entry required: None
1 Powder-coated casing RAL 7001
2 Stainless steel casing
7 Impregnated damper blade
1 – 7 Powder-coated casing RAL 7001 and impregnated damper blade
2 – 7 Stainless steel casing and impregnated damper blade
W¹ With fusible link 95°C (only for use in warm air ventilation systems)
B³ With coated fusible link 72°C
WB³ With coated fusible link 95°C (only for use in warm air ventilation systems)

4 Country of destination
DE Germany
CH Switzerland
AT Austria
NL Netherlands
Other countries of destination upon request

5 Nominal size [mm]
315, 355, 400, 450, 500, 560, 630, 710, 800

6 Accessories 1
No entry required: None
TQ² Installation kit (construction with spigots)

7 Accessories 2
No entry required: None
S0 – AS

8 Attachments
Z00 – ZEX4

¹with all constructions 2 and 3 Can be combined, but not with attachments 8 ZEX1 – ZEX4
²TQ cannot be combined with FKR-EU-FL
³Only for attachments Z00 - Z03 and Z00EX - Z03EX

Order example: FKR-EU-1/DE/500/SS/ZL09

Construction variant	Casing (construction with spigots) powder-coated, silver grey (RAL 7001)
Release temperature	72 °C
Country of destination	Germany
Nominal size	500 mm
Accessories 1	Without
Accessories 2	Flexible connector on operating and installation sides
Attachment	Spring return actuator 24 V and LON module LON-WA1/B3

Order code FKR-EU with thermal insulation as ODA construction to prevent condensation

FKR-EU

–

…

–

1–7–ODA

315

…

Z43

1 Type
FKR-EU Fire damper

2 Flange
No entry: none (construction with spigots)

FL Flanges on both ends

3 Construction
1–7–ODA¹ Powder-coated housing RAL 7001, impregnated damper blade and insulated damper housing (32 mm Armaflex Ultima)

4 Country of destination
DE Germany
Other countries of destination upon request

5 Nominal size [mm]
315, 355, 400, 450, 500, 560, 630, 710, 800

6 Accessories 1
No entry required: None²

7 Accessories 2

No entry required: None³

8 Attachments
Z43, Z45, Z60, Z61, ZA07, ZL09, ZL10, ZL11, ZB01, ZA14
¹ ODA only with 72°C release temperature

² ODA cannot be combined with accessories 1

³ Accessories 2 cannot be factory mounted, when needed please order separately

Order example: FKR-EU-1-7-ODA/560/ZA07

Construction variant	Casing (construction with spigots) powder-coated, silver grey (RAL 7001), impregnated damper blade and insulated damper casing (32 mm Armaflex Ultima)
Release temperature	72 °C
Country of destination	Germany
Nominal size	560 mm
Accessories 1	Without
Accessories 2	Without
Attachment	Spring return actuator 24 V and AS-EM

Order code for FKR-EU as an upstream shutter of an air transfer unit

FKR-EU

–

…

–

500

Z01

1 Type
FKR-EU Fire damper

2 Flange

No entry: none (construction with spigots)

FL² Flanges on both ends

3 Construction
No entry required: None
1 Powder-coated casing RAL 7001

2 Stainless steel casing

7 Impregnated damper blade

1 – 7 Powder-coated casing RAL 7001 and impregnated damper blade

2 – 7 Stainless steel casing and impregnated damper blade

4 Country of destination

Upon request

5 Nominal size [mm]

315, 355, 400, 450, 500, 560, 630, 710, 800

6 Accessories 1
No entry required: None

TQ² Installation kit (construction with spigots)

7 Accessories 2

AA Cover grilles on both ends

8 Attachments
Z00 – ZB01

²TQ cannot be combined with FKR-EU-FL

For Germany, the following applies when used as an upstream shutter of an air transfer unit:
If fire dampers with a purely mechanical shut-off element are to be used as an upstream shutter of an air transfer unit, the local building regulations must be observed. This may require building authority approvals. This must be checked and applied for by others. Usually the use of such upstream shutters of air transfer units is restricted to pressure differential systems.

Order example: FKR-EU-1/DE/400/AA/Z03

Construction variant	Casing (construction with spigots) powder-coated, silver grey (RAL 7001)
Release temperature	72 °C
Country of destination	Germany
Nominal size	400 mm
Accessories 1	Without
Accessories 2	Cover grilles on both ends
Attachment	Limit switches for damper blade positions OPEN and CLOSED

Dimensions, Product details

FKR-EU with fusible link (FKR-EU/.../Z0*) and cover grille on both sides as an air transfer damper

Spigot construction

① Keep clear to provide access to the release mechanism. Weights FKR-EU with fusible link, see table of dimensions for FKR-EU with fusible link

FKR-EU with fusible link (FKR-EU/.../Z0*)

NG	(1)	(2)	(3)	(4)	(5)	(6)	(7)
315	314	352	31	45	8	6,8	19,5
355	354	392	31	45	8	7,3	21,8
400	399	438	31	45	8	8,5	25,0
450	449	488	36	45	8	14,1	33,1
500	499	538	36	45	8	16,4	37,8
560	559	600	36	30	12	18,0	42,6
630	629	670	36	30	12	21,3	49,7
710	709	750	36	30	12	25,7	58,7
800	799	840	36	22.5	16	28,6	67,3

(1) ØD [mm]
(2) ØD1
[mm]
(3) A [mm]
(4) a [°]
(5) Number of holes
(6) FKR-EU with fusible link [kg]
(7) ... and installation kit TQ [kg]

Installation and commissioning

Installation is carried out according to the installation and operating manual.

Mortar-based installation:

In solid walls and ceiling slabs
In lightweight partition walls with metal support structure and cladding on both sides
In timber stud walls and half-timbered constructions with cladding on both sides
In compartment walls with metal support structure and cladding on both sides
In shaft walls with or without metal support structure and with cladding on one side
On wooden beam ceilings
On modular ceilings (Cadolto system)

Dry mortarless installation:

In lightweight partition walls with metal support structure or steel support structure and cladding on both sides: with installation kit TQ
In timber stud walls and half-timbered constructions with cladding on both sides and installation kit TQ
In compartment walls with metal support structure and cladding on both sides with installation kit TQ

ODA constructions, Accessories 1, Accessories 2, Attachment

FKR-EU with thermal insulation

Supply package: FKR-EU with thermal insulation
① FKR-EU with thermal insulation on the operating side
② Insulating strips, Armaflex Ultima, around the perimeter
③ Armaflex tape

ODA construction

Accessories 1 – installation kit

Accessories 1	Order code
Square installation kit	TQ

Dimensions of installation opening/cover plate [mm]

NG	315	355	400	450	500	560	630	710	800
□A	435	475	520	570	620	680	750	830	920
□B1	515	555	600	650	700	760	830	910	1000

Accessories 2 – cover grille

Operating side	Installation side	Order code
Cover grille	–	A0
–	Cover grille	0A
Cover grille	Cover grille	AA*
Cover grille	Flexible connector	AS
Flexible connector	Cover grille	SA

* AA for FKR-EU as an upstream shutter of an air transfer unit

Arrangement and length of extension pieces [mm]

NG	Operating side FKR-EU / FKR-EU-FL	Installation side FKR-EU / FKR-EU-FL
315	175/–	175/175
355	175/–	175/175
400	175/–	175/175
450	175/–	175/175
500	175/–	175/175
560	175/–	370/370
630	175/–	370/370
710	175/–	370/370
800	175/175	370/370

Accessories 2 – flexible connector

Operating side	Installation side	Order code
Flexible connector	–	S0
–	Flexible connector	0S
Flexible connector	Flexible connector	SS
Flexible connector	Cover grille	SA
Cover grille	Flexible connector	AS

Arrangement and length of extension pieces [mm]

NG	Operating side FKR-EU / FKR-EU-FL	Installation side FKR-EU / FKR-EU-FL
315	–/–	175/175
355	–/–	175/175
400	–/–	175/175
450	–/–	175/175
500	–/–	175/175
560	–/–	370/370
630	–/–	370/370
710	–/175	370/370
800	175/175	370/370

Accessories 2 – extension piece

Open blade protrusion [mm]

NG	315	355	400	450	500	560	630	710	800
x	-270	-250	-230	-200	-175	-145	-110	-70	-25
y	25	45	70	90	115	145	180	220	265

Open blade protrusion [mm]

NG	315	355	400	450	500	560	630	710	800
x	-240	-220	-200	-170	-145	-115	-80	-40	5
y	55	75	100	125	150	180	215	255	300

Note:
The movement of the damper blade must not be obstructed by any accessory. The distance between the tip of the open damper blade and any accessory (moulded part, etc.) must be at least 50 mm.

Attachment – Limit switch

Attachment	Order code
Limit switch for damper blade position CLOSED	Z01
Limit switch for damper blade position OPEN	Z02
Limit switches for damper blade positions CLOSED and OPEN	Z03

Attachment	Order code
Limit switch for damper blade position CLOSED	Z01EX
Limit switch for damper blade position OPEN	Z02EX
Limit switches for damper blade positions CLOSED and OPEN	Z03EX

Type of actuation	Release mechanism	Labelling	Ambient temperature	Maximum airflow velocity
Spring mechanism	Fusible link	II 2 D c T80 °C II 2 G c IIC T6	-40 – 40 °C	8 m/s
Spring mechanism	Fusible link and limit switch	II 2 D c T80 °C II 2 G c IIC T6	-20 – 40 °C	8 m/s

Attachment – Spring return actuator

Attachment	Order code
Spring return actuator 230 V (Belimo)	Z43
Spring return actuator 24 V (Belimo)	Z45
Spring return actuator 24 V (Belimo) including power supply unit BKN230-24-C-MP TR	Z60
Spring return actuator 24 V (Belimo) including power supply unit BKN230-24-C-MP TR and control module BKS24-1 TR	Z61
Spring return actuator 24 V (Belimo) including power supply unit BKN230-24-C-MP TR and control module BKS24-1 TR	Z43S
Spring return actuator 24 V (Siemens)	Z45S

Attachment – Spring return actuator in Ex construction

Attachment	Order code
ExMax-15-BF TR	ZEX1
RedMax-15-BF TR	ZEX3

Type of actuation	Release mechanism	Labelling	Ambient temperature	Maximum airflow velocity
ExMax-15-BF TR	ExPro-TT *	II 2 D c T80 °C II 2 G c IIC T6	-40 – 40 °C	10 m/s
RedMax-15-BF TR	ExPro-TT *	II 3 D c T80 °C II 3 G c IIC T6	-40 – 40 °C	10 m/s

* Release temperature: 72 °C

Attachment – Spring return actuator and TROXNETCOM

Attachment	Order code
Spring return actuator 24 V and AS-EM	ZA07
Spring return actuator 24 V and MB-BAC-WA1/2	ZB01
Spring return actuator 24 V and LON-WA1/B3	ZL09
Spring return actuator 24 V and WA1/B3-AD	ZL10
Spring return actuator 24 V and WA1/B3-AD230	ZL11
Spring return actuator 24 V and TNC-Linkbox	ZA14

Attachment – Explosion-proof spring return actuator and TROXNETCOM

Attachment	Order code
ExMax-15-BF TR and AS-EM/C	ZEX2
RedMax-15-BF TR and AS-EM/C	ZEX4

Attachment – Duct smoke detectors

Attachment	Order code
Duct smoke detector	RM-O-3-D
Duct smoke detector	RM-O-VS-D

Duct smoke detectors are attachments and to be ordered separately.
The duct smoke detector can only be mounted onto an even surface, e.g. a rectangular duct

Downloads

product information

Product data sheet Type FKR-EU

FKR-EU_PD_2021_07_09_DE_en Product data sheet 2 MB pdf

certificates

ATEX EC declaration FKR-EU

CE_2019_08_ATEX_FKR-EU_de_en Certificate 130 KB pdf
Declaration of hygiene conformity FKR-EU

FKR-EU_HC_2020_06_05_DE_en Certificate 1,9 MB pdf
Declaration of performance FKR-EU

FKR-EU_DoP_2021_07_DE_en Certificate 380 KB pdf
EC declaration of conformity FKR-EU

FKR-EU_CE_2020_03_GB_en. Certificate 310 KB pdf
Leakage classification of TROX ventilation components

Leckageklassifizierung-FK2-EU-v1_HC_2021_05_19_DE_en Certificate 670 KB pdf

operation manuals

Additional Manual Conversion kits FKR-EU

A00000057444/12/2016 Manual 870 KB pdf
Installation and operating manual FKR-EU

FKR-EU_IOM__M375EE3_V5_2021_05_DE_en Installation and operating manual 7,5 MB pdf
Short version Installation and operating manual FKR-EU

FKR-EU_SV_IOM_M375EE3_V5_2021_06_DE_en Short version 2,8 MB pdf
Supplementary installation manual - Type FK-EU ODA and FKR-EU ODA

A00000074707 Supplementary installation manual 390 KB pdf

TROX Services

Productsearch A-Z Find out quickly and simply.

TROX Easy Product Finder Fast. Reliable. Innovative.

Tour de Competence Competence - exciting staged.

By clicking the button, you allow us to provide you with an excellent website experience and easy shopping processes. These cookies include ones that are necessary for the operation of the site and for the control of our services and applications, as well as ones that are used solely for statistical purposes, for convenience settings or to display personalized content. You can decide which categories you want to allow and you can adjust the data utilisation settings based on your individual requirements. Please note that, depending on the settings that you have selected, all functionalities of the page might not be available. You can change your selection at any time.

TECHNICALLY NECESSARY

These cookies are necessary for the proper functioning of our website and cannot be disabled. As a rule, these cookies are set only in response to actions taken by you, such as setting your privacy preferences or filling the shopping cart. In addition, security-relevant functionalities or support via a dedicated webchat are integrated, including all session cookies from TROX set after you log in as a customer. You can set your browser to block these cookies or notify you about them. As a result, however, some areas of the website might not function as intended.

STATISTICS AND WEBSITE ANALYSIS

These cookies make it possible to collect data for statistics and analysis so that TROX can measure the performance of the websites visited, identify technical problems and find starting points for optimisation. They may be set by us or by third parties whose services we use on our sites. Users also help to identify, for example, which pages are used most frequently or only rarely or how people navigate between web pages. All information used by third parties is aggregated and anonymised.

FKR-EU

Type FKR-EU

For large diameters, with or without a flange

General Information

Technical information

Function, Technical data, Quick sizing, Specification text, Order code

Dimensions, Product details

ODA constructions, Accessories 1, Accessories 2, Attachment

ODA construction

Accessories 2 – cover grille

Accessories 2 – flexible connector

Accessories 2 – extension piece

Attachment – Limit switch

Attachment – Spring return actuator

Attachment – Spring return actuator in Ex construction

Attachment – Spring return actuator and TROXNETCOM

Attachment – Duct smoke detectors

Downloads

product information

Product data sheet Type FKR-EU

certificates

ATEX EC declaration FKR-EU

Declaration of hygiene conformity FKR-EU

Declaration of performance FKR-EU

EC declaration of conformity FKR-EU

Leakage classification of TROX ventilation components

operation manuals

Additional Manual Conversion kits FKR-EU

Installation and operating manual FKR-EU

Short version Installation and operating manual FKR-EU

Supplementary installation manual - Type FK-EU ODA and FKR-EU ODA

FKR-EU conversion from manual operation to operation with explosion-proof actuator

FKR-EU- Conversion to an explosion-proof limit switch

FKR-EU Mounting limit switch

FKR-EU conversion from manual operation to operation with explosion-proof actuator

TROX Services

Type FKR-EU

For large diameters, with or without a flange

General Information

Technical information

Function, Technical data, Quick sizing, Specification text, Order code

Dimensions, Product details

ODA constructions, Accessories 1, Accessories 2, Attachment

ODA construction

Accessories 2 – cover grille

Accessories 2 – flexible connector

Accessories 2 – extension piece

Attachment – Limit switch

Attachment – Spring return actuator

Attachment – Spring return actuator in Ex construction

Attachment – Spring return actuator and TROXNETCOM

Attachment – Duct smoke detectors

Downloads

product information

Product data sheet Type FKR-EU

certificates

ATEX EC declaration FKR-EU

Declaration of hygiene conformity FKR-EU

Declaration of performance FKR-EU

EC declaration of conformity FKR-EU

Leakage classification of TROX ventilation components

operation manuals

Additional Manual Conversion kits FKR-EU

Installation and operating manual FKR-EU

Short version Installation and operating manual FKR-EU

Supplementary installation manual - Type FK-EU ODA and FKR-EU ODA

FKR-EU conversion from manual operation to operation with explosion-proof actuator

FKR-EU- Conversion to an explosion-proof limit switch

FKR-EU Mounting limit switch

FKR-EU conversion from manual operation to operation with explosion-proof actuator

TROX Services

TECHNICALLY NECESSARY

STATISTICS AND WEBSITE ANALYSIS

CONVENIENCE AND PERSONALISATION

FOR THE BEST TROX EXPERIENCE
