X-TAIRMINAL

Control unit with X-TAIRMINAL software for control, monitoring and regulation of TROX control systems

■ 16:9 touch display (full HD widescreen)
■ Screen diagonal 15,6" or 21,5"
■ Pre-installed browser-based X-TAIRMINAL software
■ Quickly adjust the components
■ Project-specific presentation of TROX ventilation and fire protection solutions
■ Central display of current operating values, alarms and trends

Optional equipment and accessories
■ Surface-mounted casing with cable entry plate

Product successfully added to cart

General information

Application
  • Operating device based on Windows 11 Enterprise LTSC 64-bit edition
  • 16:9 touch display with PCAP multi-finger touch sensor
  • Display of operating values and trends of TROX control systems
  • Changes to operating modes and influencing variables independent of management and control equipment (MCE)
Monitoring, control and regulation of TROX subsystems:
  • X-CUBE (control of air handling units)
  • X-AIRCONTROL (demand-based room control)
  • TROXNETCOM (control of fire and smoke protection systems in air conditioning and ventilation systems)
  • FSL/SCHOOLAIR (decentralised ventilation solutions)
  • EASYLAB (system for laboratory air management)

Construction
  • Screen diagonal 15,6"
  • Screen diagonal 21,5"

Parts and characteristics
  • 16:9 touch display (full HD widescreen) with glass front in various display sizes
  • Panel PC with 128 GB memory (M.2 3D-TLC SATA)
  • Metal casing with seal and fixing brackets

Commissioning
Note during installation:
  • Do not remove or damage the seal on the edge of the display (otherwise the IEC protection class IP65 cannot be guaranteed)
  • Tighten the threaded pin of the fixing brackets with a maximum of 0.8 NM

Useful additions
  • Surface-mounted casing with cable entry plate (optional)
The available accessories, such as the cable entry plate or the external power supply unit, are also available as spare parts. Further information can be found in our spare parts documentation/spare parts price list.

Technical information

  • FUNCTION
  • TECHNICAL DATA
  • ORDER CODE
  • SPECIFICATION TEXT

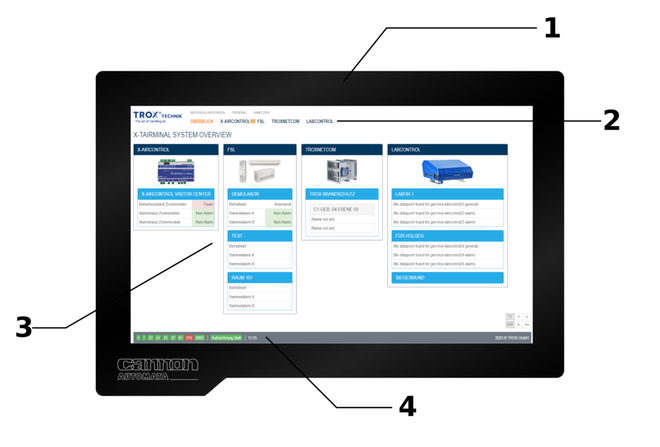

1 Touch display
2 System listing
3 Value display
4 Connection status

The X-TAIRMINAL consists of a touch display and an integrated panel PC with supplied X-TAIRMINAL software. The unit provides an overview of various systems (X-CUBE, XAIRCONTROL, TROXNETCOM, FSL/SCHOOLAIR, EASYLAB) with the most important operating values. Access to the proprietary web visualisations of the individual systems is possible via the user interface.
The display provides an overview page with the unit groups, and a navigation bar for navigating to the unit groups with indication of a fault in the unit group. The number of warnings (orange) and errors (red) in this system are also shown. Click on the picture or use the navigation to get to the details of a system. For each system participant, there is a box with more detailed information than on the general overview page. Clicking on the photo will take you to the detail page of the specific unit.
In addition, there is a status line with connection status between the web server and the communication service as well as between the individual systems. The tooltip indicates which system is involved. (Red: no connection, Green: connection OK, Yellow: simulation for test purposes only).
A trend view lets the user select the time period and various data points (e.g. outdoor temperature). Trends can be displayed in chart form or downloaded as a CSV file according to preference.
Under the trend configuration, the measuring interval of data point groups can be set and data recording can be started or stopped.

Screen diagonal

15.6"

21.5"

Resolution

1920 × 1080 Pixel

1920 × 1080 pixels

Size (W × H x D)

399 × 260 × 75 mm

533 × 339 × 75 mm

Supply voltage

24 V DC

Power consumption

approx. 40 W

Display format

16:9 (Widescreen)

Touch display

PCAP multi-finger touch sensor behind anti-reflective tempered glass

Casing

Metal

Installation

Landscape format, with fixing brackets

Protection level

IP65

Panel PC

varying processor and RAM: at least 4 GB, memory: 128 GB

Interfaces

2 × Gigabit Ethernet (GbE), USB 3.2

Operating system/Software

Windows 11 IoT ENT. 2021 LTSC / X-TAIRMINAL

XT–CP15/H
|||
123

1 Type
XT X-TAIRMINAL control unit


2 Display
CP15 Touch display, 15.6" screen diagonal
CP21 Touch display, 21.5" screen diagonal


3 Accessories
No entry: without accessories
H with surface‑mounted housing
PSU with power supply unit
HPSU with surface-mounted housing and power supply unit


Order example: XT-CP15/H

TypeXT – Control panel X-TAIRMINAL
DisplayTouch display, 15.6" screen diagonal
Accessorieswith surface‑mounted housing
This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product Finder design programme.


Specification text
PCAP multi-touch glass front for user interface with advanced gesture control. Mounting is done with fixing brackets in the machine casing.


Systemanforderungen
  • 16:9 touch display (full HD widescreen)
  • Screen diagonal 15,6" or 21,5"
  • Processor varies depending on Panel PC
  • At least 4 GB RAM
  • Memory 120 GB M.2 3D-TLC SerialATA (SATA)
  • Power supply: 24 V DC
  • Operating system: Windows 11 IoT ENT. 2021 LTSC

Interface information
  • 2 × GbE Ethernet
  • USB 3.2

Visualisierung der Systeme über X-TAIRMINAL
  • Overview page with the system groups
  • Navigation bar for selecting the systems:
    • X-AIRCONTROL
    • X-CUBE/X-CUBE Compact Control
    • FSL Control/SCHOOLAIR
    • LABCONTROL
    • TROXNETCOM
  • Display of faults and warnings in the system overview
  • Detailed view of a system possible
  • Overview of the most important values in a system
  • Further unit details via the illustration of the respective unit
Display status between web server and communication service
  • Red: no connection
  • Green: connection OK
Display of date, time and trend recording
  • Access to the proprietary web visualisations of the systems:
    • Proprietary web visualisations can be added
    • Individual texts can be added - e.g. instructions
  • Trend view
    • Set the data points
    • Selection and determination of time period
    • Selection of a preset time period (e.g. over the last 7
    • days)
    • Selected values in diagram form
    • Search for data points
    • Data export via *.csv file

Downloads

product information

  • Product data sheet X-TAIRMINAL

    X-TAIRMINAL_PD_2026_04_13_DE_en Product data sheet 840 KB pdf
