TYPE EASY

Quick and easy handling

Control components for VAV terminal units, to be mounted on the terminal unit for easy operation

  • Simplified ordering and on-site assignment to rooms as selection is based on the nominal size of the duct
  • Rapid volume flow rate setting without additional device
  • Indicator light simplifies functional checking
  • Proven technology of the Compact volume flow controllers
  • Suitable for constant and variable volume flows as well as for Vmin / Vmax switching

Application

Application

  • Electronic volume flow controllers of Type Easy are compact, all-in-one control devices for VAV terminal units
  • Dynamic differential pressure transducer, electronic controller, and actuator are fitted together in one casing
  • Suitable for different control tasks depending on how the input for the setpoint value signal is used
  • The output signals of the room temperature controller, central BMS, air quality controller or similar units control the volume flow rate setpoint
  • Override control by means of switches or relays
  • Volume flow rate actual value is available as linear voltage signal

Standard filtration in comfort air conditioning systems allows for use of the controller in the supply air without additional dust protection. Since a partial volume flow is passed through the transducer in order to measure the volume flow rate, please note:

  • With heavy dust levels in the room, suitable extract air filters must be provided.
  • If the air is polluted with fluff or sticky particles, or if it contains aggressive media, Easy controllers cannot be used

Application

  • Electronic volume flow controllers of Type Easy are compact, all-in-one control devices for VAV terminal units
  • Dynamic differential pressure transducer, electronic controller, and actuator are fitted together in one casing
  • Suitable for different control tasks depending on how the input for the setpoint value signal is used
  • The output signals of the room temperature controller, central BMS, air quality controller or similar units control the volume flow rate setpoint
  • Override control by means of switches or relays
  • Volume flow rate actual value is available as linear voltage signal

Standard filtration in comfort air conditioning systems allows for use of the controller in the supply air without additional dust protection. Since a partial volume flow is passed through the transducer in order to measure the volume flow rate, please note:

  • With heavy dust levels in the room, suitable extract air filters must be provided.
  • If the air is polluted with fluff or sticky particles, or if it contains aggressive media, Easy controllers cannot be used

Description

Construction

  • LMV-D3AL-F for LVC
  • 227V-024T-05-013 for LVC
  • LMV-D3A-F for TVR
  • 227V-024T-05-002 für TVR
  • 227V-024T-15-002 for TVJ, TVT
  • SMV-D3A for TVT
  • LMV-D3A for TZ-Silenzio, TA-Silenzio, TVZ, TVA

Operating modes

Variable volume flow

  • Vmin: minimum volume flow rate
  • Vmax: maximum volume flow rate


Constant value

  • Vmin: constant volume flow rate
  • Vmax: 100 %

Signal voltage range

  • 0 – 10 V DC

Parts and characteristics

  • Sensor for dynamic differential pressure measurements
  • Mechanical stops for limiting the damper blade positions
  • Actuators with overload protection
  • Release button to allow for manual operation

Construction

  • LMV-D3AL-F for LVC
  • 227V-024T-05-013 for LVC
  • LMV-D3A-F for TVR
  • 227V-024T-05-002 für TVR
  • 227V-024T-15-002 for TVJ, TVT
  • SMV-D3A for TVT
  • LMV-D3A for TZ-Silenzio, TA-Silenzio, TVZ, TVA

Operating modes

Variable volume flow

  • Vmin: minimum volume flow rate
  • Vmax: maximum volume flow rate


Constant value

  • Vmin: constant volume flow rate
  • Vmax: 100 %

Signal voltage range

  • 0 – 10 V DC

Parts and characteristics

  • Sensor for dynamic differential pressure measurements
  • Mechanical stops for limiting the damper blade positions
  • Actuators with overload protection
  • Release button to allow for manual operation

Technical information

Function, Technical data, Order code

  • FUNCTION
  • TECHNICAL DATA
Principe de fonctionnement – Régulateurs Easy et Compact
00132245_0
① Differential pressure transducer
② Actuator
③ Volume flow controller
④ Setpoint value signal


00132245_0
00132287_0

Functional description

VAV terminal units control the volume flow in a closed loop, i.e. measurement – comparison – control.

The volume flow rate is determined by measuring the differential pressure (effective pressure). For this purpose the VAV terminal unit is fitted with a differential pressure sensor.

The integral differental pressure transducer transforms the effective pressure into a voltage signal. The volume flow rate actual value is hence available as a voltage signal. The factory setting is such that 10 V DC always corresponds to the nominal volume flow rate (Vnom).

The volume flow rate setpoint value comes from a higher-level controller (e.g. room temperature controller, air quality controller, central BMS) or from switch contacts. Variable volume flow control results in a value between Vmin and Vmax. It is possible to override the room temperature control, e.g. by a complete shut-off of the duct.

The controller compares the volume flow rate setpoint value to the actual value and controls the integral actuator accordingly.

The volume flow rate parameters Vmin and Vmax can be set on potentiometers.

Volume flow control

  • The volume flow controller works independent of the duct pressure
  • Differential pressure fluctuations do not result in permanent volume flow rate changes
  • To prevent the control from becoming unstable, a dead band is allowed within which the damper blade does not move.
  • The factory set volume flow rate parameters can be altered by the customer

Functional description

VAV terminal units control the volume flow in a closed loop, i.e. measurement – comparison – control.

The volume flow rate is determined by measuring the differential pressure (effective pressure). For this purpose the VAV terminal unit is fitted with a differential pressure sensor.

The integral differental pressure transducer transforms the effective pressure into a voltage signal. The volume flow rate actual value is hence available as a voltage signal. The factory setting is such that 10 V DC always corresponds to the nominal volume flow rate (Vnom).

The volume flow rate setpoint value comes from a higher-level controller (e.g. room temperature controller, air quality controller, central BMS) or from switch contacts. Variable volume flow control results in a value between Vmin and Vmax. It is possible to override the room temperature control, e.g. by a complete shut-off of the duct.

The controller compares the volume flow rate setpoint value to the actual value and controls the integral actuator accordingly.

The volume flow rate parameters Vmin and Vmax can be set on potentiometers.

Volume flow control

  • The volume flow controller works independent of the duct pressure
  • Differential pressure fluctuations do not result in permanent volume flow rate changes
  • To prevent the control from becoming unstable, a dead band is allowed within which the damper blade does not move.
  • The factory set volume flow rate parameters can be altered by the customer


Easy controller LMV-D3AL-F

Supply voltage (AC)

24 V AC ± 20 %, 50/60 Hz

Supply voltage (DC)

24 V DC −10/+20 %

Power rating (AC)

3.5 VA max.

Power rating (DC)

2 W max.

Running time for 90°

120 – 150 s

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.5 mA max.

IEC protection class

III (protective extra-low voltage)

Protection level

IP 20

EC conformity

EMC to 2014/30/EU, low voltage to 2014/35/EU


Easy controller 227V-024T-05-013

Supply voltage (AC)

24 V AC ± 20 %, 50/60 Hz

Supply voltage (DC)

24 V DC ± 20 %

Power rating (AC)

5 VA max.

Power rating (DC)

3 W max.

Running time for 90°

100 s

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.5 mA max.

IEC protection class

III (protective extra-low voltage)

Protection level

IP 20

EC conformity

EMC according to 2014/30/EU


Easy controllers LMV-D3A and LMV-D3A-F

Supply voltage (AC)

24 V AC ± 20 %, 50/60 Hz

Supply voltage (DC)

24 V DC −10/+20 %

Power rating (AC)

5 VA max.

Power rating (DC)

2.5 W max.

Running time for 90°

110 – 150 s

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.5 mA max.

IEC protection class

III (protective extra-low voltage)

Protection level

IP 20

EC conformity

EMC according to 2014/30/EU


Easy controller 227V-024T-05-002

Supply voltage (AC)

24 V AC ± 20 %, 50/60 Hz

Supply voltage (DC)

24 V DC ± 20 %

Power rating (AC)

5 VA max.

Power rating (DC)

3 W max.

Running time for 90°

100 s

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.5 mA max.

IEC protection class

III (protective extra-low voltage)

Protection level

IP 20

EC conformity

EMC according to 2014/30/EU


Easyregler 227V-024T-15-002

Versorgungsspannung (Wechselspannung)

24 V AC ± 20 %, 50/60 Hz

Versorgungsspannung (Gleichspannung)

24 V DC ± 20 %

Anschlussleistung (Wechselspannung)

Max. 5 VA

Anschlussleistung (Gleichspannung)

Max. 3 W

Laufzeit für 90°

150 – 270 s

Eingang Sollwertsignal

0 – 10 V DC, Ra > 100 kΩ

Ausgang Istwertsignal

0 – 10 V DC, max. 0,5 mA

Schutzklasse

III (Schutzkleinspannung)

Schutzgrad

IP 20

EG-Konformität

EMV nach 2014/30/EU


Easy controller SMV-D3A

Supply voltage (AC)

24 V AC ± 20 %, 50/60 Hz

Supply voltage (DC)

24 V DC −10/+20 %

Power rating (AC)

6 VA max.

Power rating (DC)

3 W max.

Running time for 90°

110 – 150 s

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.5 mA max.

IEC protection class

III (protective extra-low voltage)

Protection level

IP 20

EC conformity

EMC according to 2014/30/EU


Variants, Product details

  • Variants
  • PRODUCT DETAILS
Easy controller LMV-D3AL-F
00182398_0


00182398_0
00137616_0
00137597_0
00137653_0
00232765_0
00137600_0


Part number Type Type of VAV terminal unit

M466EU1

LMV-D3AL-F

LVC

M466EU2

227V-024T-05-013

LVC

M466ES1

LMV-D3A-F

TVR

M466DC3

227V-024T-05-002

TVR

A00000053055

227V-024T-15-002

TVJ, TVT

M466ES3

SMV-D3A

TVT

M466ES2

LMV-D3A

TZ-Silenzio, TA-Silenzio, TVZ, TVA


Select nominal size
00111210_0.


00111210_0.
00111216_0.
00111222_0.

The Easy principle

The Easy principle

Electrical connection, Commissioning, Characteristics

  • Electrical connection
  • INBETRIEBNAHME
  • CHARACTERISTICS

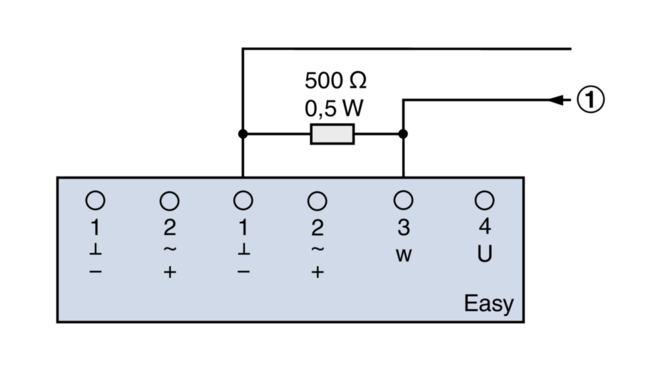

Répartition du bornier
00111204_0.
1 ⊥, –: Ground
2 ~, +: Supply voltage 24 V
3 w: Setpoint value signal 0 – 10 V DC
4 U: Actual value signal 0 – 10 V DC


00111204_0.
00111069_0..
00111711_0.
00111010_0....
00111018_0...
00111063_0..
00182460_0
Échelle de réglage de débit pour TVR-Easy
00111002_0...

Chaque unité terminale VAV porte un autocollant avec une échelle de réglage de débit afin de déterminer les paramétrages sur site (voir exemple : TVR-Easy, grandeur nominale 200). Les pourcentages se rapportent à la plage de réglage qui peut être utilisé.


00111002_0...
00110978_0...
00110984_0...
00110990_0...
00110996_0...

Commissioning

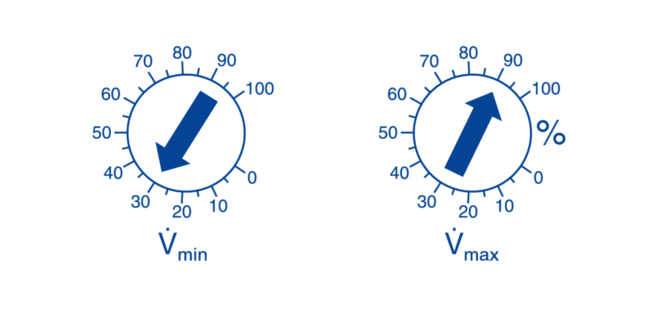

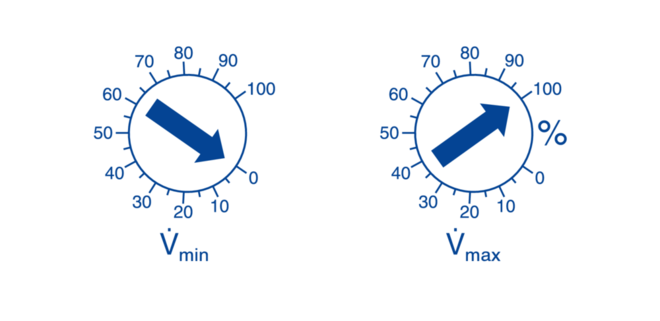

  • Use the potentiometer to set the minimum or maximum volume flow rate on site
  • Take the adjustment value from the volume flow rate scale (sticker on each VAV terminal unit)
  • Comply with the volume flow rate control range, do not set a volume flow rate which is below the minimum flow rate
  • Volume flow rate range of LVC, TVR, TZ-Silenzio, TA-Silenzio, TVZ and TVA: 10 – 100%
  • Volume flow rate range of TVJ and TVT: 20 – 100%
  • Once the VAV terminal unit has been installed and wired, and the volume flow rate has been set, the unit is ready for operation
  • Remove the transparent cover of the Easy controller only temporarily for wiring and commissioning

Commissioning

  • Use the potentiometer to set the minimum or maximum volume flow rate on site
  • Take the adjustment value from the volume flow rate scale (sticker on each VAV terminal unit)
  • Comply with the volume flow rate control range, do not set a volume flow rate which is below the minimum flow rate
  • Volume flow rate range of LVC, TVR, TZ-Silenzio, TA-Silenzio, TVZ and TVA: 10 – 100%
  • Volume flow rate range of TVJ and TVT: 20 – 100%
  • Once the VAV terminal unit has been installed and wired, and the volume flow rate has been set, the unit is ready for operation
  • Remove the transparent cover of the Easy controller only temporarily for wiring and commissioning

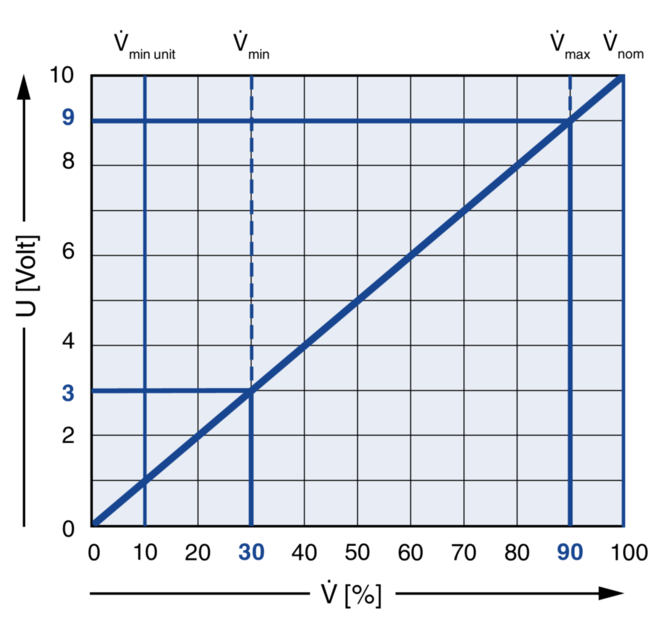

Characteristic of the setpoint value signal
00111698_0.


00111698_0.
00277465_0
00111704_0.
00277459_0

Downloads

product information

  • Product Data Sheet Type Easy

    Product Data Sheet 21 MB pdf

operation manuals

  • Installation and commissioning instruction type Easy

    EASY_IM_A00000073971_V2_2020_03_DE_en Installation and commissioning instruction 1,5 MB pdf

TROX Services

Share page

Recommend this page

Recommend this page by sending a link by mail.

Fields marked with an (*) are required fields.

Share page

Thank you for your recommendation!

Your recommendation has been sent and should arrive shortly.

Contact

We are here for you

Please specify your message and type of request
Tel.: +49 (0)2845 / 202-0 | Fax: +49 (0)2845/202-265

Attachment (max. 10MB)
Your message
Your message to

Fields marked with an (*) are required fields.

Contact

Thank you for your message!

Your message is send and will be processed shortly.
Our department for Service-Requests will contact you asap.
For general question regarding products or services you can also call:
Tel.: +49 (0)2845 / 202-0 | Fax: +49 (0)2845/202-265

Contact

We are here for you

Please specify your message and type of request
Tel.: +49 (0)2845 / 202-0 | Fax: +49 (0)2845/202-265

Attachment (max. 10MB)
Your message
Your message to

Fields marked with an (*) are required fields.

Contact

Thank you for your message!

Your message is send and will be processed shortly.
Our department for Service-Requests will contact you asap.
For general question regarding products or services you can also call:
Tel.: +49 (0)2845 / 202-0 | Fax: +49 (0)2845/202-265

TROX Logo
By clicking the button, you allow us to provide you with an excellent website experience and easy shopping processes. These cookies include ones that are necessary for the operation of the site and for the control of our services and applications, as well as ones that are used solely for statistical purposes, for convenience settings or to display personalized content. You can decide which categories you want to allow and you can adjust the data utilisation settings based on your individual requirements. Please note that, depending on the settings that you have selected, all functionalities of the page might not be available. You can change your selection at any time.
Change Settings
