Increasingly, the installation of suspended ceilings is being dispensed with in old and new buildings. The air exchange then often takes place via the corridors through the wall.
The new CHM and CHS wall diffusers offer the perfect solution here, not only visually but also acoustically, both for supply air and extract air, or as a supply/extract air combination. The integrated sound insulation of the wall elements also ensures low acoustic values for the user.
The multifunctional CHM also has an optional volume flow limiter and scores with variable designs in the choice of diffuser types. With our PURELINE slot diffuser, for example, a particularly clean air discharge can be achieved without dirt deposits on the wall.
The wall diffusers are supplemented by the CFS slot diffusers and the Crossflow element CFE. These were developed for installation in lightweight partition walls and have effective cross-talk sound insulation. The CFE provides the necessary air exchange, especially in rooms that have been subsequently partitioned off. Both types are extremely adaptable. The height can be selected in mm increments. For the CFE, the length can also be adjusted in mm increments.
Optimal air distribution through the wall with the CFS
Aesthetic wall installation without suspended ceilings
Available in various nominal widths for individual adaptation to your requirements
Your choice of air diffusers, designs and colours
Uniform air distribution
No suspended ceilings required
From different connection options to different airflow directions, number of slots, different installation options and designs; with our versatile and flexible slot diffusers we always have the right solution for you - for every requirement.
The example of our Pureline slot diffuser for the ceiling shows you the almost endless choices available when designing the right slot diffuser.
Well suited Suitable
| PURELINE 18 |
PURELINE 35 |
PURELINE 50  |
SB |
KS  |
CFS |
CHS |
CHM |
CFE |
|
|---|---|---|---|---|---|---|---|---|---|
| Preferred use | |||||||||
| Office areas | |||||||||
| Hallways | |||||||||
| Entrance areas | |||||||||
| Fresh food counters | |||||||||
| Storage areas | |||||||||
| Training and meeting rooms | |||||||||
| Retail areas | |||||||||
| Swimming pools/Wellness areas | |||||||||
| Cooling | |||||||||
| Heating | |||||||||
| Volume flow rate/m at LWA = 35 dB(A) | |||||||||
| 1 Slot | 65 - 72 m³/h | 105 - 114 m³/h | 143 - 157 m³/h | 115 m³/h | 60 - 100 m³/h | 94 - 158 m³/h | 95 - 185 m³/h | Usual volume flow rates achieve lower sound power levels than 35 dB(A) | |
| 2 Slots | 115 - 125 m³/h | 167 - 181 m³/h | 238 - 267 m³/h | 90 - 120 m³/h | 117 - 217 m³/h | 160 - 285 m³/h | |||
| 3 Slots | 219 - 238 m³/h | 343 - 390 m³/h | 95 - 120 m³/h | 129 - 212 m³/h | 285 m³/h | 175 - 200 m³/h | |||
| 4 Slots | 257 - 300 m³/h | 457 - 514 m³/h | 120 m³/h | 340 m³/h | |||||
| Installation location | |||||||||
| Ceiling | |||||||||
| Wall | |||||||||
| Air type | |||||||||
| Supply air | |||||||||
| Extract air | |||||||||
| Supply and extract air | |||||||||
| Transferred air | |||||||||
| Airflow pattern | |||||||||
| Horizontal | |||||||||
| Slanted | |||||||||
| Vertical | |||||||||
| Different airflow directions at the same time | |||||||||
| Further options | |||||||||
| 2 or more connecting spigots | |||||||||
| Continuous linear arrangement | |||||||||
| Standard dimension oriented to the drywall grid | |||||||||
| Sound-absorbing property | |||||||||
| Plenum box configurable | |||||||||

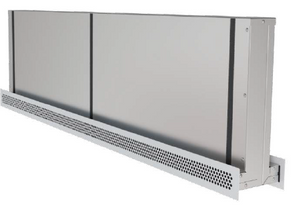

CFE
Crossflow elements offer building owners and architects with special requirements additional design options for air distribution
Optional equipment
CHM
CFS

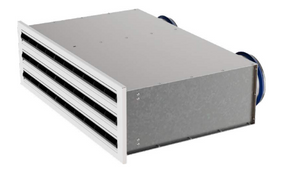

Slot diffusers for wall installation, with adjustable air control elements
Optional equipment
CHS
Wall diffusers with adjustable air control blades and optional splitter for cross-talk sound attenuation for different wall thicknesses
Optional equipment
TROX air diffusers are ‘Made in Germany’ and stand for the highest quality and efficiency. Convince yourself of our expertise and discover more impressive reference projects!
