ZLAC

FOR REMOVING GASEOUS CONTAMINANTS AND ODOURS

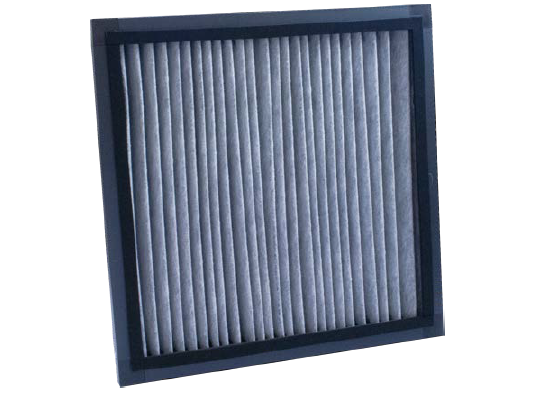

Filter insert with activated carbon and a pre-filter fleece for separating gaseous substances

For improving room air quality in offices, hotels, and airports
With pre-filter fleece ePM10
Compact design style with low installation depth
Tested according to DIN EN ISO 10121-3

General information

Application

Filter insert for the adsorption of gaseous odors and contaminants as well as hydrocarbons or traces of inorganic compounds from the supply and recirculated air

Nominal sizes

B × H × T [mm]

Variants

PF with pre-filter fleece ePM10 according to DIN EN ISO 16890

Options

Optionally with flat seal or continuous seal1
WS: without seal
FNU: Flat seal on the upstream side
FND: Flat seal on the downstream side
FNB: Flat seal on both sides
CSU: Continuous seal on the upstream side
CSD: Continuous seal on the downstream side
CSB: Continuous seal on both sides
FNA: Continuous flat seal around the frame
FNL: Flat seal on the long side
FNS: Flat seal on the short side
1 For more information on optional flat seals and continuous seals, see product details.

Construction

PLA: Frame made of plastic (depth 49, 96 mm)
PLAF: Frame made of plastic with top frame (depth 150 mm)

Construction features

Combination filter made of activated carbon and pre-filter fleece
Pre-filter fleece ePM10 according to DIN EN ISO 16890
Low pressure drops
Tested according to DIN EN ISO 10121-3

Material and surfaces

Granulated activated carbon with a backing layer of nonwoven synthetic fibres

Technical information

Filter depth	48	96	150
Fractional efficiency ePM10 [%]	50	50	50
Initial pressure drop [Pa]	330	150	100
Contaminant according to DIN EN ISO 10121-3	■	■	■
Ozone	LD55	LD55	LD55
SO2	vLD30	vLD30	vLD30
NO2	vLD55	vLD55	vLD55
Toluene	LD65	LD65	LD65

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product

Finder design programme.

Specification text

Filter insert with activated carbon for the separation of gaseous

substances and odours. With pre-filter fleece ePM10 50 % in

accordance with DIN EN ISO 16890. Available in various filter

sizes and installation depths. Filter frame made of plastic (PLA

version); also available as PLAF version with top frame. Various

order options with flat seal or continuous seal.

Nominal sizes

B × H × T [mm]

Options

Optionally with flat seal or continuous seal1
WS: without seal
FNU: Flat seal on the upstream side
FND: Flat seal on the downstream side
FNB: Flat seal on both sides
CSU: Continuous seal on the upstream side
CSD: Continuous seal on the downstream side
CSB: Continuous seal on both sides
FNA: Continuous flat seal around the frame
FNL: Flat seal on the long side
FNS: Flat seal on the short side
1 For more information on optional flat seals and continuous seals, see product details.

Construction

PLA: Frame made of plastic (depth 49, 96 mm)
PLAF: Frame made of plastic with top frame (depth 150 mm)

ZLAC	–	PF	–	PLA	/	592 × 592 × 150	/	FNU
\|		\|		\|		\|		\|
1		2		3		4		5

1 Type

ZLAC Filter insert with activated carbon

2 Variant

PF with prefilter ePM10 50% according to ISO 16890

3 Construction

PLA Frame made of plastic

PLAF Frame made of plastic with flange

4 Nominal size [mm]

Specify width × height × depth

5 Seal

WS without seal

FNU Flat seal on the upstream side

FND Flat seal on the downstream side

FNB Flat seal on both sides

CSU Continuous seal on the upstream side

CSD Continuous seal on the downstream side

CSB Continuous seal on both sides

FNA Continuous flat seal around the frame

FNL Flat seal on the long side

FNS Flat seal on the short side

Downloads

product information

Product data sheet ZLAC

ZLAC_PD_2025_12_16_DE_en Product data sheet 420 KB pdf
