Modbus zone module
X-AIR-ZMO-MOD

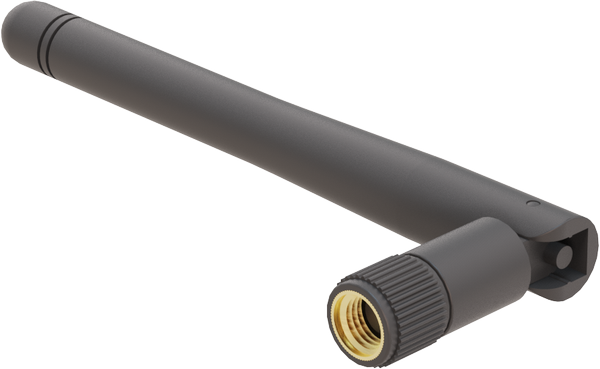

Antenna, part of the supply package


Antenna cable, 50 cm, part of the supply package


Antenna feed-through, part of the supply package


FAM-RADIODUCT

For a radio link connection of TROX X-AIRCONTROL modules mainly through the ventilation duct

■ Patented TROX radio transmission through the ventilation duct
■ Wireless data connection of the X-AIRCONTROL zone modules and zone masters up to the air handling unit
■ Wireless mesh radio system with frequency hopping
■ Plug-and-play connection of the X-AIRCONTROL modules to the RadioDuct ventilation duct radio system
■ With integrated repeater function for range extension
■ Automatic routing of data via the RadioDuct radio systems available in the system
■ Virtually interference-free use due to shielding against external interference and emitted radio radiation
■ Continuous radio link without interference (walls, concrete ceilings) from rooms to the air handling unit

Optional equipment and accessories:
■ PC software: configuration software for the commissioning and diagnosis of the RadioDuct module
■ RJ12 connection cable for easy plug and play

Product successfully added to cart

General information

Application
The RadioDuct duct radio system acts as a wireless data link
  • Between X-AIRCONTROL zone modules and the XAIRCONTROL zone master
  • Among the X-AIRCONTROL zone modules

The system is used whenever laying a bus cable for the connection is very difficult or not even possible. The connection variant has advantages compared to conventional bus cables, especially when it comes to refurbishment and retrofitting.


Depending on the characteristics of the channel system, the radio link range may vary. When using several RadioDuct modules in the duct system, the radio connection is continuously optimised via the module's integrated, self-learning mesh function and frequency hopping. These functions find the best radio path through the duct system for the data packets to be transmitted. For longer distances and branched channel systems, mesh repeaters are available that pick up, amplify and forward the radio signals.

Special characteristics

  • Up to 30 m cable length between RadioDuct module and X-AIRCONTROL zone module and zone master
  • RadioDuct module mountable on the duct or wall
  • Antenna connected to the RadioDuct module by cable, allowing easy and free positioning in the duct
  • Simple commissioning of the radio connection via guided pairing process
  • High operational reliability due to permanent selfmonitoring of the communication between RadioDuct module and X-AIRCONTROL system, as well as the radio mesh connection

Parts and characteristics
  • Plastic casing mountable to the duct or wall
  • Three-colour display of the status of the radio network connection (green, yellow, red)
  • Integral service socket for configuration and diagnosis of the RadioDuct module
  • Antenna for integration in the duct with 50 cm connection cable and antenna holder for duct installation

Useful additions

  • PC software: configuration software for the commissioning and diagnosis of the RadioDuct modules
  • Wireless communication possible for configuration with wireless module BlueCON

Construction features
  • Casing with removable cover for easy access to internal connections and components
  • Easy connection of the X-AIRCONTROL modules through plug-in connections from the outside of the RadioDuct module
  • Easy access to the configuration socket from outside of the RadioDuct module

Materials and surfaces

  • Casing in ABS plastic, UL-V0
  • Casing in blue (RAL 5002)/transparent cover

TECHNICAL INFORMATION

  • FUNCTION
  • SPECIFICATION TEXT
  • ORDER CODE
  • TECHNICAL DATA
The RadioDuct radio system is used to connect X-AIRCONTROL zone modules to the X-AIRCONTROL zone master via a radio link through ducts. In the process, the X-AIR zone modules can each be equipped with a RadioDuct module as shown in the figure above and send their data to the X-AIR zone master. In addition, the X-AIRCONTROL zone modules in the zone can also be connected in the classical manner by means of a cable. In this case, the first zone module sends the data to the XAIRCONTROL zone master by radio (see the figure below).
The RadioDuct system uses every other node in the RadioDuct network to get the data to its destination. In contrast to normal networks, the distribution of many nodes throughout the system is even an advantage here. This is because each node in the RadioDuct network forwards the data packets of the other nodes to their destinations. The system independently searches for the best route to the desired recipient. Such networks are known as mesh networks. Furthermore, the required radio power is adapted to the transmission distance. The radio power can assume a maximum value of 100 mW so that the requirements of the applicable radio standards for the 2.4 GHz band are met. To counteract any interference in the frequency band, the RadioDuct module supports automatic frequency hopping. As a result, the respective radio channel with the least interference is selected throughout.
The connection between the RadioDuct slaves and the RadioDuct master is established via a service tool and a simple pairing process mapped therein. The connection and data exchange take place via an encrypted radio channel with 128-bit AES technology. This technology provides high data security and meets the requirements of data protection standards.
This specification text describes the general characteristics of the product. Texts for variants can be generated with our Easy Product Finder design program.

Specification text

RadioDuct system for data connection of X-AIRCONTROL zone modules with the X-AIRCONTROL zone master via a radio link in the duct.

Area of application

  • Suitable for retrofitting existing systems
  • For areas that are difficult to wire

Operating modes

The RadioDuct module supports 3 operating modes that can be set via the software.
  • RadioDuct master: manages and organises the RadioDuct network and establishes the connection to the XAIRCONTROL zone master
  • RadioDuct zone: participant in a RadioDuct network and establishes the connection to the X-AIRCONTROL zone modules
  • RadioDuct repeater: RadioDuct module for range extension and optimisation of the RadioDuct network

Assembly and installation

  • Plastic housing mountable on ventilation duct or wall
  • Antenna holder for duct installation included in supply package

Electrical connection

  • Plug-in terminals (plug and play) RJ12 socket to the XAIRCONTROL zone module

Supply voltage

  • 24 V AC/DC

System connections

  • Simple system connection to X-AIRCONTROL for further processing and evaluation Modbus/BACnet

Parameter settings

  • Integration of the RadioDuct modules through step-by-step instructions in the PC software
  • Configuration, parameterisation and diagnosis via PC software

Special features

  • Self-organising radio data network (mesh) for the use of several RadioDuct modules
  • Automatic optimisation of the transmission paths
  • Optical LED indicator for the connection and communication status

Factory condition

  • Antenna for integration in the duct with 50 cm connection cable
  • Antenna holder for duct installation included in the supply package
FAM–X-AIR/D32-RD
|||
123

1 Type
FAM Field Application Module

2 Variant
X-AIR X-AIRCONTROL

3 Expansion module
D32-RD RadioDuct

Order example: FAM/X-AIR/D32-RD

TypeFAM
VariantX-AIRCONTROL
Expansion moduleRadioDuct
FAM Module RadioDuct

Supply voltage

24 V AC or DC

Power rating

5 VA

Radio frequency

2.4 Ghz

Maximum radio power

100 mW

Encryption

128 Bit AES


Connection cable X-AIR to RadioDuct

RJ12 plug connection (6P6C)

Cable type AWG26/6C Distance up to 30 m

IEC protection class

III (protective extra-low voltage)

Operating temperature

10 – 50 °C

Protection level

IP20


CE conformity

  • EMC Directive 2014/30/EU
  • EU Radio Equipment Directive RED 2014/53/EU
  • ROHS 2011/65/EU

Weight

500 g

Dimensions

130 × 130 × 60 mm

Note: Additional technical data in the installation and operating manual

Downloads

product information

  • Product data sheet FAM

    FAM---RadioDuct_PD_2026_11_04_DE_en Product data sheet 390 KB pdf

operation manuals

  • Installation and operating manual FAM - RadioDuct

    RadioDuct_IOM_A00000092825_V1_2022_09_GB_en Installation and operating manual 3,7 MB pdf

  • Installation manual FAM - RadioDuct

    Ox_FAM-E_IOM_CD10058_V2_2024_10_GB_en Installation manual 1,8 MB pdf
