Central air handling units

layer

Type X-CUBE compact

With the X-CUBE compact TROX has created a ready-to-operate and pre-configured air handling unit that combines the excellent features of the X-CUBE in the smallest of spaces. These units handle volume flow rates of 600 to 6,000 m³/h and offer a heat recovery efficiency of over 80 % (dry, to EN 308), hence they are the ideal solution for small and midrange applications.

TROX offers nine different X-CUBE compact units with a choice of two different heat recovery systems..

Top performance, small size

  • Volume flow rates of 600 to 6,000 m³/h
  • Maximum energy efficiency
  • Powerful EC fans also for high external differential pressures
  • High level of hygiene (conforms to VDI 6022)
  • Heat recovery with heat wheel or counter flow plate heat exchanger
  • Air filtration with TROX minipleat or NanoWave filters
  • Weatherproof construction variant
  • Ready-to-operate unit (plug and play)
  • Operating side can be changed at a later stage
  • Integral, bus compatible control technology


Advantages at a glance

  • High energy efficiency
  • Unparalleled hygiene
  • Easy installation
  • Safe maintenance
  • Intuitive navigation
  • Seamless integration into modern building management systems
  • Made in Germany

read more

layer

Type X-CUBE CROFCU

The X-CUBE CROFCU is a compact ventilation unit that ensures and maintains the essential conditions for all classes of clean rooms. The secondary unit for use with centralised ventilation and air conditioning systems is typically installed in false ceilings. It dissipates high thermal loads and requires only a low fresh air volume flow. The primary air system (patent pending) allows for the direct removal of exhaust air while fresh air is supplied to the room.

  • Suitable for all clean room concepts
  • Pumped chilled water cooling system with room temperature control
  • Increased flexibility if several units are connected
  • Energy-efficient plug fan with EC motor
  • Addition of fresh air from 50 m3/h to 2000 m3/h
  • Monitoring of filters downstream
  • Control of airlocks for people and material
  • Contamination check by means of pressure zone control
  • Space-saving due to smaller ducts
  • Simple and quick commissioning due to plug and play

read more

layer

Type X-CUBE

With the TROX X-CUBE, an air handling unit with unlimited configuration options, TROX sets a new standard in the AHU market and defines considerably higher levels of quality, performance, flexibility, reliability, energy efficiency, and hygiene. Compelling all down the line. TROX now offers everything from a single source: air handling units and components – ideally complementary to each other.
For even more energy efficiency and better quality with less coordination effort.

  • For the ventilation of rooms and entire buildings, for filtering, heating, and cooling the air, for heat recovery as well as for humidification and dehumidification, and for volume flow rates of up to 86,000 m³/h
  • Flexible frame construction, completely covered externally by thermally insulated panels or doors
  • Easy installation, maintenance and cleaning
  • Significantly reduced wiring workload due to flexible control and regulation based on fieldbus technology.
  • Special hygiene construction variant according to AHU Guideline 01 (RLT-Richtlinie 01) for use in hospitals and laboratories; weatherproof construction variant for outdoor installation

read more

TROX automatically checks energy efficiency according to ecodesign directive

With the adoption of the Kyoto Protocol, the European Union has committed itself to reducing CO2 emissions by at least 20 percent by 2020. In order to reach this goal, the EU adopted already in 2005 the Energy-Using Products Directive. The Energy-Related Products Directive 2009/125/EG, colloquially called 'ecodesign directive', defines minimum requirements for many energy-related products. Within the European Union, air handling units have to meet new energy efficiency requirements from 1 January 2016 onwards. The next step after that will become effective two years later, on 1 January 2018.

TROX air handling units of Type X-CUBE are configured to individual customer requirements with a dedicated configuration software. This software automatically considers the new energy efficiency requirements for all X-CUBE air handling units and hence ensures their correct configuration. All X-CUBE air handling units that are produced and placed on markets of the European Union from 1 January 2016 onwards meet the new requirements.

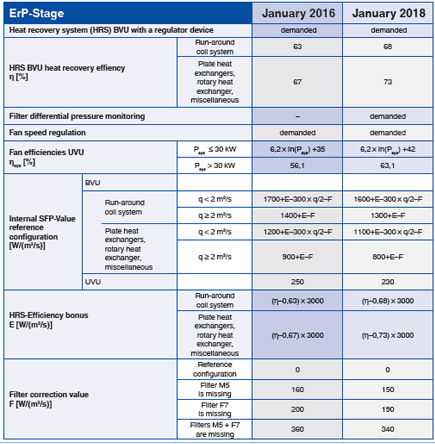

Please find attached the table ErP – Efficiency Requirements as of 2016


ErP – Efficiency Requirements as of 2016
