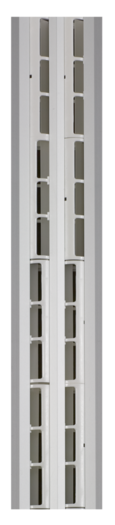

VSD50-1-AK

Installation in continuous ceilings

Concealed screw fixing

Alternating horizontal air discharge

Plenum box with damper blade (optional)

Configure now

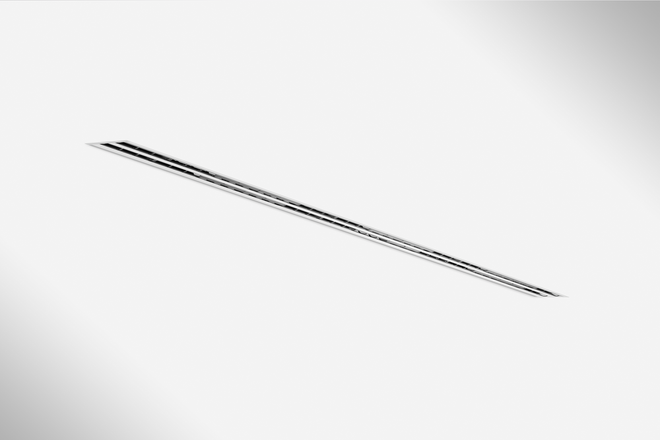

VSD50

With wide diffuser face for larger volume flow rates

Slot diffusers with 50 mm diffuser face (nominal width) and adjustable air control elements

Nominal length from 600 to 1950 mm, 1 or 2 slots
Volume flow rate range 20 – 120 (l/s)/m or 72 – 432 (m³/h)/m

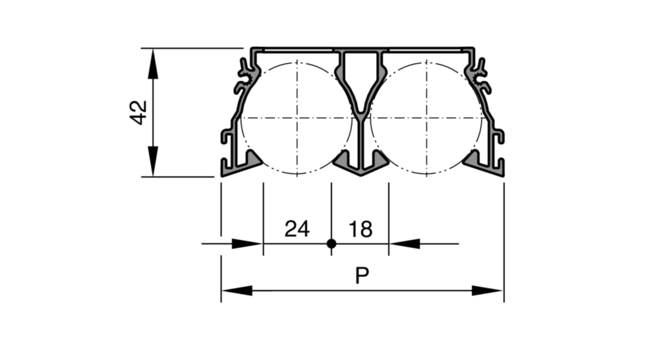

Diffuser face made of extruded aluminium sections
For variable and constant volume flows
Suitable for continuous linear arrangement
High induction results in a rapid reduction of the temperature difference and airflow velocity
Individually adjustable air control elements to meet individual local requirements

Optional equipment and accessories

Exposed diffuser face available in RAL CLASSIC colours
Diffuser face with extended border
Damper blade for volume flow rate balancing, can be adjusted through the diffuser face
Concealed screw fixing that simplifies installation of the diffuser after the ceiling has been completed
Symmetric and asymmetric plenum boxes, with or without lining

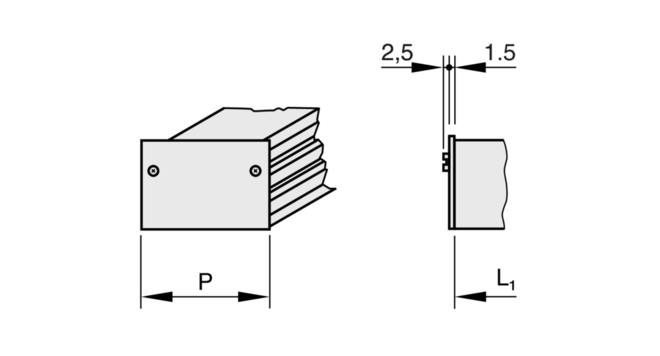

End plates, end angles, corner sections

v2.7.1.4

Updating order code

Save configuration

Calculate price

Configure your product – step by step

Specification text: VSD50-1-AK-M-L/1050x123x25/C2/B00/1050x1050x0x0/0

Updating specification text

Slot diffusers with individually manually adjustable air control elements and an aesthetically shaped face section with one or two slots, for horizontal one-way, horizontal alternating or angled alternating air discharge. For supply air or extract air. For installation into suspended ceilings. Ready-to-install component which consists of the diffuser face with individually adjustable black or white air control elements, and of a plenum box with side entry spigot and suspension lugs. Clamp fixing or concealed screw fixing Spigot suitable for circular ducts to EN1506 or EN 13180. Sound power level of the air-regenerated noise measured according to EN ISO 5135.

SPECIAL CHARACTERISTICS
- Individually adjustable air control elements to meet individual local requirements
- High induction results in a rapid reduction of the temperature difference and airflow velocity
- Diffuser face has been optimised for maximum volume flow rate at low sound power levels
- Suitable for continuous linear arrangement

MATERIALS AND SURFACES
- Diffuser face made from extruded aluminium sections
- Air control elements made of plastic, UL94, V0, flame retardant
- Plenum box made of galvanised sheet steel
- End plates and end angles made of aluminium
- Lip seal made of rubber
- Lining is mineral wool
- Diffuser face with anodised finish, E6-C-0, natural colour
- P1: Powdercoated, RAL CLASSIC colour
- Air control elements similar to RAL 9005, black
- WW: Air control elements similar to RAL9010, white

MINERAL WOOL
- To EN 13501, fire rating class A1, noncombustible
- RAL quality mark RALGZ 388
- Biosoluble and hence hygienically safe according to the German TRGS 905(Technical Rules for Hazardous Substances) and EU directive 97/69/EG
- Faced with glass fibre fabric as a protection against erosion through airflow velocities of up to 20m/s
- Inert to fungal and bacterial growth

VARIANT
No. of slots: 1
Connection: With clamp fixing
Damper blade for volume flow rate balancing With
Accessories With lip seal
Diffuser face length 1050
Spigot diameter 123
Neck extension 25
End pieces End angles both sides
Neck extension 25
Extended border With extended border
Exposed surface anodised, E6C0, natural colour
Select state colour
Air pattern Alternating horizontal

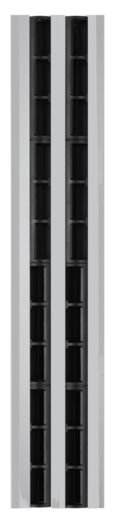

Colour of air control elements black

PRODUCT DATA
Strategy: Supply air
Volume flow qv 176 m³/h
Distance a 2,0 m
Distance x 1,0 m
Distance h1 1,2 m
Supply air to room air temperature difference ΔtSUP,c -6 K
Volumeflow per meter qv,m 168 m³/h
Distance (h 1 + x) l 2,2 m
Effective air velocity veff 5,1 m/s
Throw distance ls 5,0 m
Velocity at h 1 vh1 0,23 m/s
Temperature difference at h1 Δth1 -0,47 K
Velocity at l vl 0,63 m/s
Temperature difference at l Δtl -0,47 K
Thermal output – cooling Φc -353 W

Acoustic results
damper blade position open damper blade position 45° damper blade position closed
Δpt [Pa] 32 55 95
LWA [dB(A)] 41 42 43
63Hz [dB] 40 41 41
125Hz [dB] 47 48 48
250Hz [dB] 46 46 47
500Hz [dB] 39 40 41
1kHz [dB] 32 33 34
2kHz [dB] 27 30 32
4kHz [dB] 15 19 23
8kHz [dB] < 15 < 15 15
LWNC [dB] 35 35 36
LWNR [dB] 36 37 37

Manufacture of the planning: TROX
Type: VSD50-1-AK-M-L/1050x123x25/C2/B00/1050x1050x0x0/0

Show complete text

Technical information

Function, Technical data, Quick sizing, Specification text, Order code

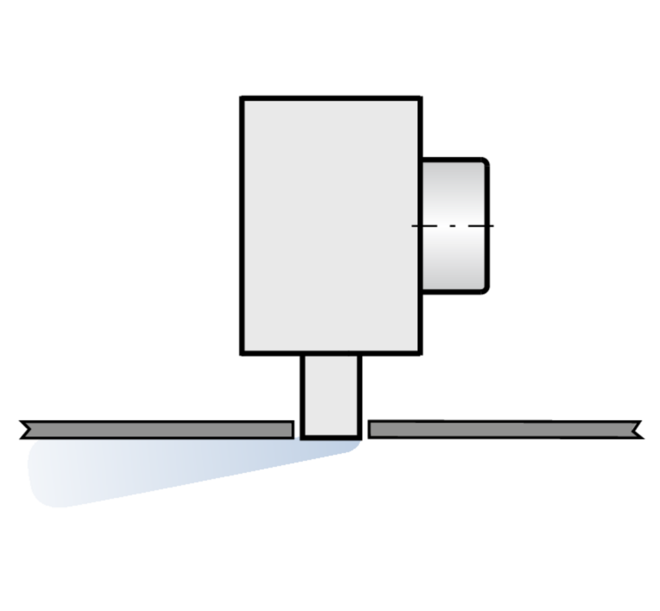

Schematic illustration of the VSD50 with clamp fixing

① Diffuser face
② Adjustable air control element
③ Neck
④ Plenum box
⑤ Suspension lug

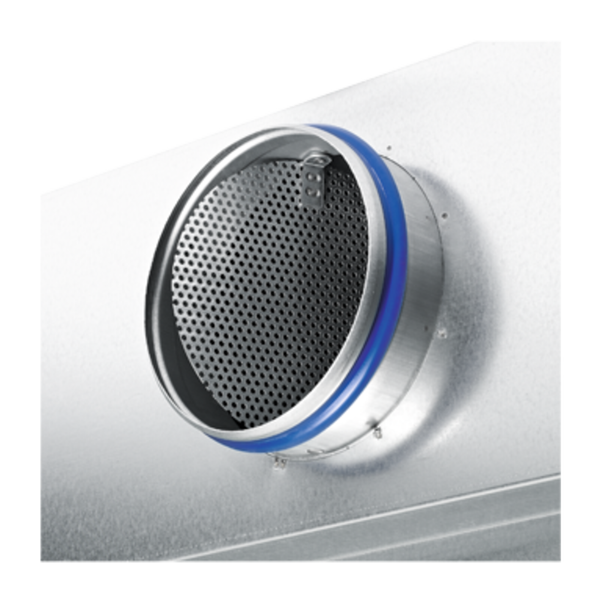

⑥ Spigot
Optional
⑦ Lip seal
⑧ Damper blade for volume flow rate balancing
⑨ Clamp fixing

Functional description

Slot diffusers direct the air from air conditioning systems into the room, either horizontally or at an angle. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone.

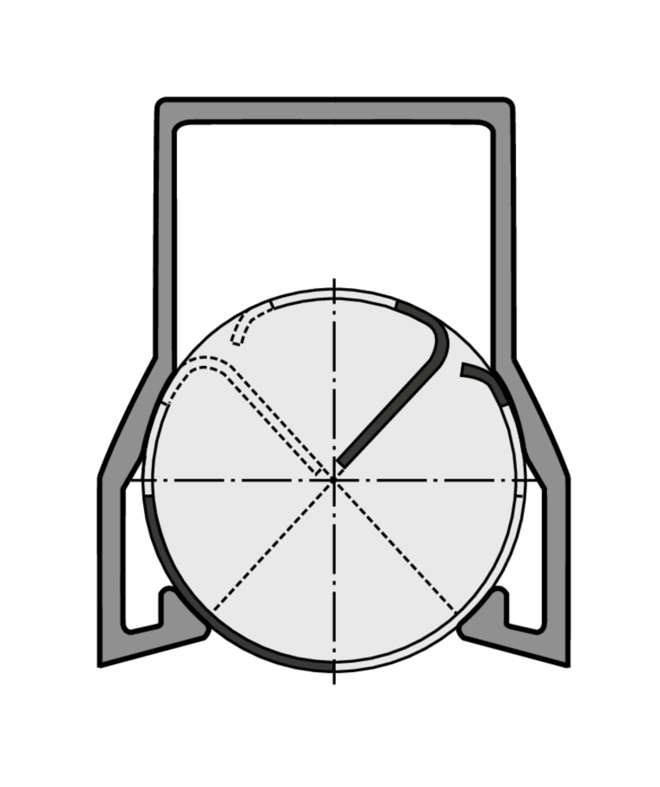

Type VSD50 slot diffusers have adjustable air control elements. The air pattern can be adjusted to meet different local requirements. Air discharge is one-way or alternating horizontal. Heating mode with angled air discharge is also possible. The supply air to room air temperature difference may range from –10 to +10 K.

A damper blade (optional) simplifies volume flow rate balancing for commissioning.

To give rooms an aesthetic, uniform look, Type VSD50 diffusers may also be used for extract air.

Nominal length	600, 750, 900, 1050, 1200, 1350, 1500, 1650, 1800, 1950 mm
Number of slots	1, 2
Neck extension	0, 25, 50, 75, 100, 125 mm
Minimum volume flow rate	20 – 40 (l/s)/m or 72 – 144 (m³/h)/m
Maximum volume flow rate, with L_WA ≅ 50 dB(A)	70 – 120 (l/s)/m or 252 – 432 (m³/h)/m
Supply air to room air temperature difference	–10 to +10 K

Quick sizing tables provide a good overview of the volume flow rates and corresponding sound power levels and differential pressures.

The maximum volume flow rates apply to a sound power level of approx. 50 dB (A) with damper blade position 0°.

Exact values for all parameters can be determined with our Easy Product Finder design programme.

VSD50-1, supply air, alternating horizontal air discharge, sound power level and total differential pressure

Nominal length	V		Damper blade position
Nominal length	V		0°				45°				90°
Nominal length	V		D = 123		D = 158		D = 123		D = 158		D = 123		D = 158
Nominal length	V		Δp_t	L_WA	Δp_t	L_WA	Δp_t	L_WA	Δp_t	L_WA	Δp_t	L_WA	Δp_t	L_WA
Nominal length	l/s	m³/h	Pa	dB(A)	Pa	dB(A)	Pa	dB(A)	Pa	dB(A)	Pa	dB(A)	Pa	dB(A)
600	11	38	4	<15	3	<15	5	<15	4	<15	7	<15	4	<15
600	25	90	19	31	17	28	25	32	20	28	36	32	24	28
600	40	144	49	45	44	42	65	46	50	42	91	46	60	42
600	50	180	77	52	69	49	101	53	78	49	143	54	93	50
750	15	54	5	<15	4	<15	7	15	5	<15	11	15	7	12
750	30	108	20	33	17	29	28	33	20	29	43	34	25	29
750	40	144	35	41	30	37	50	42	35	37	77	42	45	38
750	55	198	65	51	56	47	94	52	66	48	145	53	85	48
900	15	54	4	<15	3	<15	6	<15	4	<15	10	<15	5	<15
900	35	126	20	34	17	30	32	34	21	30	53	35	28	31
900	50	180	41	44	33	41	65	45	42	41	107	46	58	41
900	65	234	70	53	56	49	110	54	71	49	181	55	97	50
1050	20	72	6	17	4	<15	9	17	6	<15	16	18	8	<15
1050	40	144	22	35	17	31	37	36	22	32	64	37	32	32
1050	55	198	41	45	31	41	70	45	42	41	120	46	60	42
1050	70	252	66	52	50	48	113	53	68	49	195	55	98	50
1200	25	90	7	20	5	17	13	21	8	17	24	21	11	17
1200	40	144	19	33	13	29	34	34	19	29	61	34	29	30
1200	55	198	35	42	25	38	64	43	36	39	114	44	54	39
1200	75	270	64	52	47	48	118	53	67	48	212	54	101	49
1350	25	90	7	19	5	15	13	19	7	15	23	20	11	15
1350	45	162	21	34	14	30	40	35	21	31	74	36	34	31
1350	65	234	43	45	29	41	83	46	44	42	154	47	70	42
1350	80	288	65	52	44	48	126	53	67	48	233	54	106	49
1500	30	108	8	22	6	18	17	22	9	18	32	23	14	19
1500	50	180	23	36	15	31	47	37	24	32	89	37	39	33
1500	70	252	45	46	29	41	92	47	47	42	174	48	77	43
1500	85	306	66	52	43	47	135	53	69	48	256	55	113	49
1650	30	108	5	18	4	<15	7	18	5	<15	11	19	6	<15
1650	50	180	13	31	11	28	20	32	13	28	31	33	18	28
1650	75	270	29	43	24	40	44	44	30	40	70	45	39	40
1650	100	360	51	52	43	49	78	53	52	49	124	54	69	50
1800	35	126	6	20	5	17	9	21	6	17	15	21	8	17
1800	58	210	16	34	13	30	25	35	16	31	40	36	22	31
1800	82	294	30	44	25	40	48	45	31	41	79	46	42	41
1800	105	378	50	52	41	48	79	53	51	49	130	54	70	50
1950	35	126	5	19	4	16	8	20	5	16	14	20	7	16
1950	60	216	15	34	12	30	24	34	15	30	41	35	21	31
1950	85	306	30	44	23	40	49	45	30	41	82	46	42	41
1950	110	396	49	52	39	48	81	53	51	49	137	55	71	50

VSD50-2, supply air, alternating horizontal air discharge, sound power level and total differential pressure

Nominal length	V		Damper blade position
Nominal length	V		0°				45°				90°
Nominal length	V		D = 158		D = 198		D = 158		D = 198		D = 158		D = 198
Nominal length	V		Δp_t	L_WA	Δp_t	L_WA	Δp_t	L_WA	Δp_t	L_WA	Δp_t	L_WA	Δp_t	L_WA
Nominal length	l/s	m³/h	Pa	dB(A)	Pa	dB(A)	Pa	dB(A)	Pa	dB(A)	Pa	dB(A)	Pa	dB(A)
600	25	90	5	17	5	<15	8	17	6	<15	11	17	7	<15
600	45	162	17	32	15	29	24	33	18	29	37	33	23	29
600	65	234	35	43	31	40	50	44	37	40	76	45	47	41
600	85	306	60	52	52	49	85	53	62	49	130	54	80	50
750	30	108	6	18	5	<15	9	18	6	<15	14	19	8	15
750	50	180	15	31	12	28	24	32	16	28	39	33	22	29
750	80	288	38	45	31	42	61	46	41	42	100	47	56	43
750	100	360	60	53	49	49	95	54	63	50	156	55	88	51
900	35	126	6	19	5	16	10	19	6	16	18	20	9	16
900	60	216	17	34	13	30	30	34	18	30	52	35	27	31
900	85	306	34	44	26	40	60	45	37	41	104	46	55	42
900	110	396	57	52	44	49	100	53	61	49	174	55	91	50
1050	40	144	7	20	5	17	12	21	7	17	22	21	11	17
1050	65	234	17	33	12	30	32	34	18	30	58	35	29	31
1050	90	324	32	43	23	39	61	44	35	40	110	45	55	41
1050	120	432	57	52	41	48	108	53	62	49	196	55	98	50
1200	45	162	7	21	5	18	14	22	8	18	27	23	13	18
1200	70	252	17	33	12	30	34	34	19	30	64	35	31	31
1200	100	360	35	44	24	40	70	45	38	41	131	46	63	42
1200	130	468	58	52	40	48	118	54	64	49	222	55	106	50
1350	50	180	8	22	5	19	17	23	9	19	32	24	15	19
1350	80	288	20	35	13	31	43	36	22	32	82	37	38	33
1350	110	396	38	45	25	41	80	46	42	42	155	47	72	43
1350	140	504	61	52	40	48	130	54	68	50	250	56	116	51
1500	55	198	9	23	6	19	20	24	10	20	38	25	17	20
1500	90	324	23	37	15	33	52	38	26	34	102	39	46	35
1500	125	450	45	47	28	43	100	48	50	44	196	50	89	45
1500	150	540	65	53	40	49	144	54	72	50	282	56	128	51
1650	60	216	5	21	4	18	9	22	6	18	15	22	8	18
1650	95	342	13	34	11	31	22	35	14	31	37	36	20	31
1650	135	486	26	45	21	41	44	46	28	42	75	47	41	42
1650	175	630	44	53	35	49	74	54	47	50	126	56	68	51
1800	65	234	6	22	4	19	10	23	6	19	17	23	9	19
1800	105	378	14	36	11	32	25	36	16	32	44	37	23	33
1800	145	522	27	45	21	42	48	46	29	42	83	47	44	43
1800	185	666	44	53	34	50	78	54	48	50	135	56	71	51
1950	70	252	6	23	5	19	11	24	6	20	19	24	10	20
1950	110	396	14	36	11	32	26	36	16	32	47	37	24	33
1950	150	540	27	45	20	41	48	46	29	42	86	47	44	43
1950	190	684	43	52	32	49	78	54	46	50	138	55	71	51

Ready-to-install component which consists of the diffuser face with individually adjustable black or white air control elements, and of a plenum box with side entry spigot and suspension lugs.

Clamp fixing or concealed screw fixing

Spigot suitable for circular ducts to EN 1506 or EN 13180.

Sound power level of the air-regenerated noise measured according to EN ISO 5135.

Special characteristics

Individually adjustable air control elements to meet individual local requirements
High induction results in a rapid reduction of the temperature difference and airflow velocity
Diffuser face has been optimised for maximum volume flow rate at low sound power levels
Suitable for continuous linear arrangement

Materials and surfaces

Diffuser face made from extruded aluminium sections
Air control elements made of plastic, UL 94, V-0, flame retardant
Plenum box made of galvanised sheet steel
End plate and end angle made of aluminium
Lip seal made of rubber
Lining is mineral wool
Diffuser face with anodised finish, E6-C-0, natural colour
P1: Powder-coated, RAL CLASSIC colour
Air control elements similar to RAL 9005, black
WW: Air control elements similar to RAL 9010, white

Mineral wool

To EN 13501, fire rating class A1, non-combustible
RAL quality mark RAL-GZ 388
Biosoluble and hence hygienically safe according to the German TRGS 905 (Technical Rules for Hazardous Substances) and EU directive 97/69/EC
Faced with glass fibre fabric as a protection against abrasion through airflow velocities of up to 20 m/s
Inert to fungal and bacterial growth

Technical data

Nominal length: 600 – 1950 mm
Number of slots: 1, 2
Neck extension: 0, 25, 50, 75, 100, 125 mm
Minimum volume flow rate: 20 – 40 (l/s)/m or 72 – 144 (m³/h)/m
Maximum volume flow rate with L_WA ≅ 50 dB(A): 70 – 120 (l/s)/m or 252 – 432 (m³/h)/m
Supply air to room air temperature difference: –10 to +10 K

Sizing data

V _______________________ [m³/h]
Δp_t _______________________ [Pa]

Air-regenerated noise

L_WA _______________________ [dB(A)]

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product Finder design programme.

Type
VSD50 Slot diffuser

Number of slots
1
2

Connection
F       Diffuser face only
E       90° corner section only
       Plenum box
AK       With clamp fixing
DK       With lining and clamp fixing
AS       With concealed screw fixing
DS       With lining and concealed screw fixing
AA       Asymmetric and with clamp fixing
       Diffusers with a shorter plenum box as well as non-active diffusers require a rear blanking plate
       Length of blanking plate = L₁ – L₃

Damper blade for volume flow rate balancing
No entry: none
M With

Accessories
No entry: none
L With lip seal

Nominal size [mm]
Nominal length L_N
600
750
900
1050
1200
1350
1500
1650
1800
1950

       Specify ØD and Y only for AK, DK, AS, DS and AA
       Up to L_N 1500 with one spigot, from L_N 1650 with two spigots
       spigot diameter ØD
123       1 slot
158       1 or 2 slots
198       2 slots

Neck extension Y
No entry: 0
25
50
75
100
125
(125 only AK, DK and AA)

End pieces
       No entry: without
       Both ends with end angles factory fitted
C1       to profile 000
C2       to profile B00
       Both ends with end plates factory fitted
C5       to profile 000
C6       to profile B00
       To be ordered separately for slot diffusers for linear arrangement

Extended border
No entry: without (only AK, DK, AA)
B00 With extended border

Exposed surface
No entry: anodised, E6-C-0, natural colour
P1 Powder-coated, specify RAL CLASSIC colour

       Gloss level
       RAL 9010 50 %
       RAL 9006 30 %
       All other RAL colours 70 %

Air pattern
       No entry: alternating horizontal (WH)
WS       Alternating angled
HL       Horizontal left (opposite direction from spigot)
HR       Horizontal right (same direction as spigot)

Colour of air control elements
No entry: similar to RAL 9005, black
WW Similar to RAL 9010, white

Order example: VSD50-1-AK-M-L/900×123/C1/B00/P1-RAL 9010/WS/WW

Number of slots	1
Connection	Plenum box with clamp fixing
Damper blade for volume flow rate balancing	With
Accessories	Lip seal
Nominal size / spigot diameter	900 × 123 mm
Neck extension	Without
End pieces	End angle
Extended border	With
Exposed surface	RAL 9010, pure white, gloss level 50 %
Air pattern	Alternating angled
Colour of air control elements	White

Variants, Attachments, Dimensions and weight, Product details

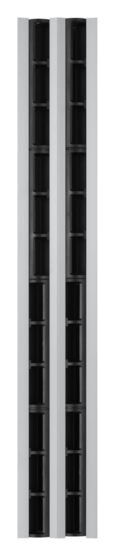

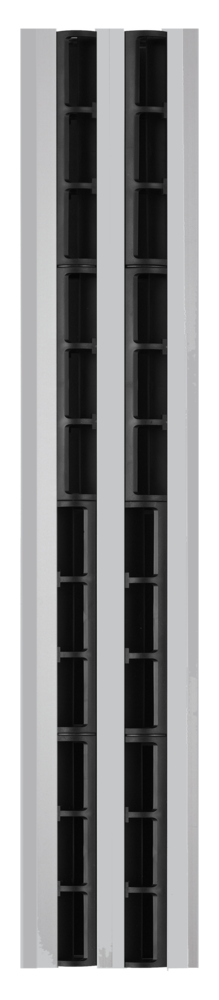

VSD50-2

Diffuser face without extended border, black air control elements

VSD50-*-AS

Variant

Slot diffuser with plenum box for concealed screw fixing
Concealed screw fixing only with profile B00 (with extended border)

Parts and characteristics

Plenum box for horizontal duct connection
Concealed screw fixing
Damper blade (optional)
Lip seal (optional)

VSD50-*-DS

Variant

Slot diffuser with plenum box for concealed screw fixing
Plenum box with lining
Concealed screw fixing only with profile B00 (with extended border)

Parts and characteristics

Plenum box for horizontal duct connection
Concealed screw fixing
Thermal and acoustic insulation (lining)
Damper blade (optional)
Lip seal (optional)

VSD50-*-AK

Variant

Slot diffuser with plenum box for clamp fixing

Parts and characteristics

Plenum box for horizontal duct connection
Damper blade (optional)
Lip seal (optional)

VSD50-*-DK

Variant

Slot diffuser with plenum box for clamp fixing
Plenum box with lining

Parts and characteristics

Plenum box for horizontal duct connection
Concealed screw fixing
Thermal and acoustic insulation (lining)
Damper blade (optional)
Lip seal (optional)

VSD50-*-AA

Variant

Slot diffuser with plenum box for clamp fixing
Asymmetric plenum box

Parts and characteristics

Plenum box for horizontal duct connection
Asymmetric plenum box
Damper blade (optional)
Lip seal (optional)

End angles on both ends

VSD50VSD50

Nominal length mm L_N	L₁ mm
600	600
750	750
900	900
1050	1050
1200	1200
1350	1350
1500	1500
1650	1650
1800	1800
1950	1950

Variant	000 P mm	B00 P mm
VSD50-1	50	70
VSD50-2	92	112

VSD50, L<sub>N</sub>: 600 – 1500

VSD50VSD50-*-ASVSD50-*-DSVSD50-*-AK, VSD50-*-AAVSD50-*-DKVSD50-*-ASVSD50-*-DSVSD50-*-AK, VSD50-*-AAVSD50-*-DKVSD50-*/.../000

Y: Neck extension, resulting neck lengths 80, 105, 130, 155, 180 mm

Y: Neck extension, resulting neck lengths 55, 80, 105, 130, 155, 180 mm

Nominal length mm L_N	L₁ mm	L₃ mm
600	600	595
750	750	745
900	900	895
1050	1050	1045
1200	1200	1195
1350	1350	1345
1500	1500	1495
1650	1650	1645
1800	1800	1795
1950	1950	1945

Variant	y = 0 H₃ mm	y = 0 A mm	y = 25 H₃ mm	y = 25 A mm	y = 50 H₃ mm	y = 50 A mm	y = 75 H₃ mm	y = 75 A mm	y = 100 H₃ mm	y = 100 A mm	B₃ mm	H₄ mm	ØD mm	C mm
VSD50-1/... × 123	267	174	292	199	317	224	342	249	367	274	100	187	123	46
VSD50-1/... × 158	267	174	292	199	317	224	342	249	367	274	100	187	158	48
VSD50-2/... × 158	307	194	332	219	357	244	382	269	407	294	138	227	158	48
VSD50-2/... × 198	307	194	332	219	357	244	382	269	407	294	138	227	198	48

Variant	y = 0 H₃ mm	y = 0 A mm	y = 25 H₃ mm	y = 25 A mm	y = 50 H₃ mm	y = 50 A mm	y = 75 H₃ mm	y = 75 A mm	y = 100 H₃ mm	y = 100 A mm	B₃ mm	H₄ mm	ØD mm	C mm
VSD50-1/... × 123	287	174	312	199	337	224	362	249	387	274	138	207	123	46
VSD50-1/... × 158	287	174	312	199	337	224	362	249	387	274	138	207	158	48
VSD50-2/... × 158	327	194	352	219	377	244	402	269	427	294	176	247	158	48
VSD50-2/... × 198	327	194	352	219	377	244	402	269	427	294	176	247	198	48

Variant	y = 0 H₃ mm	y = 0 A mm	y = 25 H₃ mm	y = 25 A mm	y = 50 H₃ mm	y = 50 A mm	y = 75 H₃ mm	y = 75 A mm	y = 100 H₃ mm	y = 100 A mm	y = 125 H₃ mm	y = 125 A mm	B₃ mm	H₄ mm	ØD mm	C mm
VSD50-1/... × 123	242	149	267	174	292	199	317	224	342	249	367	274	100	187	123	46
VSD50-1/... × 158	242	149	267	174	292	199	317	224	342	249	367	274	100	187	158	48
VSD50-2/... × 158	282	169	307	194	332	219	357	244	382	269	407	294	138	227	158	48
VSD50-2/... × 198	282	169	307	194	332	219	357	244	382	269	407	294	138	227	198	48

Variant	y = 0 H₃ mm	y = 0 A mm	y = 25 H₃ mm	y = 25 A mm	y = 50 H₃ mm	y = 50 A mm	y = 75 H₃ mm	y = 75 A mm	y = 100 H₃ mm	y = 100 A mm	y = 125 H₃ mm	y = 125 A mm	B₃ mm	H₄ mm	ØD mm	C mm
VSD50-1/... × 123	262	149	287	174	312	199	337	224	362	249	387	274	138	207	123	46
VSD50-1/... × 158	262	149	287	174	312	199	337	224	362	249	387	274	138	207	158	48
VSD50-2/... × 158	302	169	327	194	352	219	377	244	402	269	427	294	176	247	158	48
VSD50-2/... × 198	302	169	327	194	352	219	377	244	402	269	427	294	176	247	198	48

Nominal length mm L_N	VSD50-1 m kg	VSD50-2 m kg
600	4.0	5.0
750	5.0	6.1
900	5.9	7.2
1050	6.9	8.3
1200	7.8	9.4
1350	8.7	10.5
1500	9.7	11.6
1650	10.6	12.7
1800	11.5	13.8
1950	12.5	14.9

Nominal length mm L_N	VSD50-1 m kg	VSD50-2 m kg
600	4.9	6.0
750	6.1	7.3
900	7.2	8.6
1050	8.3	10.0
1200	9.5	11.3
1350	10.6	12.6
1500	11.7	13.9
1650	12.9	15.3
1800	14.0	16.6
1950	15.1	17.9

Nominal length mm L_N	VSD50-1 m kg	VSD50-2 m kg
600	3.4	4.3
750	4.2	5.3
900	5.0	6.3
1050	5.8	7.2
1200	6.6	8.2
1350	7.4	9.2
1500	8.2	10.1
1650	9.0	11.1
1800	9.8	12.1
1950	10.6	13.0

Nominal length mm L_N	VSD50-1 m kg	VSD50-2 m kg
600	4.4	5.4
750	5.4	6.6
900	6.4	7.8
1050	7.4	9.0
1200	8.4	10.2
1350	9.4	11.4
1500	10.4	12.6
1650	11.4	13.8
1800	12.4	15.0
1950	13.4	16.2

Variant	000 P mm	000 E mm	B00 P mm	B00 E mm
VSD50-1	50	120	70	110
VSD50-2	92	120	112	110

Number of spigots and spigot diameter

Nominal length	VSD50-1		VSD50-2
Nominal length	ØD
Nominal length	mm
600 – 1500	1 × 123	1 × 158	1 × 158	1 × 198
1650 – 1950	2 × 123	2 × 158	2 × 158	2 × 198

VSD50-1/.../000

VSD50VSD50

Profiles

A_eff: One-way horizontal and alternating horizontal air discharge

A_eff WS: Alternating angled air discharge

Variant	000 P mm	B00 P mm
VSD50-1	50	70
VSD50-2	92	112

Nominal length mm L_N	VSD50-1 A_eff m²	VSD50-1 A_eff WS m²	VSD50-2 A_eff m²	VSD50-2 A_eff WS m²
600	0.0053	0.0060	0.0106	0.0121
750	0.0066	0.0076	0.0133	0.0151
900	0.0080	0.0091	0.0159	0.0181
1050	0.0093	0.0106	0.0185	0.0211
1200	0.0106	0.0121	0.0212	0.0241
1350	0.0119	0.0136	0.0238	0.0272
1500	0.0133	0.0151	0.0265	0.0302
1650	0.0146	0.0166	0.0291	0.0332
1800	0.0159	0.0181	0.0318	0.0362
1950	0.0172	0.0196	0.0344	0.0392

Installation examples, Installation details, Commissioning, Basic information and nomenclature

VSD50-1/.../B00, installation in continuous ceilings

Anodised, E6-C-0, natural colour

Installation with plenum box

① Duct
② Suspension lug
③ Diffuser face

Horizontal duct connection
Four suspension lugs
Suspension with cords, wires or hangers, to be provided by others

Installation and commissioning

Preferably for rooms with a clear height up to 4.0 m
Flush ceiling installation
Horizontal duct connection
Diffusers with a shorter plenum box as well as non-active diffusers require a rear blanking plate; length of blanking plate = L₁ – L₃
For a continuous linear arrangement connect the diffusers with connecting pins and alignment plates
If necessary, carry out volume flow rate balancing with the damper blade

These are only schematic diagrams to illustrate installation details.

Volume flow rate balancing 00134438_0

Move the air control element near the spigot in such a way that it is possible to insert a screw driver

Volume flow rate balancing

When several diffusers are connected to just one volume flow controller, it may be necessary to balance the volume flow rates.

Slot diffusers with plenum box and damper blade (variant -M): The damper blade can be adjusted even after the diffuser face has been installed.

Principal dimensions

ØD [mm]

Outer diameter of the spigot

L₁ [mm]

Length of diffuser without end pieces

L₃ [mm]

Length of plenum box

P [mm]

Width of diffuser face – with extended border, if any

B₃ [mm]

Width of plenum box

H₃ [mm]

Height of slot diffuser with plenum box, from the lower edge of the suspended ceiling to the upper edge of the plenum box

Y [mm]

Neck extension – The neck length results from a fixed length plus the neck extension

A [mm]

Position of the spigot, defined by the distance of the spigot centre line to the lower edge of the suspended ceiling

C [mm]

Length of the spigot

m [kg]

Weight

Nomenclature

f_m [Hz]

Octave band centre frequency

L_WA [dB(A)]

Sound power level of the air-regenerated noise

V [m³/h] and [l/s]

Volume flow rate

Δp_t [Pa]

Total differential pressure

All sound power levels are based on 1 pW.

VSD50-1-AK

Installation in continuous ceilings

Concealed screw fixing

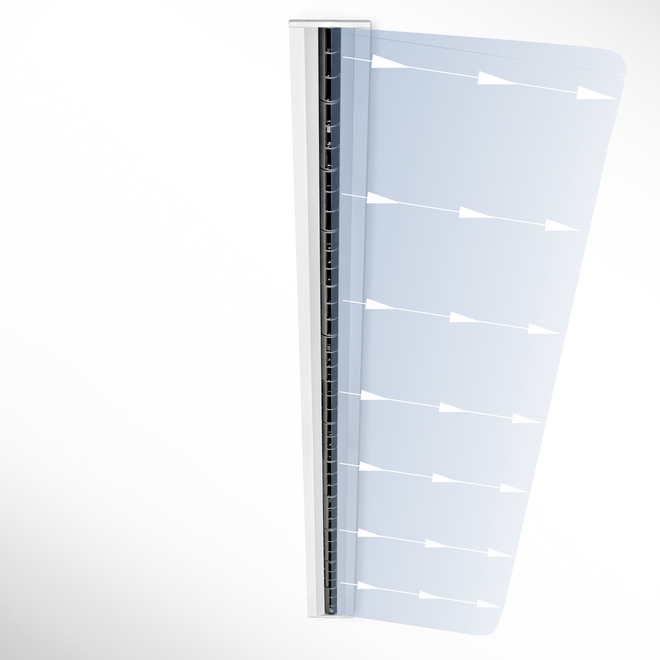

Alternating horizontal air discharge

Plenum box with damper blade (optional)

VSD50

With wide diffuser face for larger volume flow rates

Configure your product – step by step

No. of slots

Connection

Damper blade for volume flow rate balancing

Accessories

Diffuser face length

Spigot diameter

Neck extension

End pieces

Extended border

Exposed surface

Select state colour

Air pattern

Colour of air control elements

Plenum box length (active length)

Length X (left side)

Rear blanking plate

Order code: VSD50-1-AK-M-L/1050x123x25/C2/B00/1050x1050x0x0/0

Specification text: VSD50-1-AK-M-L/1050x123x25/C2/B00/1050x1050x0x0/0

Application

Description

Technical information

Function, Technical data, Quick sizing, Specification text, Order code

Variants, Attachments, Dimensions and weight, Product details

Installation examples, Installation details, Commissioning, Basic information and nomenclature

Downloads

product information

Product data sheet Type VSD50

certificates

Declaration of hygiene conformity Type VSD50

operation manuals

Installation manual Slot diffusers

Attachment (max. 10MB)

Your message

Your message to

Attachment (max. 10MB)

Your message

Your message to
