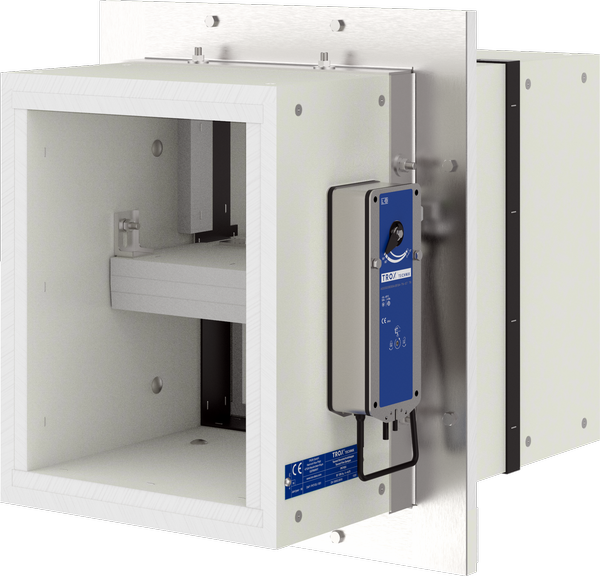

Tunnel fire dampers Type FKT-EU
Tested to VDI 6022
With TROXNETCOM as an option
CE compliant according to European regulations
60 mm damper blade
Electric actuator, 24/ 230 V, with thermoelectric release mechanism (72 °C)

FKT-EU

FIRE AND SMOKE PROTECTION FOR THE MOST CRITICAL REQUIREMENTS

Rectangular fire dampers with excellent temperature resistance, for the isolation of duct penetrations between fire compartments

  • Nominal sizes 300 × 400 – 600 × 600 mm, in increments of 50 mm
  • Casing and damper blade made of temperature-resistant calcium silicate
  • Remote control with electric 24 V or 230 V actuator, thermal release at 72 °C
  • Low differential pressure and sound power level
  • Resists temperatures up to 1300 °C (according to HCM curve)
  • Installation with horizontal damper blade shaft
  • Casing air leakage to EN 1751, class C



Optional equipment and accessories

  • Duct smoke detector RM-O-VS-D or RM-O-3-D
  • Integration into the central BMS with TROXNETCOM

APPLICATION

Application

  • Fire dampers of Type FKT-EU, with CE marking and declaration of performance, for the isolation of duct penetrations between fire compartments in the event of a fire

  • To prevent the propagation of fire and smoke through ductwork to adjacent designated fire compartments


Special characteristics

  • Declaration of performance according to Construction Products Regulation

  • Classification to EN 13501-3, EI 120 (ve, i → o) S

  • Building inspectorate licence Z-56.4212-990, non-hazardous to health

  • Complies with the requirements of EN 15650

  • Tested to EN 1366-2 for fire resistance properties

  • Casing air leakage to EN 1751, class C

  • Resists temperatures up to 1300 °C (according to HCM curve)

  • Installation with horizontal damper blade shaft

  • Low differential pressure and sound power level

  • Integration into the central BMS with TROXNETCOM


Classification

  • Class of performance to EN 13501-3, up to EI 120 (ve, i → o) S


Nominal sizes

  • B × H: 300 × 400 – 600 × 600 mm (in increments of 50 mm)

  • Casing length L = 690 mm

DESCRIPTION

Attachments

  • Spring return actuator for 24/230 V AC/DC supply voltage

  • Network module for the integration with AS-i or LON networks


Useful additions

  • Duct smoke detector RM-O-3-D

  • Duct smoke detector with airflow monitor RM- O-VS-D

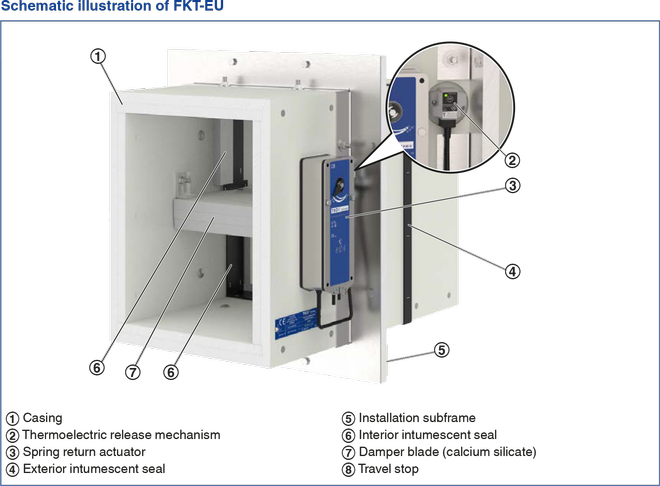

Parts and characteristics

  • Installation only with horizontal damper blade shaft


Construction features

  • Square or rectangular construction
  • Actuated by a spring return actuator
  • Remote control with actuator


Materials and surfaces

  • Casing and damper blade made of calcium silicate

  • Brass bearings
  • Shafts made of stainless steel

Standards and guidelines

  • Construction Products Regulation

  • EN 15650:2010 Ventilation for buildings – Fire dampers

  • EN 1366-2:1999 Fire resistance tests for service installations – Fire dampers

  • EN 13501-3:2010 Fire classification of construction products and building elements

  • EN 1751:1999 Ventilation for buildings – Air terminal devices


Maintenance

  • The functional reliability of the fire damper must be tested at least every six months; this has to be arranged by the owner of the ventilation system; functional tests must be carried out in compliance with the basic maintenance principles stated in EN 13306 and DIN 31051. If two consecutive tests, one 6 months after the other, are successful, the next test can be conducted one year later.

  • A functional test involves closing the damper blade and opening it again; with a spring return actuator this can be done via remote control

  • Fire dampers must be included in the regular cleaning schedule for the ventilation system

  • For details on maintenance and inspection refer to the installation and operating manual

TECHNICAL INFORMATION

FUNCTION, TECHNICAL DATA, QUICK SIZING, SPECIFICATION TEXT, ORDER CODE

  • FUNCTION
  • TECHNICAL DATA
  • QUICK SIZING
  • SPECIFICATION TEXT

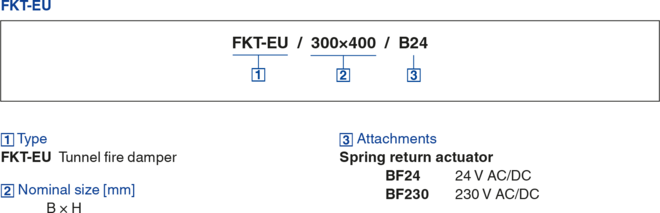

  • ORDER CODE

Functional description

In the event of a fire, tunnel fire dampers shut automatically to prevent the propagation of fire and smoke through ductwork to adjacent designated fire compartments. The spring return actuator enables the motorised opening and closing of the damper blade; it can be activated by the central BMS. In the event of a fire, the damper is triggered thermoelectrically at 72 °C. As long as power is supplied to the actuator, the damper blade remains open. If the supply voltage fails, the damper closes (power off to close). The spring return actuator is fitted with limit switches that can be used for capturing the damper blade position.

Quick sizing tables provide a good overview of the sound power levels and differential pressures that can be expected. Approximate intermediate values can be interpolated. Precise intermediate values and spectral data can be calculated with our Easy Product Finder design programme.

Square or rectangular tunnel fire damper to product standard EN 15650, tested to EN 1366-2, for the isolation of duct penetrations between fire compartments in the event of a fire. In the event of a fire, fire dampers shut automatically to prevent the propagation of fire and smoke through ductwork to adjacent designated fire compartments. The tunnel fire damper is suitable for installation in solid concrete or masonry walls. A 24 V/230 V spring return actuator closes the damper after it is triggered at 72 °C.

Special characteristics

  • Declaration of performance according to Construction Products Regulation

  • Classification to EN 13501-3, EI 120 (ve, i → o) S

  • Building inspectorate licence Z-56.4212-990, non-hazardous to health

  • Complies with the requirements of EN 15650

  • Tested to EN 1366-2 for fire resistance properties

  • Casing air leakage to EN 1751, class C

  • Resists temperatures up to 1300 °C (according to HCM curve)

  • Installation with horizontal damper blade shaft

  • Low differential pressure and sound power level

  • Integration into the central BMS with TROXNETCOM


Materials and surfaces

  • Casing and damper blade made of calcium silicate

  • Brass bearings
  • Shafts made of stainless steel

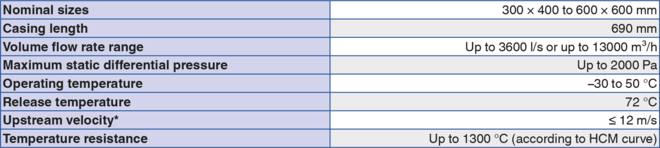

Technical data

  • Nominal sizes: 300 × 400 to 600 × 600 mm
  • Casing length: 690 mm

  • Volume flow rate range: up to 3600 l/s or 13000 m³/h

  • Acceptable static differential pressure: up to 2000 Pa

  • Operating temperature: –30 to 50 °C
  • Release temperature: 72 °C
  • Upstream velocity: ≤ 12 m/sec

  • Temperature resistance: up to 1300 °C (according to HCM curve)


Sizing data

  • V _______________________ [m³/h]
  • Δpst _______________________ [Pa]

Air-regenerated noise

  • LwA _______________________ [dB(A)]

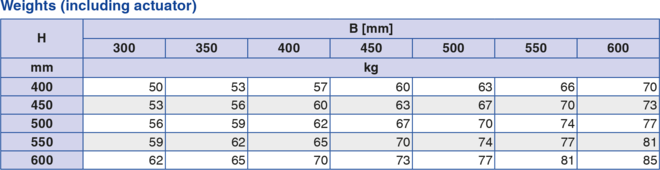

Attachments, Dimensions and weight

  • ATTACHMENTS
  • DIMENSIONS AND WEIGHT

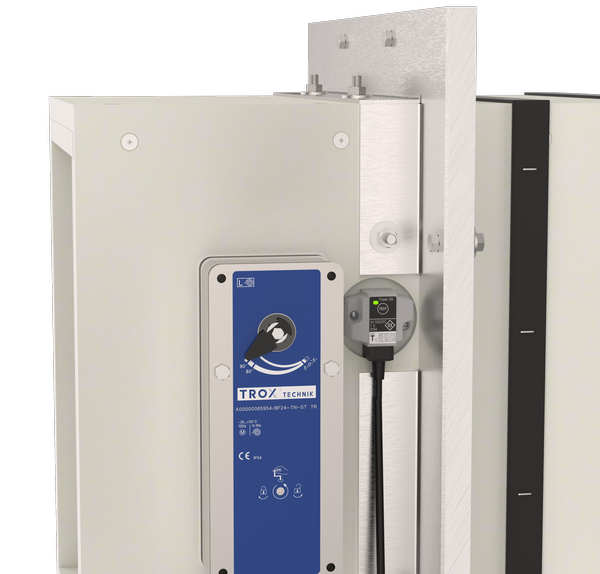

Spring return actuator BF24-TN-ST TR

Application

  • An open/close actuator allows for the remote control of the fire damper and/or release by a suitable duct smoke detector
  • If the supply voltage fails, or with thermoelectric release, the damper closes (power off to close)
  • Fire dampers with spring return actuators can be functionally checked OPEN/CLOSED/ OPEN
  • Ambient temperature, normal operation –30 to 50 °C
  • Two integral limit switches with volt-free contacts enable the damper blade position indication (OPEN and CLOSED)
  • BF24-TN-ST TR: The connecting cables of the spring return actuator are fitted with plugs, which ensure quick and easy connection to the TROX AS-i bus system; BF230-TN TR, which is not fitted with plugs, can also be used

Correct use, Installation details, Basic information and nomenclature

  • CORRECT USE
  • INSTALLATION DETAILS
  • BASIC INFORMATION AND NOMENCLATURE

Design information

  • The fire damper is used as an automatic shut- off device to prevent fire and smoke from spreading through ducting in tunnels

  • The fire damper is suitable for supply air and extract air systems

  • Operation of fire dampers is allowed only in compliance with installation regulations and the technical data in the installation and operating manual

  • Modifying the fire damper or using replacement parts that have not been approved by TROX are not permitted


If this fire damper is used in Germany

  • Do not use it as an air transfer damper

  • Do not use it in extract air systems in commercial kitchens

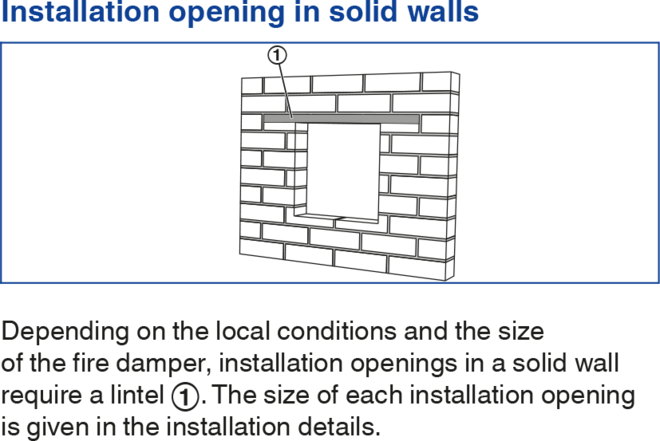

Installation types


Connection of the damper to the ductwork

  • The tunnel fire damper can be connected to one or two sheet steel ducts

  • Cover grilles can be connected to one side or both sides of the damper. These jobs have to be performed by others



Note

  • For further information relevant to design, in particular information on installation situations, please refer to the operating and installation manual.

Product selection

Downloads

product information

  • Product data sheet

    FKT-EU_PD_2019_11_DE_en Type FKT-EU 1,1 MB pdf

certificates

  • Declaration of performance

    DoP/FKT-EU/001 Type FKT-EU 160 KB pdf

operation manuals

  • Installation and operating manual Type FKT-EU

    FKT-EU_IOM_A00000062649_2021_03_V2_GB_en Installation and operating manual 1,4 MB pdf
