TNC-EC-Z00–Z03

System for controlling and monitoring motorised fire dampers

Stand-alone solution for controlling and monitoring up to 12 motorised fire dampers or up to 24 damper blade end positions

  • Easy electrical installation using coded plug connections
  • Pre-installed application software
  • No additional programming required
  • Improves the fire safety

Decentralised operating and monitoring system TNC-EASYCONTROL 00133750_0
  • Application
  • Description

Application

  • Control system encased in sheet steel casing with cutout window, including power supply unit and timer, completely wired and ready for plug-in
  • Stand-alone solution for controlling and monitoring of up to 6 motorised fire dampers with 24 V DC (up to 12 fire dampers with parallel operation); alternatively for capturing the end positions of up to 12 mechanical dampers with one limit switch (up to 24 limit switches with parallel operation)
  • With pre-installed user software, ready to use
  • Topology: star-shaped with 4-wire line
  • Manual control (OPEN/CLOSE) of individual fire dampers
  • Monitoring of the fire damper opening and closure times
  • Automated and time-controlled functional test using timer, or external control by central BMS and manual triggering
  • Output of alarm messages: fire, smoke, fire damper closed, fault during functional test, running/limit switch faults, smoke detector contamination
  • Menu-driven operation using integral LCD and softkeys on the main PCB, signalling with LEDs

Accessories

Z01

  • LED/buzzer combination for alarm signalling
  • Mounted into the cover plate and completely wired (ready to use)

Z02

  • 2.8 inch colour LCD, mounted into the cover plate and completely wired (ready to use)
  • For displaying damper blade positions
  • For controlling individual fire dampers
  • For starting a functional test

Z03

  • 2.8 inch colour LCD and LED/buzzer combination

Technical information

  • Function
  • Specification text
  • Order code

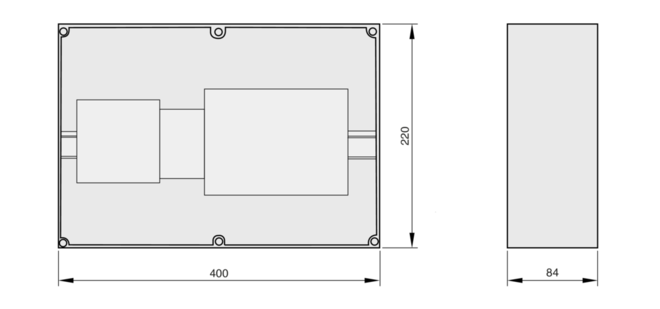

TNC-EC-Z00–Z03 00106545_0.

Standard description (characteristics)

For controlling and monitoring up to 6 motorised fire dampers (24 V DC) - or up to 12 fire dampers with parallel operation); alternatively for capturing one end position each for up to 12 mechanical dampers (up to 24 limit switches with parallel operation); complete with switching power supply unit and timer in a sheet steel casing, powder-coated RAL 9010 and with an acrylic glass window.

  • With pre-installed user software, ready to use
  • CAN bus interface for the connection of an external operating and display unit
  • Supply voltage: 230 V AC ±10 %
  • Power consumption: <150 mA (without external load)
  • Dimensions: 400 × 220 × 84 mm (B × H × T)
  • Installation: on a wall
  • Protection level: IP 40
  • Power supply: 230 V AC/50 Hz
  • Operating manual
  • Make: TROX GmbH or equivalent
  • Type: TNC-EC-Z0*

Accessories

Z01

Z02

Z03

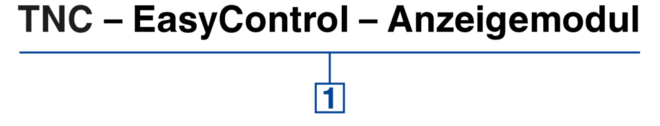

00132967_0


 Type
TNC-EasyControl display module
