Type RETROFIT

Rapid replacement without interruption of system operation

Control components for VAV terminal units as a replacement for previous types while the VAV terminal unit remains installed

  • Easy alternative to replacing a complete unit
  • Replacement in case of modernisation
  • Extended range of functions
  • Installation without interruption of system operation
  • For circular ducts of nominal sizes 100 to 400 mm


Retrofit parts kit consists of:

  • Control components Easy, Compact or Universal
  • Differential pressure sensor
  • Accessories

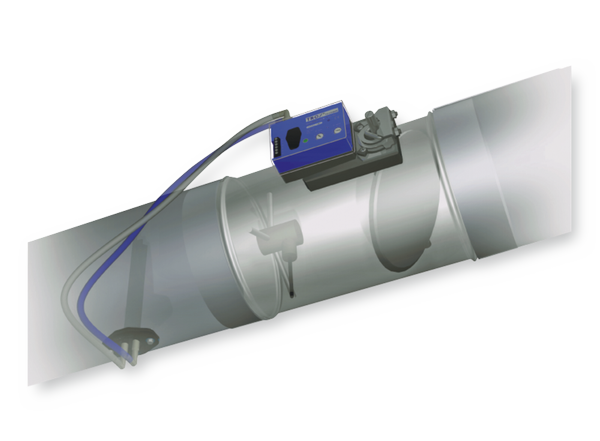

RETROFIT EasySet 00135081_0
  • Application
  • Description

Application

  • RETROFIT parts kits for the replacement or modernisation of control components in existing VAV terminal units
  • Ideal for cases where it is not possible to replace the entire VAV terminal unit
  • Replacement of faulty or dirty electronic or pneumatic units
  • Replacement of faulty units with airflow velocity sensors
  • Conversion of a constant air to a variable air volume system
  • Extension of range of functions to save energy, for more comfort, or for integration with the central BMS
  • No changes to ductwork necessary since the existing unit continues to be used

Special features

  • Quick replacement
  • Low modernisation cost, quick return on investment
  • No interruption of system operation
  • Low costs of disposal
  • Electronic compatibility remains unchanged

Nominal sizes

  • For circular ducts with nominal size 100, 112, 125, 140, 160, 180, 200, 225, 250, 280, 315, 355, or 400

Variants

  • EasySet
  • CompactSet
  • UniversalSet

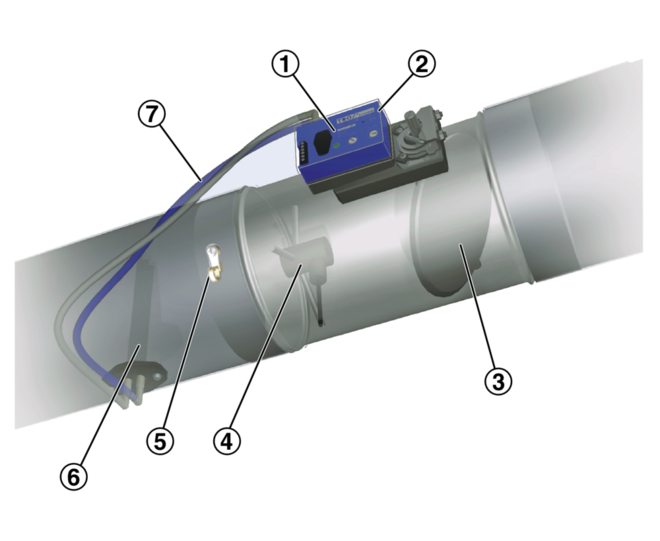

Parts and characteristics

  • Kits consist of control components and accessories
  • Electronic volume flow controller and actuator
  • Differential pressure sensor for volume flow rate measurement
  • Stickers for VAV terminal unit and for inspection or maintenance documents

Accessories

  • 1: Special adapter for EasySet and CompactSet
  • 2: Special adapter for UniversalSet

Technical information

Function, Technical data, Quick selection, Specification text, Order code, Produktbeziehungen

  • Technical data
  • Quick selection
  • Specification text
  • Order code

Easy controllers LMV-D3A and LMV-D3A-F

Supply voltage (AC)

24 V AC ± 20 %, 50/60 Hz

Supply voltage (DC)

24 V DC −10/+20 %

Power rating (AC)

5 VA max.

Power rating (DC)

2.5 W max.

Running time for 90°

110 – 150 s

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.5 mA max.

IEC protection class

III (protective extra-low voltage)

Protection level

IP 20

EC conformity

EMC according to 2014/30/EU


Compact controllers LMV-D3-MP and LMV-D3-MP-F

Supply voltage (AC)

24 V AC ± 20 %, 50/60 Hz

Supply voltage (DC)

24 V DC −10/+20 %

Power rating (AC)

4 VA max.

Power rating (DC)

2 W max.

Torque

5 Nm

Running time for 90°

110 – 150 s

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.5 mA max.

IEC protection class

III (protective extra-low voltage)

Protection level

IP 54

EC conformity

EMC according to 2014/30/EU

Weight

0.5 kg


Volume flow controller VRD3

Supply voltage (AC)

24 V AC ± 20 %, 50/60 Hz

Supply voltage (DC)

24 V DC −10/+20 %

Power rating (AC)

without actuator max. 3.5 VA

Power rating (DC)

without actuator max. 2 W

Setpoint value signal input

0 – 10 V DC, Ra > 100 kΩ

Actual value signal output

0 – 10 V DC, 0.5 mA max.

IEC protection class

III (protective extra-low voltage)

Protection level

IP 40

EC conformity

EMC according to 2014/30/EU

Weight

0.440 kg


Actuators NM24A-V and NM24A-V-ST

Supply voltage

from the controller

Power rating (AC)

6 VA max.

Power rating (DC)

3.5 W max.

Torque

10 Nm

Running time for 90°

150 s

Control signal

from the controller

IEC protection class

III (protective extra-low voltage)

Protection level

IP 54

EC conformity

EMC according to 2014/30/EU

Weight

0.710 kg


Criteria for the selection of the kit

  • The selection of the required RETROFIT parts kit depends on the existing control components
  • A further criterion is the voltage range of the existing system
  • The following overview shows which of the 3 RETROFIT kits are suitable to replace the existing control components and will provide the same range of functions
  • CompactSet and UniversalSet are suitable for all existing controllers and may even provide an extended range of functions
  • EasySet and CompactSet are suitable for ∅ 10 – 20 mm circular shafts and for 8 – 16 mm square shafts with the shaft end projecting at least 45 mm
  • UniversalSet is suitable for ∅ 8 – 20 mm circular shafts and for 8 – 18 mm square shafts with the shaft end projecting at least 25 mm
  • Other types of shafts require special adapters


Existing controllers VR1, VR2, VRD and VRD2 are combined with actuators KM24-I, SM24-I, NM24-V or SM24-V.

Setauswahl

Vorhandener Regler Vorhandener Regler Signalspannungsbereich RETROFIT-Lösung

VR1

– 0 – 10 V DC

– EasySet – CompactSet – UniversalSet

VR2

– 2 – 10 V DC

– CompactSet – UniversalSet

VRD

– 2 – 10 V DC

– EasySet (nur 0 – 10 V DC) – CompactSet – UniversalSet

VRD2

– 0 – 10 V DC – 2 – 10 V DC

– CompactSet – UniversalSet

NMV24-V

– 0 – 10 V DC

– EasySet – CompactSet – UniversalSet

NMV24-D

– 0 – 10 V DC

– EasySet – CompactSet – UniversalSet

NMV-D2

– 0 – 10 V DC – 2 – 10 V DC

– EasySet (nur 0 – 10 V DC) – CompactSet – UniversalSet

NMV-D2M

– 0 – 10 V DC – 2 – 10 V DC

– CompactSet – UniversalSet



EasySet

Parts kit for the modernisation of VAV terminal units in systems with circular ducts, for nominal sizes 100 to 400 mm, for supply or extract air.

Customers can easily set the volume flow rates on the Easy controller using potentiometers with percentage scales. No supply voltage and no additional devices are required.

A transparent protective cover prevents inadvertent resetting and provides general safety.

Clearly visible external indicator light for signalling the functions: Set, not set, no supply voltage.

Electrical connections with screw terminals. Double terminal for looping the supply voltage, i.e. for the simple connection of voltage transmission to the next controllers.

Voltage range for control signal and actual value signal 0 to 10 V DC. Possible override controls with external switches using volt-free contacts: CLOSED, OPEN, switching between Vmin and Vmax.

Same, linear characteristic for all sizes.

Special features

  • Quick replacement
  • Low modernisation cost, quick return on investment
  • No interruption of system operation
  • Low costs of disposal
  • Electronic compatibility remains unchanged

CompactSet

Parts kit for the modernisation of VAV terminal units in systems with circular ducts, for nominal sizes 100 to 400 mm, for supply or extract air.

Customers can easily set the volume flow rates on the Compact controller using the adjustment device or dedicated software.

Voltage range for control and actual value signal 0 – 10 or 2 – 10 V DC. Possible override controls with external switches using volt-free contacts: CLOSED, OPEN, switching between Vmin and Vmax.

Same, linear characteristic for all sizes.

Special features

  • Quick replacement
  • Low modernisation cost, quick return on investment
  • No interruption of system operation
  • Low costs of disposal
  • Electronic compatibility remains unchanged

UniversalSet

Parts kit for the modernisation of VAV terminal units in systems with circular ducts, for nominal sizes 100 to 400 mm, for supply or extract air.

Customers can easily set the volume flow rates on the Universal controller using the adjustment buttons on the controller, an adjustment device, or dedicated software.

Voltage range for control and actual value signal 0 – 10 or 2 – 10 V DC. Possible override controls with external switches using volt-free contacts: CLOSED, OPEN, switching between Vmin and Vmax.

Same, linear characteristic for all sizes.

Separate actuator.

Special features

  • Quick replacement
  • Low modernisation cost, quick return on investment
  • No interruption of system operation
  • Low costs of disposal
  • Electronic compatibility remains unchanged

00132697_0

 Parts kit
EasySet
CompactSet
UniversalSet



 Accessories
       No entry: none
       Special adapters are available for units with 8 x 8 mm square shafts or with short circular shafts
1       For EasySet and CompactSet
2       For UniversalSet



Variants, Accessories

  • Variants
  • Accessories

EasySet

Application

  • RETROFIT parts kit with Easy controller LMV-D3A

Special features

  • Quick replacement
  • Low modernisation cost, quick return on investment
  • No interruption of system operation
  • Low costs of disposal
  • Electronic compatibility remains unchanged

Parts and characteristics

  • Differential pressure sensor for the measurement of volume flows using the effective pressure principle
  • Easy controller combines volume flow controller and actuator in one casing
  • Tubes, small parts, operating manual, sticker

Installation and commissioning

  • Set the volume flow rate percentages on scaled potentiometers, without additional adjustment device
  • Start the functional test by pressing the function button
  • Green indicator light shows the operating state

CompactSet

Application

  • RETROFIT parts kit with Compact controller LMV-D3-MP

Special features

  • Quick replacement
  • Low modernisation cost, quick return on investment
  • No interruption of system operation
  • Low costs of disposal
  • Electronic compatibility remains unchanged

Parts and characteristics

  • Differential pressure sensor for the measurement of volume flows using the effective pressure principle
  • Compact controller combines volume flow controller and actuator in one casing
  • Tubes, small parts, operating manual, sticker

Installation and commissioning

  • Set the volume flow rates with an adjustment device or using an interface and dedicated software (to be supplied by others)
  • Set the operating mode 0 – 10 V DC or 2 – 10 V DC
  • Carry out a functional test using adjustment device, software or voltage measurement

UniversalSet

Application

  • RETROFIT parts kit with Universal controller VRD3 and actuator NM24A-V

Special features

  • Quick replacement
  • Low modernisation cost, quick return on investment
  • No interruption of system operation
  • Low costs of disposal
  • Electronic compatibility remains unchanged

Parts and characteristics

  • Differential pressure sensor for the measurement of volume flows using the effective pressure principle
  • Universal controller
  • Actuator
  • Tubes, small parts, operating manual, sticker

Installation and commissioning

  • Set the volume flow rate percentages on scaled potentiometers, without additional adjustment device
  • Alternatively, set the volume flow rates with an adjustment device or using an interface and dedicated software (to be supplied by others)
  • Set the operating mode 0 – 10 V DC or 2 – 10 V DC
  • Carry out a functional test using adjustment device, software or voltage measurement

Achsaufnahme
